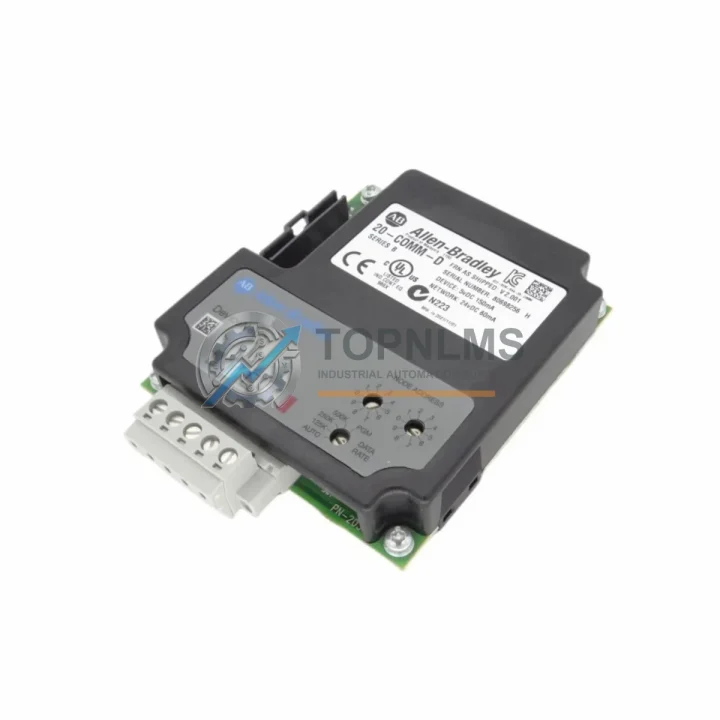

Allen-Bradley 20-COMM-D Ruggedized ControlNet Adapter Module

Product Overview

Allen-Bradley 20-COMM-D Ruggedized ControlNet Adapter Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 20-COMM-D is a high-performance ControlNet communication adapter engineered for the PowerFlex DPI drive platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity water treatment plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers deterministic, real-time network communication without compromise. Its robust construction and proven compatibility with Rockwell Automation’s control architecture make it an essential component for engineers who cannot afford communication failures in continuous production environments.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Rockwell Automation control architecture, the 20-COMM-D does not operate in isolation — it is the communication backbone that ties the drive layer to the controller layer. When paired with a ControlLogix L7x or CompactLogix L3x series PLC, the adapter enables deterministic I/O and explicit messaging across the ControlNet trunk, ensuring that speed references, torque commands, and fault status are exchanged with sub-millisecond reliability. This is especially critical in applications where a communication dropout could trigger an unplanned shutdown or, worse, a safety event.

The 20-COMM-D integrates seamlessly with the 1756-CNB or 1756-CNBR ControlNet bridge modules installed in the ControlLogix chassis, forming a redundant or non-redundant network segment depending on the system design. For installations requiring additional I/O at the field level, the 1794-ACN15 FLEX I/O ControlNet adapter can be deployed alongside the 20-COMM-D on the same network segment, extending digital and analog I/O to remote panels without additional cabling infrastructure.

In high-vibration environments such as compressor stations or rolling mills, the PowerFlex 700 drive equipped with the 20-COMM-D adapter is typically installed within a NEMA 12 or IP54-rated control cabinet alongside 1492-J series terminal blocks and 700-CF series control relays. These components work together to ensure that signal integrity is maintained even when the cabinet is subject to continuous mechanical stress. The 20-COMM-D’s DPI connector is mechanically secured to the drive’s peripheral port, eliminating the risk of intermittent contact caused by vibration.

For facilities operating in classified hazardous areas — such as Zone 1 or Zone 2 gas environments in petrochemical plants — the 20-COMM-D is typically deployed in conjunction with intrinsically safe barriers or purge-and-pressurization systems (e.g., Pepperl+Fuchs or R. STAHL enclosure solutions) to maintain compliance with ATEX or IECEx requirements. The adapter’s low power draw via the DPI bus minimizes heat generation inside the enclosure, supporting thermal management in sealed cabinets.

When a plant-wide migration from DeviceNet to ControlNet is underway, the 20-COMM-D serves as the target adapter for drives previously running the 20-COMM-DN DeviceNet adapter. The physical form factor and DPI interface are identical, making the swap a straightforward field replacement that requires only a node address reconfiguration and an RSNetWorx for ControlNet schedule update — no drive parameter re-entry is needed if the parameter file is backed up via DriveExplorer or Studio 5000 Logix Designer.

Application in Critical Infrastructure

In oil and gas upstream operations, the 20-COMM-D is deployed on electric submersible pump (ESP) variable speed drive systems, where it provides real-time speed and current feedback to the surface SCADA controller over ControlNet. The deterministic scan time of ControlNet — typically 5 ms or less — ensures that the controller can respond to downhole anomalies before they escalate into equipment damage or production loss. Offshore platform environments, with their combination of salt-laden air, constant vibration from wave motion, and strict explosion-proof requirements, represent one of the most demanding use cases for this adapter.

In underground mining operations, the 20-COMM-D is used on conveyor belt drive systems where PowerFlex 700H drives control multi-hundred-kilowatt motors. The adapter’s ability to maintain network communication in the presence of high-voltage switching transients from nearby medium-voltage switchgear — a common source of EMI in mine electrical rooms — is a key reason it is specified by mining OEMs and system integrators. The ControlNet coaxial cable infrastructure used in these installations also provides inherent noise immunity compared to twisted-pair alternatives.

Municipal water treatment facilities rely on the 20-COMM-D to control pump and blower drives in environments where condensation, chemical vapors, and continuous 24/7 operation are the norm. The adapter’s wide humidity tolerance and its ability to operate without interruption across seasonal temperature swings make it a preferred choice for water authority engineers who prioritize long mean-time-between-failure (MTBF) figures and minimal maintenance intervention. Integration with the plant’s ControlLogix-based SCADA system via ControlNet allows operators to monitor drive health parameters — including output current, DC bus voltage, and fault history — from the central control room without requiring a field visit.

In steel and aluminum smelting facilities, the 20-COMM-D supports drives controlling rolling mill motors, ladle transfer cars, and fume extraction fans. These applications are characterized by extreme thermal cycling, heavy particulate contamination, and powerful electromagnetic fields from arc furnaces and induction heaters. The adapter’s industrial-grade design, combined with proper cabinet filtration and cable shielding practices, ensures reliable communication even in these extreme conditions. Planned preventive maintenance programs at major steel producers typically include a spare 20-COMM-D in the critical spares inventory, with a recommended replacement interval aligned to the drive’s major service cycle.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 20-COMM-D?
Every 20-COMM-D shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers functional defects identified under normal operating conditions. In the event of a warranty claim, TOPNLMS will provide a replacement unit or a full refund, subject to inspection. Our warranty program is designed to give procurement engineers and plant maintenance managers the confidence to source critical spare parts without risk.

Q2: How is each unit tested before shipment?
All 20-COMM-D units undergo a pre-shipment functional verification process at our Xiamen facility. This includes power-on self-test confirmation, DPI communication handshake verification, and visual inspection for physical integrity. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for customers with quality management system (QMS) requirements.

Q3: Is the 20-COMM-D compatible with all PowerFlex drive generations?
The 20-COMM-D is compatible with all PowerFlex drives equipped with the Drive Peripheral Interface (DPI), including the PowerFlex 70, PowerFlex 700, PowerFlex 700S, and PowerFlex 700H. It is not compatible with PowerFlex 4, 40, or 400 series drives, which use the Human Interface Module (HIM) port rather than DPI. If you are unsure about compatibility with your specific drive catalog number, contact our technical team at [email protected] before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the 20-COMM-D?
Yes. TOPNLMS maintains a dedicated inventory of Allen-Bradley 20-COMM series adapters to support both emergency replacement orders and planned maintenance procurement programs. We can provide blanket purchase order arrangements, advance stock reservation, and priority shipping for customers with critical infrastructure dependencies. Lead times for standard orders are typically 3–7 business days for in-stock units, with express air freight options available for urgent requirements.
