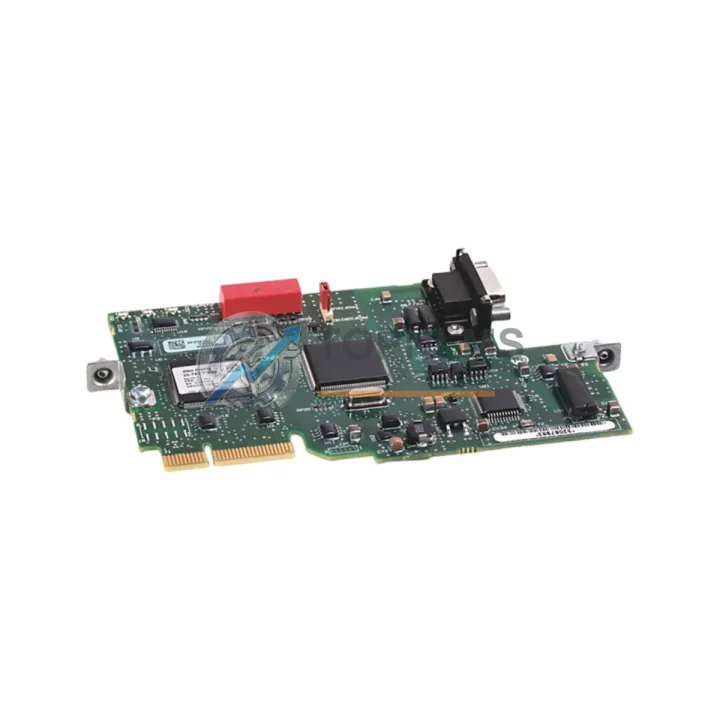

Allen-Bradley 20-750-PBUS Ruggedized PROFIBUS DP Module

Product Overview

Allen-Bradley 20-750-PBUS Ruggedized PROFIBUS DP Module for Harsh Industrial Environments

The Allen-Bradley 20-750-PBUS is a PROFIBUS DP communication option module engineered specifically for the PowerFlex 750 series AC drives. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers uncompromising fieldbus communication performance where it matters most. Its ruggedized construction and Rockwell Automation’s proven engineering heritage make it a trusted backbone component for plant-wide automation architectures that cannot afford downtime.

In continuous production environments such as oil and gas pipelines, steel rolling mills, water treatment facilities, and chemical processing plants, communication integrity between the drive and the control system is non-negotiable. The 20-750-PBUS slots directly into the PowerFlex 755 and PowerFlex 753 option bay, establishing a high-speed PROFIBUS DP network link that enables real-time parameter read/write, drive status monitoring, and fault diagnostics — all without interrupting the main power circuit. This plug-in architecture eliminates the need for external communication gateways, reducing panel wiring complexity and potential failure points inside the control cabinet.

The module’s electromagnetic interference (EMI) immunity is a critical advantage in heavy industrial settings. In environments where large motors, welding equipment, and high-frequency inverters generate significant electrical noise, the 20-750-PBUS maintains stable PROFIBUS DP communication at baud rates up to 12 Mbps. This ensures that the host PLC or DCS — whether a Rockwell Automation ControlLogix, CompactLogix, or a third-party PROFIBUS master — receives accurate, uninterrupted data from the drive at all times.

When integrated into a broader automation system, the 20-750-PBUS works in concert with a full ecosystem of compatible components. The PowerFlex 755 drive itself pairs naturally with the 20-750-PBUS alongside other option modules such as the 20-750-DNET (DeviceNet) or 20-750-ENETR (EtherNet/IP) modules, allowing engineers to build multi-protocol communication architectures within a single drive platform. On the control side, Rockwell Automation 1756-PROFIBUS scanner cards installed in ControlLogix chassis serve as the PROFIBUS DP master, coordinating cyclic data exchange with the 20-750-PBUS at the drive end. For distributed I/O applications, 1734 POINT I/O modules and 1769 CompactLogix I/O modules frequently share the same control cabinet, and the reliable fieldbus link provided by the 20-750-PBUS ensures that drive commands and feedback signals are synchronized with the broader I/O scan cycle.

In safety-critical applications, the 20-750-PBUS is often deployed alongside Allen-Bradley GuardLogix safety controllers and 440C-CR30 safety relay modules, where the PROFIBUS DP network carries non-safety process data while dedicated safety circuits handle SIL-rated functions independently. This separation of safety and standard communication layers is a best practice in machinery safety design and is fully supported by the PowerFlex 750 platform architecture. Additionally, 1606-XLP industrial power supplies and 1783-series managed Ethernet switches are commonly found in the same control panel, providing the stable DC power and network infrastructure that the drive and its option modules depend on.

For terminal connectivity and signal integrity within the control cabinet, 1492-series terminal blocks and 1492-CABLE pre-wired cable assemblies are frequently used to connect the PROFIBUS DP trunk cable to the drive’s option module port, ensuring clean, vibration-resistant terminations that comply with PROFIBUS International wiring standards. Proper cable shielding and termination resistors at both ends of the PROFIBUS segment are essential in electrically noisy environments, and the 20-750-PBUS is fully compatible with standard PROFIBUS DP cable assemblies rated for industrial use.

From a procurement and lifecycle management perspective, the 20-750-PBUS represents a high-value spare parts investment. PowerFlex 750 series drives are deployed globally across thousands of industrial facilities, and maintaining a stock of critical option modules — including communication, I/O, and encoder feedback modules — is a standard practice for minimizing mean time to repair (MTTR) in the event of a module failure. TOPNLMS maintains verified inventory of the 20-750-PBUS, with each unit undergoing functional inspection prior to shipment. Orders are processed promptly, with international shipping available to support global MRO and project procurement requirements.

Rugged Specifications Table

Comprehensive Protection Solutions

The 20-750-PBUS is most effective when deployed as part of a fully integrated protection and control architecture. In a typical heavy industrial control cabinet, the PowerFlex 755 drive equipped with the 20-750-PBUS communicates upstream to a ControlLogix 1756-L85E controller via a 1756-PROFIBUS scanner module. Downstream, the drive controls high-power motors in pumping stations, compressor trains, or conveyor systems. To protect the drive and the communication module from power quality issues, 1606-XLP24100E industrial power supplies provide clean, regulated 24 VDC to the control circuit, while surge protection devices on the incoming AC supply prevent transient voltage spikes from reaching the drive’s sensitive electronics.

In applications where the PROFIBUS DP network spans long distances across a plant floor — such as in a water treatment facility with distributed pump stations — PROFIBUS DP repeaters and optical fiber converters are used to extend the network reach and provide galvanic isolation between segments, further protecting the 20-750-PBUS from ground loop interference. At the cabinet level, 1492-J4 terminal blocks provide organized, vibration-resistant termination points for field wiring, and 1783-BMS10CGL managed switches handle any EtherNet/IP traffic running in parallel with the PROFIBUS DP network.

For applications requiring functional safety, the PowerFlex 755 drive with the 20-750-PBUS can be integrated with Allen-Bradley 440R-S12R2 safety relay modules and GuardLogix 5580 safety controllers to implement Safe Torque Off (STO) and Safe Stop 1 (SS1) functions in compliance with IEC 62061 and ISO 13849. This makes the 20-750-PBUS a suitable component in SIL 2 and PLd-rated machine safety architectures, particularly in press lines, robotic cells, and automated guided vehicle (AGV) systems.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the Allen-Bradley 20-750-PBUS is deployed in electric submersible pump (ESP) variable speed drive panels, gas compressor motor control centers (MCCs), and pipeline booster station control systems. The PROFIBUS DP network enables the SCADA system to monitor drive parameters — including output frequency, motor current, DC bus voltage, and fault codes — in real time, allowing operators to detect developing faults before they escalate into unplanned shutdowns. In offshore platform environments, where the combination of salt air, humidity, and vibration creates an extremely hostile operating condition, the PowerFlex 755 drive with the 20-750-PBUS is typically installed in NEMA 4X or IP66-rated enclosures with positive-pressure purging systems to maintain a clean internal environment.

In mining operations — including underground coal mines, open-pit copper mines, and hard rock gold mines — the 20-750-PBUS enables centralized control of conveyor belt drives, crusher motor drives, and ventilation fan drives from a surface control room. The PROFIBUS DP network’s deterministic communication cycle ensures that drive commands are executed within a predictable time window, which is critical for coordinating the speed of multiple conveyor segments in a long-distance overland conveyor system. In these applications, the ability to perform remote parameter changes and firmware diagnostics via the PROFIBUS DP link — without requiring a technician to physically access the drive panel — significantly reduces maintenance costs and improves safety by minimizing personnel exposure to hazardous areas.

In power generation facilities — including thermal power plants, hydroelectric stations, and wind farm substations — the 20-750-PBUS is used in boiler feed pump drives, cooling water pump drives, and auxiliary motor control systems. The module’s compatibility with the PowerFlex 750 platform’s advanced diagnostic features, including predictive maintenance data logging and thermal model outputs, allows plant engineers to integrate drive health data into their plant asset management systems via the PROFIBUS DP network, supporting condition-based maintenance strategies that extend equipment life and reduce unplanned outages.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the 20-750-PBUS?
All 20-750-PBUS units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement or full refund. Our warranty reflects our confidence in the quality of every unit we ship.

Q2: How is each unit tested before shipment?
Every 20-750-PBUS undergoes a functional inspection process prior to dispatch. This includes visual inspection for physical damage, verification of connector integrity, and where applicable, power-on functional testing to confirm the module’s communication interface is operational. Units that do not pass inspection are not shipped.

Q3: Is the 20-750-PBUS compatible with all PowerFlex 750 series drives?
The 20-750-PBUS is compatible with the PowerFlex 753 and PowerFlex 755 drives, which share the PowerFlex 750 option module architecture. It is not compatible with the PowerFlex 700 or PowerFlex 40 series. If you are unsure about compatibility with your specific drive firmware version or hardware series, please contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the 20-750-PBUS?
Yes. TOPNLMS maintains ongoing inventory of the 20-750-PBUS and other PowerFlex 750 option modules to support MRO procurement, project commissioning, and emergency replacement requirements. We can provide quantity pricing for bulk orders and support scheduled delivery programs for customers with planned maintenance shutdowns. Contact us at [email protected] or +86 18359293191 to discuss your requirements.
