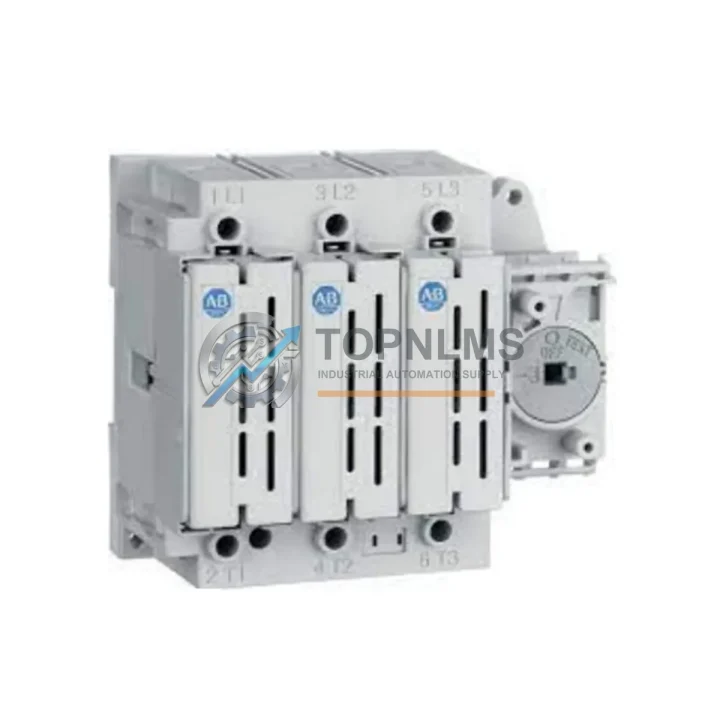

Allen-Bradley 194R-J400-1753 Replacement for 194R TSC Series

Product Overview

Allen-Bradley 194R-J400-1753 Replacement for 194R TSC Series: Smooth Transition & Legacy System Compatibility

The Allen-Bradley 194R-J400-1753 is a 30A, 600V fusible disconnect switch from the 194R TSC Series, widely deployed in motor control centers (MCCs), control panels, and machine-level power distribution systems across manufacturing, oil & gas, water treatment, and process automation facilities. As this model reaches end-of-life or becomes increasingly difficult to source through standard distribution channels, plant engineers and procurement teams face the challenge of maintaining system uptime while transitioning to a verified replacement or upgrade solution.

TOPNLMS supplies the 194R-J400-1753 as a direct replacement unit — tested, inspected, and shipped with a 12-month warranty. Whether you are performing a like-for-like swap in an existing panel or planning a broader control system modernization, this guide covers everything you need to know about compatibility, wiring, physical fit, and procurement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful replacement of the 194R-J400-1753 rarely happens in isolation. In most MCC and control panel environments, this disconnect switch operates alongside a broader set of Allen-Bradley and Rockwell Automation components. During a planned maintenance window or emergency swap, engineers typically also inspect or replace adjacent devices to prevent cascading failures and extend the service interval of the entire panel.

In motor control applications, the 194R-J400-1753 is commonly installed upstream of a PowerFlex 40 or PowerFlex 400 variable frequency drive, providing the required isolation point before the drive’s input terminals. If the drive itself is being upgraded as part of the same project, the PowerFlex 525 is a widely adopted successor that retains similar input power requirements and supports EtherNet/IP communication for integration with ControlLogix or CompactLogix PLCs.

On the control side, many legacy systems using this disconnect switch are governed by older SLC 500 or MicroLogix 1100 controllers. Migration projects often move these to a CompactLogix L33ER or L36ERM, which supports the same I/O architecture but adds modern Ethernet connectivity and Studio 5000 programming. The disconnect switch itself requires no changes during this controller migration — its hardwired nature means it is transparent to the PLC program.

For I/O expansion within the same panel, 1769-IQ16 digital input modules and 1769-OB16 digital output modules from the Compact I/O family are frequently used alongside the 194R series disconnects to monitor door interlock status, auxiliary contact state, and fault signals. These modules mount directly on the CompactLogix backplane and require no additional communication hardware.

Power distribution within the cabinet is typically handled by a 1606-XLP power supply or equivalent 24VDC rail-mount supply, which feeds the control circuit and auxiliary contacts of the 194R-J400-1753. Verifying the power supply’s output capacity before replacement ensures the auxiliary contact circuit remains within specification after the swap.

If the panel includes a PanelView Plus 7 HMI for local operator control, the disconnect switch status — read through the auxiliary contact wired to a digital input — can be displayed as a graphical indicator without any software changes, provided the I/O address mapping is preserved during the replacement.

For facilities running DeviceNet or ControlNet legacy networks, the 194R-J400-1753 itself does not participate in the network, but adjacent 1756-DNB DeviceNet Bridge modules or 1756-CNB ControlNet Bridge modules in the ControlLogix chassis may be reviewed during the same maintenance window to ensure network topology integrity is maintained after any panel reconfiguration.

Finally, if the project scope includes replacing the entire motor starter assembly, the 194E-A40-1753 Electronic Motor Protector from the same 194 family offers an integrated solution that combines overload protection and disconnect functionality, reducing the component count in space-constrained panels.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring when replacing the 194R-J400-1753?
A: Yes. The 194R TSC Series uses standard screw terminals with the same pitch and torque specifications as earlier 194R variants. Existing wire gauges rated for 30A at 600V are fully compatible. Label and photograph all connections before removal to ensure accurate reinstallation.

Q: Does the replacement require any PLC program changes?
A: No. The 194R-J400-1753 is a hardwired disconnect device and does not appear in the PLC program. If auxiliary contacts are wired to digital inputs for status monitoring, the I/O address and logic remain unchanged as long as the wiring is restored to the same terminals.

Q: Is the physical footprint identical to the unit being replaced?
A: Yes. All 194R TSC Series units share the same DIN rail mounting footprint and panel cutout dimensions. No cabinet modification, re-drilling, or bracket adaptation is required for a like-for-like swap.

Q: What communication protocols are affected during replacement?
A: None. The 194R-J400-1753 is a passive hardwired component. It does not participate in EtherNet/IP, DeviceNet, ControlNet, or any other industrial protocol. Network communication is unaffected during the swap.

Q: How do I verify the auxiliary contact configuration before ordering?
A: The “TSC” suffix in the part number indicates a specific auxiliary contact configuration. Check the existing unit’s nameplate and wiring diagram to confirm the contact arrangement (NO/NC) matches your control circuit requirements before placing the order.

Q: What is the recommended procedure to minimize downtime during replacement?
A: Pre-stage the replacement unit, verify fuse ratings, photograph existing wiring, isolate upstream power, swap the unit, restore wiring per documentation, and perform a functional test of the auxiliary contact circuit before returning the system to service. Total replacement time for a trained technician is typically under 30 minutes.

Warranty Assurance

Every 194R-J400-1753 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point inspection that includes visual examination, terminal integrity verification, fuse holder function check, and auxiliary contact continuity testing where applicable.

If a unit is found to be defective within the warranty period, TOPNLMS provides a full replacement at no additional cost. Our technical support team is available to assist with installation questions, compatibility verification, and documentation requests throughout the warranty period.

All units are packaged in anti-static, impact-resistant packaging and shipped via tracked international courier from Xiamen, China. Standard lead time for in-stock units is 3–7 business days to most destinations. Expedited shipping options are available upon request.

For bulk procurement, OEM replacement programs, or MRO standing orders, please contact our sales team directly to discuss pricing, lead times, and quality documentation (test reports, certificates of conformance).
