Allen-Bradley 193-ESM-IG-30A-E3T Replacement for E3T Series

Product Overview

Allen-Bradley 193-ESM-IG-30A-E3T Replacement for E3T Series: Smooth Transition & Legacy System Compatibility

When your existing Allen-Bradley E3T Series soft starter reaches end-of-life or becomes unavailable through standard distribution channels, the 193-ESM-IG-30A-E3T Electronic Overload/Soft Starter Module remains one of the most sought-after replacement components in industrial motor control applications. Designed for seamless integration into existing MCC (Motor Control Center) panels, control cabinets, and DeviceNet-based automation architectures, this module allows facilities engineers and maintenance teams to execute a smooth, low-risk migration without redesigning the control system from the ground up.

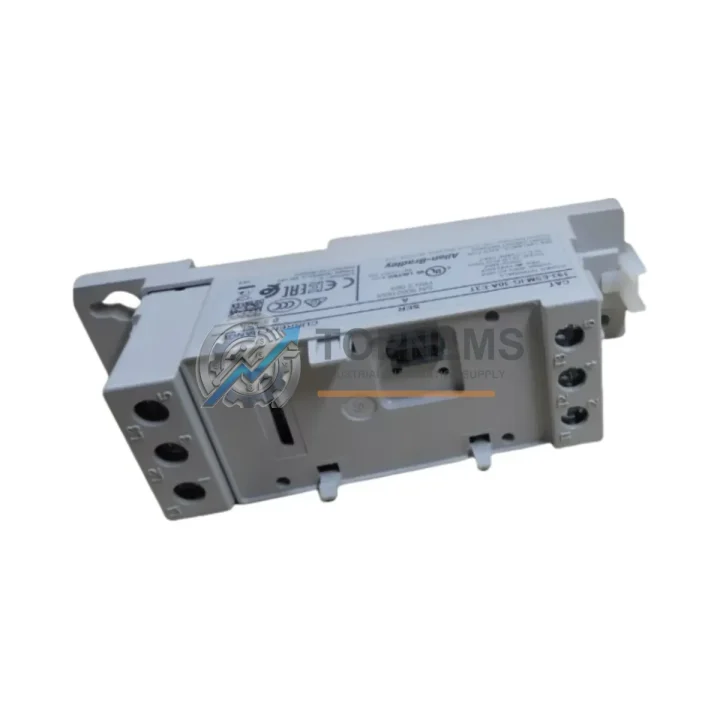

The 193-ESM-IG-30A-E3T is a 30A-rated smart motor controller module engineered for the Allen-Bradley E3T platform. It provides integrated overload protection, soft-start functionality, and real-time motor diagnostics — all within the compact form factor of the original E3T chassis. For plants running legacy Rockwell Automation control architectures, this module slots directly into existing E3 or E3 Plus base units, preserving original wiring terminations, DIN rail mounting positions, and DeviceNet node addressing without requiring panel re-engineering.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy motor control system to the 193-ESM-IG-30A-E3T rarely involves a single component swap. In practice, field engineers encounter a cluster of interdependent components that must be evaluated and, in many cases, simultaneously upgraded to ensure system stability and communication integrity.

For plants operating on a DeviceNet backbone, the 1769-SDN DeviceNet Scanner Module is frequently reviewed alongside the E3T module replacement, as scanner firmware and node table configurations must reflect the new module’s EDS parameters. Similarly, if the control system relies on a 1756-DNB ControlLogix DeviceNet Bridge, the bridge’s node mapping should be verified against the 193-ESM-IG-30A-E3T’s device profile to prevent communication faults during commissioning.

In MCC panels where multiple motor starters share a common 24VDC rail, the 1606-XLP power supply module is often inspected to confirm adequate current capacity after adding the E3T module’s control circuit load. Where the original panel used a 193-EC*B base unit with a separate overload relay, the transition to the integrated 193-ESM-IG-30A-E3T eliminates the need for a standalone relay, freeing up panel space and simplifying the wiring diagram.

For facilities that also manage HMI-level motor status visualization, the 2711P PanelView Plus 7 terminal connected via DeviceNet or EtherNet/IP may require tag remapping in FactoryTalk View Studio to align with the new module’s diagnostic data objects. In parallel, if the plant uses a 22-COMM-D DeviceNet Adapter on a PowerFlex 40 or PowerFlex 400 drive in the same control cabinet, the adapter’s node address and baud rate settings should be confirmed to avoid bus conflicts after the E3T module is installed.

Where signal isolation is required between the E3T module’s analog output and a legacy DCS input card, a signal isolator / loop-powered transmitter (such as those in the 931S or 932S series) is commonly inserted to protect the DCS analog input from ground loops. Additionally, for systems that use a 1492-IFM interface module for terminal block wiring consolidation, the IFM wiring layout should be cross-referenced against the E3T base unit’s terminal map before finalizing the retrofit.

Finally, if the upgrade scope includes replacing the programmable controller itself, the 1769-L30ER CompactLogix 5370 controller is a widely adopted platform for modernizing legacy SLC 500 or MicroLogix-based motor control programs, and its Add-On Instructions (AOIs) for E3T motor management are available directly from Rockwell Automation’s Sample Code Library.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring when replacing a 193-EC*B with the 193-ESM-IG-30A-E3T?
A: In most cases, yes. The E3T base unit preserves the same terminal block layout as the E3 Plus base, so control wiring (24VDC, DeviceNet, and motor current sensing leads) can typically be reconnected without modification. Always verify against the specific base unit wiring diagram in publication 193-UM002.

Q: Do I need to update my RSLogix / Studio 5000 program after the swap?
A: If the replacement module uses the same EDS file and device profile as the original, no program changes are required. If the EDS version differs, import the updated EDS into RSNetWorx for DeviceNet and re-download the node configuration. The ladder logic AOI for E3T motor management remains unchanged.

Q: Is the DeviceNet node address preserved after module replacement?
A: The node address is stored in the base unit, not the module itself. Replacing only the 193-ESM-IG-30A-E3T module leaves the base unit’s node address intact, eliminating the need to reconfigure the DeviceNet scanner’s node table.

Q: What if my control cabinet has limited space for the new module?
A: The 193-ESM-IG-30A-E3T shares the same physical footprint as the original E3T module. No additional panel space is required. If the legacy installation used a separate overload relay in addition to the starter, removing that relay after integrating the E3T’s built-in overload function may actually free up DIN rail space.

Q: How do I handle the soft-start ramp configuration during commissioning?
A: Ramp time, current limit, and kick-start parameters are configured via RSNetWorx for DeviceNet or through the module’s front-panel DIP switches. Default factory settings provide a conservative 10-second ramp suitable for most centrifugal pump and fan applications. Adjust parameters based on the motor’s full-load current and the mechanical load’s inertia characteristics.

Q: Can this module replace a discontinued 193-EECB or 193-EECF model?
A: The 193-ESM-IG-30A-E3T is the designated successor for the E3T platform and is compatible with E3T base units. For E3 or E3 Plus base units (193-EC*B / 193-EC*C), verify base unit compatibility before ordering, as the E3T module requires an E3T-compatible base.

Warranty Assurance

Every 193-ESM-IG-30A-E3T unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection covering power-on self-test, DeviceNet communication verification, overload trip threshold calibration, and soft-start ramp output validation. Units that do not pass inspection are quarantined and never shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the customer’s discretion. Our after-sales response target is within 24 hours of a warranty claim submission. For urgent production-line situations, expedited replacement dispatch is available upon request.

Stock is maintained in our Xiamen warehouse and is available for immediate dispatch. Standard international shipping lead time is 3–7 business days via DHL, FedEx, or UPS, with express options available for critical downtime situations. All units are shipped with original manufacturer packaging, a certificate of conformance, and a TOPNLMS inspection report.

For procurement inquiries, bulk pricing, or technical pre-sales consultation, contact our industrial automation team directly.
