Allen-Bradley 1794-VHSC Ruggedized High Speed Counter Module

Product Overview

Allen-Bradley 1794-VHSC Ruggedized High Speed Counter Module: Industrial Resilience for Harsh Environments

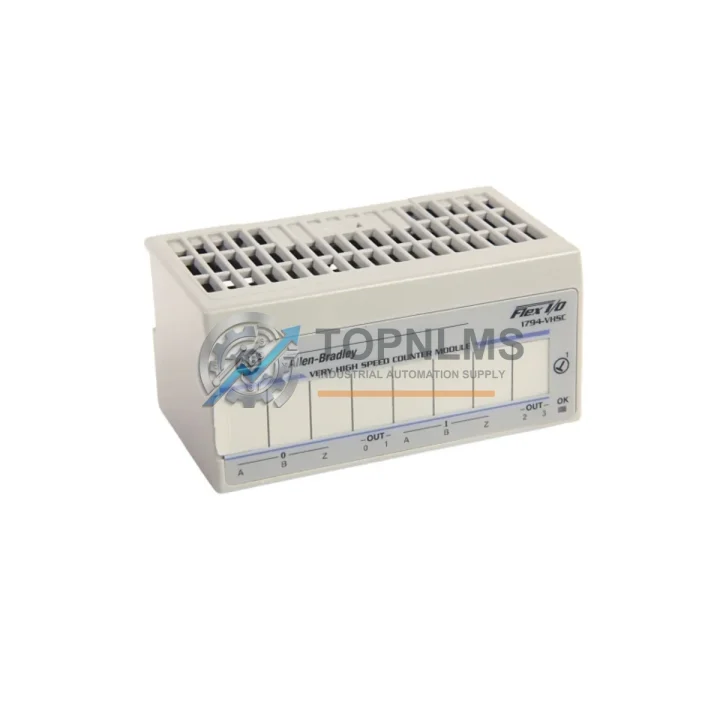

The Allen-Bradley 1794-VHSC Very High Speed Counter Module is engineered for mission-critical industrial automation applications where signal accuracy, electromagnetic immunity, and continuous uptime are non-negotiable. Designed for the FLEX I/O platform, this module delivers high-frequency pulse counting and encoder interface capabilities in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI). Whether deployed on a continuous production line, a heavy-industry press floor, or a hazardous-area control cabinet, the 1794-VHSC maintains deterministic performance where lesser components fail.

At TOPNLMS, we stock the 1794-VHSC as a verified genuine Allen-Bradley component, fully tested prior to dispatch and backed by a 12-month replacement warranty. Our inventory is maintained to support urgent spare-parts requirements, planned maintenance shutdowns, and long-term procurement contracts for industrial facilities across oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing sectors.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-VHSC does not operate in isolation — it is a precision sensing node within a broader control architecture that demands equally robust supporting components. In a typical FLEX I/O control cabinet, the module interfaces directly with a 1794-ADN FLEX I/O DeviceNet Adapter or a 1794-AENT EtherNet/IP Adapter, which handles all upstream communication to the PLC backplane. These adapters are engineered to the same environmental standards as the 1794-VHSC, ensuring that high-speed counter data is transmitted without latency or packet loss even in electrically noisy environments.

On the power side, the FLEX I/O system relies on a stable 24 VDC supply. Industrial-grade power supplies such as the Allen-Bradley 1606-XLP series provide the regulated, low-ripple DC power that high-speed counter modules require for accurate edge detection. Voltage transients or supply noise can introduce false counts; a properly specified power supply is therefore a critical companion component.

For applications where the 1794-VHSC monitors encoder feedback from servo axes or variable-speed drives, it is commonly paired with Allen-Bradley PowerFlex 525 or PowerFlex 755 variable frequency drives (VFDs). These drives generate the motion that the 1794-VHSC measures, and their integrated encoder feedback ports must be correctly matched to the counter module’s input specifications to ensure signal integrity across the full speed range.

Safety-critical installations — particularly in oil & gas and mining — often incorporate Allen-Bradley 1791DS GuardLink Safety I/O modules alongside the 1794-VHSC. While the counter module handles high-speed process feedback, the safety I/O layer manages emergency stop circuits, light curtain interfaces, and safety relay outputs. The Allen-Bradley MSR127RP safety relay is a typical companion in such architectures, providing dual-channel monitoring of safety devices with forced-guided contacts.

Communication integrity across the plant floor is maintained through 1756-EN2T EtherNet/IP communication modules installed in the ControlLogix chassis, ensuring that counter data from the FLEX I/O nodes reaches the supervisory control layer with deterministic timing. In legacy installations, 1747-SDN SLC 500 DeviceNet Scanner modules serve the same bridging function for older SLC-based control systems.

Terminal connectivity within the control cabinet is handled by Allen-Bradley 1492-series wiring systems, including pre-wired interface cables and terminal blocks that simplify field wiring to the 1794-VHSC’s input terminals. Proper termination reduces contact resistance and eliminates intermittent signal faults that can corrupt high-speed count data in vibration-prone installations.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1794-VHSC is deployed to monitor turbine shaft speeds, pipeline pig tracking systems, and wellhead pump stroke counters. These applications demand microsecond-level timing accuracy and immunity to the high levels of RF interference generated by variable-speed pump drives and wireless communication equipment on remote wellpads. The module’s differential input capability provides the common-mode noise rejection necessary for reliable operation over long cable runs in such environments.

In underground mining, the 1794-VHSC monitors conveyor belt speed and slip detection systems, hoist encoder feedback, and crusher rotor RPM. The combination of mechanical vibration from heavy machinery, coal or mineral dust ingress into cable conduits, and the electromagnetic environment created by large DC drive systems makes this one of the most demanding applications for any I/O module. The FLEX I/O platform’s modular architecture allows the 1794-VHSC to be installed in sealed, pressurized control enclosures that meet the environmental requirements of underground installations.

In power generation facilities — including thermal, hydro, and wind — the module provides turbine speed monitoring, generator synchronization feedback, and cooling pump flow measurement. Grid-connected generation assets require continuous, uninterrupted monitoring; any counter module failure that causes a spurious trip or missed overspeed event carries significant operational and safety consequences. The 1794-VHSC’s proven reliability in these environments makes it a preferred choice for both OEM system builders and plant maintenance teams managing long-term spare-parts inventories.

In water and wastewater treatment, the module tracks pump impeller speeds, flow meter pulse outputs, and UV disinfection system rotation counts. Treatment facilities operate continuously, and unplanned downtime for I/O module replacement can have regulatory compliance implications. Maintaining a stocked spare of the 1794-VHSC — available from TOPNLMS with same-day dispatch capability — is a standard risk-mitigation practice for facility maintenance managers.

In metallurgical and steel processing plants, the 1794-VHSC monitors rolling mill roll speeds, coiler tension feedback, and ladle transfer car positioning. The thermal radiation, scale dust, and high-current bus bars in these environments create some of the most severe EMI conditions in industrial automation. The module’s robust input filtering and shielded signal architecture maintain count accuracy even in close proximity to large induction furnaces and high-current rectifier systems.
