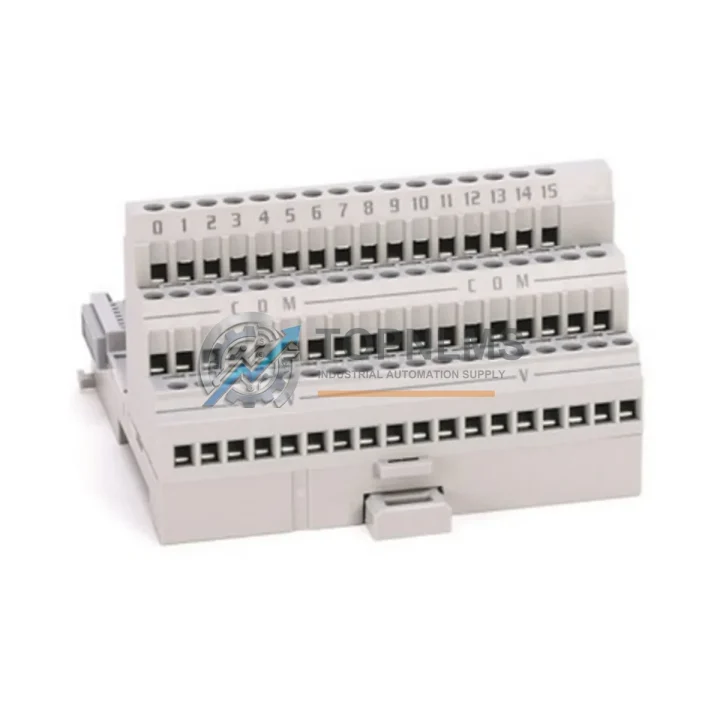

Allen-Bradley 1794-TB3S Ruggedized Terminal Base Module for Harsh Environments

Product Overview

Allen-Bradley 1794-TB3S Ruggedized Terminal Base Module for Harsh Environments

The Allen-Bradley 1794-TB3S is a 3-wire screw terminal base unit engineered for the FLEX I/O distributed I/O platform — one of Rockwell Automation’s most trusted modular control architectures deployed across demanding industrial environments worldwide. Designed to interface directly with FLEX I/O adapter modules and I/O modules, the 1794-TB3S provides a robust, field-proven wiring termination point that maintains signal integrity and system continuity even under the most punishing operating conditions: sustained high ambient temperatures, high-humidity enclosures, airborne particulate contamination, mechanical vibration from heavy rotating equipment, and pervasive electromagnetic interference generated by variable frequency drives, large motor starters, and high-current bus systems.

In continuous production environments — petrochemical processing lines, mineral extraction facilities, municipal water treatment plants, steel rolling mills, and power generation substations — unplanned I/O downtime is not merely an inconvenience; it is a safety and financial liability. The 1794-TB3S addresses this risk by providing a mechanically stable, electrically reliable termination base that accepts field wiring independently of the I/O module itself. This wiring-base separation architecture means that during scheduled maintenance or emergency module replacement, field wiring remains undisturbed and correctly terminated, dramatically reducing re-commissioning time and the risk of mis-wiring errors that can compromise machine safety or process integrity.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-TB3S does not operate in isolation — it is the foundational wiring interface within a broader FLEX I/O control node. In a typical control cabinet deployment, the terminal base mounts on a 35 mm DIN rail alongside the 1794-AENT EtherNet/IP adapter module, which handles real-time communication between the I/O node and the ControlLogix or CompactLogix PLC backplane. Digital input signals from field sensors are captured by 1794-IB16 16-point 24 VDC digital input modules seated directly onto the terminal base, while discrete output commands to solenoids and actuators are routed through 1794-OB16 digital output modules. For process control loops requiring analog measurement, the 1794-IE8 8-channel analog input module pairs with the 1794-TB3S to accept 4–20 mA signals from pressure transmitters, flow meters, and temperature sensors without signal degradation even in high-EMI zones near variable frequency drives.

Power distribution within the control cabinet is typically managed by an Allen-Bradley 1606-XLP industrial power supply, which provides regulated 24 VDC to the FLEX I/O bus. Safety-critical machine zones may incorporate a 1791DS-IB12 GuardLink safety I/O module or a dedicated 440C-CR30 safety relay module to enforce SIL 2 or PLd safety integrity levels. Communication redundancy in high-availability installations is achieved through the 1794-ACNR15 ControlNet redundant media adapter, ensuring that a single cable fault does not interrupt process control. Terminal wiring integrity is further protected by 1492-CABLE series pre-wired interface cables that eliminate hand-wiring errors between the terminal base and marshalling panels. In installations where intrinsic safety barriers are required for Zone 1 or Zone 2 hazardous area compliance, the 1794-TB3S is deployed in conjunction with approved Zener barrier or galvanic isolator assemblies mounted in the associated safe-area cabinet.

Application in Critical Infrastructure

In upstream oil and gas wellhead automation, the 1794-TB3S serves as the field I/O termination point for remote terminal units (RTUs) monitoring wellhead pressure, choke valve position, and separator level. The module’s resistance to vibration from pump jacks and compressors, combined with its tolerance for wide ambient temperature swings in outdoor equipment shelters, makes it a preferred choice for SCADA-integrated control nodes operating continuously without local operator attendance.

In underground mining operations, conveyor belt control systems rely on FLEX I/O nodes built around the 1794-TB3S to monitor belt speed sensors, pull-cord emergency stops, and belt misalignment switches. The module’s robust screw terminal design resists the micro-vibration and shock loads transmitted through the mine structure, and its compatibility with sealed control enclosures ensures reliable operation in high-dust, high-humidity tunnel environments.

Municipal water and wastewater treatment facilities deploy the 1794-TB3S in pump station control panels where the module interfaces with submersible pump motor starters, flow totalizers, and chlorine dosing systems. The ability to replace a faulty I/O module without disturbing field wiring is particularly valued in unmanned pump stations where re-wiring by a qualified electrician would require scheduling and extended downtime.

In electric power generation and substation automation, the 1794-TB3S is integrated into protection relay panels and bay control units where it provides the I/O interface for breaker status monitoring, transformer tap changer control, and alarm annunciation. Its EMC performance in environments with high-voltage switching transients and strong magnetic fields from power transformers is a critical selection criterion for substation engineers.

Steel and metals processing plants use the 1794-TB3S in rolling mill automation, where the module must withstand the intense vibration, radiated heat from furnaces, and electromagnetic noise generated by large DC drive systems. Its DIN rail mounting and compact form factor allow dense I/O node configurations within space-constrained mill control cabinets.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping for verified warranty claims.

Q2: How is each unit tested before shipment?
Every 1794-TB3S unit undergoes a pre-shipment functional inspection that includes visual examination for physical damage, terminal integrity verification, and continuity testing of all wiring points. Units sourced from authorized distribution channels are verified against Rockwell Automation’s genuine product markings and serialization. We do not ship units that fail inspection, and a test record is retained for each order.

Q3: Is the 1794-TB3S compatible with all FLEX I/O modules and adapters?
The 1794-TB3S is designed for use with the full range of Allen-Bradley FLEX I/O 1794 series I/O modules, including digital input, digital output, analog input, analog output, and specialty modules. It is compatible with all standard FLEX I/O adapters including EtherNet/IP (1794-AENT), DeviceNet (1794-ADN), ControlNet (1794-ACN15), and PROFIBUS (1794-APB) variants. Always verify the specific I/O module’s terminal base compatibility in the Rockwell Automation product documentation before installation.

Q4: Can you support long-term or repeat supply for MRO and spare parts programs?
Yes. TOPNLMS maintains ongoing stock of the 1794-TB3S and other FLEX I/O components to support maintenance, repair, and operations (MRO) programs for industrial facilities. We can provide scheduled delivery agreements, reserved stock arrangements, and advance replacement units for critical spare parts programs. Contact us at [email protected] or +86 18359293191 to discuss your facility’s long-term supply requirements.
