Allen-Bradley 1794-OF41 Ruggedized Analog Output Module for Harsh Environments

Product Overview

Allen-Bradley 1794-OF41 Ruggedized Analog Output Module for Harsh Environments

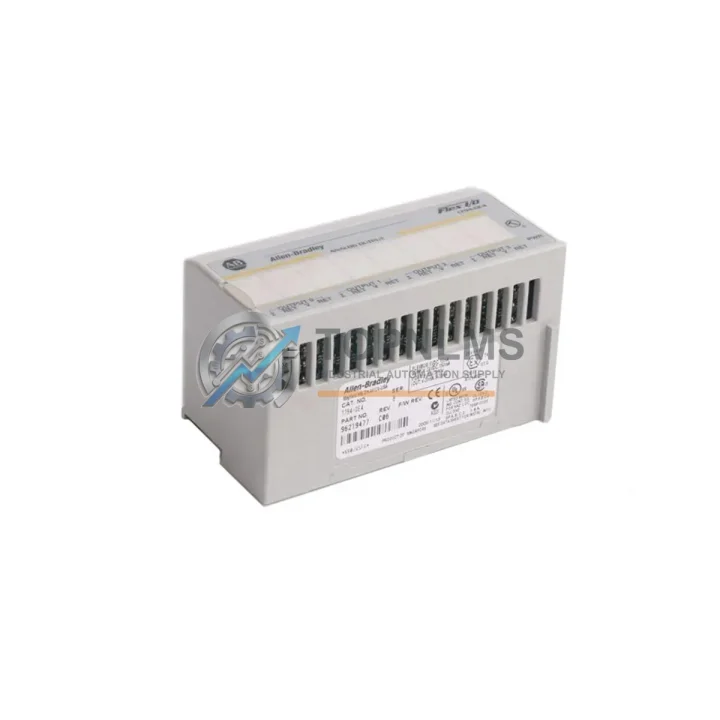

The Allen-Bradley 1794-OF41 is a 4-channel isolated analog output module engineered for the FLEX I/O platform — one of Rockwell Automation’s most field-proven distributed I/O architectures. Designed to deliver precision signal control in the most demanding industrial environments, the 1794-OF41 maintains stable 4–20 mA or 0–10 V DC output performance even under conditions of extreme temperature variation, high humidity, persistent vibration, airborne particulates, and intense electromagnetic interference (EMI). Whether deployed on a continuous petrochemical production line, a high-voltage power distribution substation, or a deep-shaft mining conveyor system, this module is built to keep your control loop running without interruption.

At TOPNLMS, every 1794-OF41 unit is sourced through verified supply channels, individually inspected prior to dispatch, and backed by a 12-month replacement warranty. We maintain ready stock to support urgent MRO (maintenance, repair, and operations) requirements, planned shutdowns, and long-term spare-parts programs for facilities that depend on Allen-Bradley FLEX I/O infrastructure.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-OF41 does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical FLEX I/O panel, it works alongside the 1794-AENT EtherNet/IP adapter or the 1794-ACN15 ControlNet adapter, which handle real-time communication between the I/O rack and the host controller. The adapter’s role is critical: it ensures that analog output commands from a ControlLogix L7x or CompactLogix L3x controller are transmitted with deterministic latency, even on busy plant networks.

On the power side, the FLEX I/O rack relies on a dedicated 1794-PS13 power supply or equivalent 24 V DC industrial power supply to maintain stable backplane voltage. Voltage fluctuations — common in facilities with large motor drives or welding equipment — can corrupt analog output signals. Pairing the 1794-OF41 with a properly rated power supply and a 1794-TB3 terminal base ensures clean signal delivery to field devices such as control valves, variable frequency drives (VFDs), and electro-pneumatic positioners.

In safety-critical applications, the 1794-OF41 is often deployed alongside Allen-Bradley GuardLogix safety controllers and 1791DS safety I/O modules, where the analog output drives a final control element while the safety system independently monitors process variables. For facilities operating under IEC 61511 (functional safety for process industries) or IEC 62061 (machinery safety), this layered architecture — combining standard analog output with a dedicated safety layer — is a proven design pattern.

Communication integrity across the control cabinet is further supported by 1756-EN2T EtherNet/IP communication modules in the ControlLogix backplane, while field-level signal conditioning may involve Allen-Bradley 1492 terminal blocks and 1492-CABLE wiring systems to reduce installation errors and simplify maintenance. In high-vibration environments such as compressor stations or rolling mills, proper cable management and terminal torque compliance are as important as the module specification itself.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1794-OF41 is used to modulate control valve positions on wellhead manifolds, separator vessels, and pipeline pressure regulation stations. Its channel-to-channel isolation prevents ground loops that are endemic in long cable runs across large process plants, ensuring that a fault on one output channel does not propagate to adjacent control loops.

In coal and metal mining operations, the module controls conveyor belt speed references sent to VFDs, regulates hydraulic pressure in longwall mining systems, and manages ventilation fan speed in underground environments where dust and methane monitoring are safety-critical. The module’s ability to operate reliably at elevated ambient temperatures — common near crusher stations and ore processing equipment — makes it a preferred choice for mine automation engineers.

In power generation and grid infrastructure, including thermal, hydroelectric, and renewable energy plants, the 1794-OF41 provides precise analog setpoints to turbine governor systems, excitation controllers, and transformer tap changers. Its EMI immunity is particularly valued in high-voltage switchyards where radiated interference from bus bars and disconnect switches can disrupt sensitive analog signals.

In municipal water and wastewater treatment, the module drives dosing pump speed references, controls motorized valve actuators on filtration systems, and manages aeration blower output — all processes where analog precision directly affects effluent quality and regulatory compliance. Facilities operating under continuous 24/7 production schedules rely on the availability of verified spare modules like the 1794-OF41 to minimize unplanned downtime during corrective maintenance.

In metallurgical and steel production environments, where ambient temperatures can exceed 50 °C and electromagnetic noise from arc furnaces is severe, the isolated architecture of the 1794-OF41 provides the signal integrity needed to control cooling water flow, ladle crane positioning, and rolling mill gap adjustment with the accuracy that modern quality management systems demand.

Security & Quality FAQ

Q1: What does the 12-month warranty from TOPNLMS cover?
Every 1794-OF41 shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. If the module fails under normal operating conditions within this period, we will arrange a replacement unit at no additional cost. Our warranty process is straightforward: contact us with your order reference and a brief fault description, and we will initiate the replacement within one business day.

Q2: How is each unit tested before shipment?
All 1794-OF41 modules undergo a pre-shipment functional inspection that includes visual examination for physical damage, verification of label and revision markings, and where test equipment is available, basic power-on verification. Units that do not pass inspection are quarantined and not dispatched. We do not ship modules with damaged connectors, missing labels, or signs of prior field use without explicit disclosure.

Q3: Is the 1794-OF41 compatible with my existing FLEX I/O system?
The 1794-OF41 is compatible with all standard FLEX I/O terminal bases (1794-TB3, 1794-TB3S, 1794-TB3T) and all FLEX I/O communication adapters, including EtherNet/IP (1794-AENT), ControlNet (1794-ACN15), DeviceNet (1794-ADN), and PROFIBUS (1794-APB). It is supported in RSLogix 5000 / Studio 5000 Logix Designer and legacy RSLogix 500 environments. If you are unsure about revision compatibility with your existing adapter firmware, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or recurring supply requirements?
Yes. We work with maintenance teams, procurement departments, and EPC contractors on both spot purchases and scheduled supply agreements. If your facility requires a standing stock of 1794-OF41 modules as part of a critical spare parts program, we can discuss volume pricing, reserved inventory, and priority dispatch arrangements. Contact us at [email protected] or call +86 18359293191 to discuss your requirements.
