Allen-Bradley 1794-OE8H/B Original Industrial Spare FLEX I/O Compatible

Product Overview

Allen-Bradley 1794-OE8H/B Original Industrial Spare FLEX I/O Compatible: System Stability & Maintenance Value

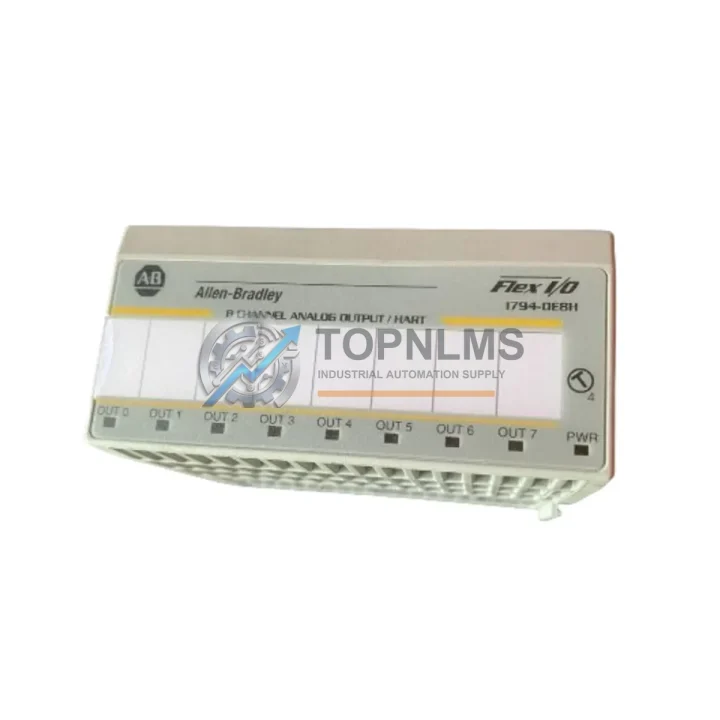

The Allen-Bradley 1794-OE8H/B is an 8-channel HART-enabled analog output module designed for the Rockwell Automation FLEX I/O platform. In process-critical environments — from chemical plants and water treatment facilities to oil & gas refineries and discrete manufacturing lines — this module serves as the backbone of precision analog signal control. Sourcing an original 1794-OE8H/B spare ensures your FLEX I/O rack maintains full HART communication capability, preserving the integrity of your field device diagnostics and loop calibration workflows without requiring system reconfiguration or firmware updates.

When a 1794-OE8H/B fails in service, the downstream impact is immediate: analog output loops drop to failsafe states, control valves lose their setpoint references, and operators are forced into manual override — a scenario that can cost thousands of dollars per hour in lost production. Keeping a verified original replacement on the shelf is not a luxury; it is a fundamental element of any responsible maintenance strategy for FLEX I/O-based control systems.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of your FLEX I/O control cabinet should never focus on a single module in isolation. The 1794-OE8H/B operates within an interconnected ecosystem of I/O modules, adapters, terminal bases, and field wiring — and the failure of any adjacent component can mask or accelerate degradation of the analog output module itself.

During a planned shutdown or preventive maintenance window, technicians replacing or inspecting the 1794-OE8H/B should simultaneously verify the condition of the 1794-AENT Ethernet/IP adapter or 1794-ACN15 ControlNet adapter that manages backplane communication for the entire FLEX I/O rack. A marginal adapter can introduce intermittent communication faults that are frequently misdiagnosed as output module failures, leading to unnecessary module replacements and extended troubleshooting cycles.

The 1794-TB3 or 1794-TB3S terminal base beneath the 1794-OE8H/B should be inspected for terminal corrosion, loose field wiring, and mechanical wear on the module locking tab. Terminal bases are often overlooked during spare parts planning, yet a degraded terminal base can cause erratic output behavior that mimics a faulty module. Stocking a spare terminal base alongside the output module is a low-cost insurance policy.

For sites running mixed analog I/O, the 1794-IE8 or 1794-IE8H analog input modules in the same rack should be checked for calibration drift during the same maintenance cycle. Analog input and output modules share the same backplane power rail; a failing input module drawing excessive current can affect output accuracy across the rack. Similarly, the 1794-OB16 or 1794-IB16 digital I/O modules installed in adjacent slots should be inspected for blown output drivers or stuck input channels that could indicate broader power quality issues in the cabinet.

Field wiring integrity is equally critical. HART communication on the 1794-OE8H/B requires a minimum loop impedance of 250 Ω to function correctly. Technicians should verify that HART-compatible field instruments — such as control valves with HART positioners or transmitters — are properly terminated and that no unauthorized parallel loads have been added to the 4–20 mA loop. A HART communicator or handheld field device should be used to confirm that HART polling addresses are correctly assigned after any module replacement.

Power supply health is another dimension of preventive maintenance that directly affects the 1794-OE8H/B. The 1794-PS13 or equivalent 24 VDC FLEX I/O power supply should be load-tested during scheduled downtime. Voltage sag under full load can cause analog output drift and HART communication errors that are difficult to reproduce under normal operating conditions. Replacing an aging power supply proactively — rather than reactively — is one of the highest-ROI maintenance actions available to a FLEX I/O system owner.

Finally, for facilities managing aging FLEX I/O installations, a review of the 1747-L553 or 1756-series ControlLogix controller firmware version is advisable. Older firmware revisions may have known issues with HART pass-through commands that affect the 1794-OE8H/B’s ability to relay HART data to the host controller. Ensuring firmware compatibility before a replacement module is installed prevents post-maintenance commissioning delays.

Strategic Replacement Solutions

The 1794-OE8H/B Series B is the current production revision of this module. Sites still operating Series A units should prioritize upgrading to Series B during the next planned outage, as Series B introduced improved HART communication stability and enhanced EMC immunity — both critical in high-noise industrial environments such as variable frequency drive (VFD) cabinets and motor control centers (MCCs).

For facilities managing end-of-life FLEX I/O systems where Rockwell Automation has discontinued active support, sourcing original spare modules from authorized distributors is the most cost-effective strategy for extending system life without the capital expenditure of a full migration to the 1794-L34 FLEX I/O controller platform or a newer Logix-based architecture. A single verified original 1794-OE8H/B can extend the operational life of a FLEX I/O rack by years, deferring migration costs while maintaining full process control capability.

When planning a phased system upgrade, the 1794-OE8H/B is fully compatible with Studio 5000 Logix Designer and RSLogix 5000 programming environments, ensuring that existing ladder logic and function block programs require no modification after a module swap. This plug-and-play compatibility minimizes commissioning time and reduces the risk of configuration errors during replacement — a key advantage over third-party or aftermarket alternatives that may require parameter re-entry or driver updates.

All units supplied by TOPNLMS are sourced from verified supply chains, individually tested for output accuracy and HART communication functionality prior to dispatch, and shipped with full traceability documentation. Each module is covered by a 12-month warranty from the date of shipment, providing procurement teams with the confidence needed to approve spare parts purchases without extended vendor qualification processes.

Support FAQ

Q1: Is the 1794-OE8H/B compatible with all FLEX I/O adapter types?
The 1794-OE8H/B is compatible with all standard 1794 Series FLEX I/O adapters, including the 1794-AENT (EtherNet/IP), 1794-ACN15 (ControlNet), 1794-ADN (DeviceNet), and 1794-ASB (Remote I/O). Verify that your adapter firmware supports HART pass-through if you intend to use HART communication features; some older adapter firmware revisions require an update to enable full HART functionality.

Q2: What testing is performed before shipment?
Each 1794-OE8H/B unit undergoes functional output verification across all 8 channels, HART communication polling confirmation, and visual inspection for physical damage or counterfeit indicators before dispatch. A test report is available upon request for quality-critical procurement processes.

Q3: How should I manage spare parts inventory for a FLEX I/O system?
For a FLEX I/O installation with 10 or more racks, industry best practice recommends maintaining at least one spare of each unique module type installed, with higher quantities for modules in high-cycle or high-temperature applications. The 1794-OE8H/B, as an analog output module in continuous process control service, is typically classified as a critical spare. A minimum stock of 1–2 units per plant site is recommended, with replenishment triggered when stock falls to 1 unit.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, functional failures under normal operating conditions, and HART communication faults attributable to the module itself. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. Warranty claims are processed with a target response time of 3 business days from receipt of the returned unit.
