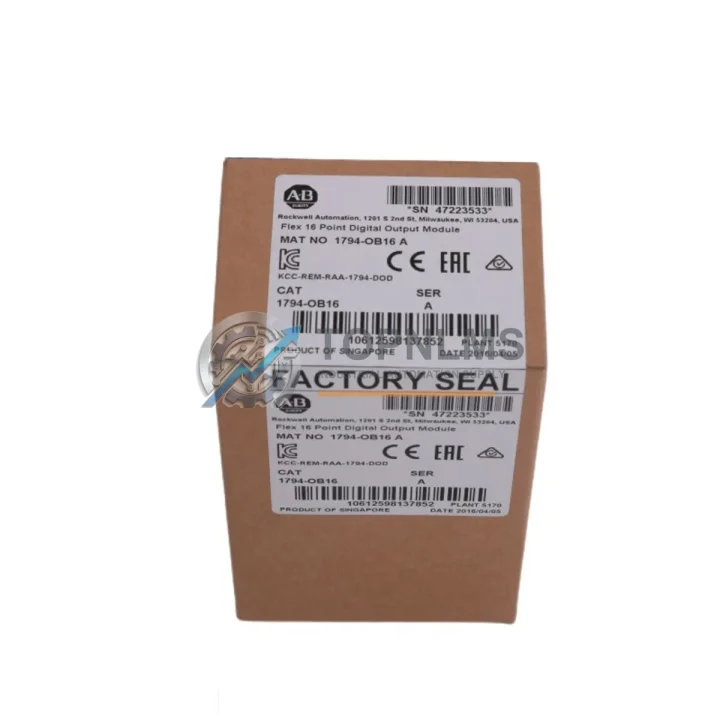

Allen-Bradley 1794-OB16 Ruggedized Output Module

Product Overview

Allen-Bradley 1794-OB16 Ruggedized Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1794-OB16 is a 16-point, 24VDC sourcing digital output module engineered for the Flex I/O platform — one of Rockwell Automation’s most versatile and widely deployed distributed I/O architectures. Designed to operate reliably in demanding industrial environments, the 1794-OB16 delivers consistent performance across applications where temperature extremes, humidity, vibration, electromagnetic interference (EMI), and airborne contaminants are everyday realities.

Whether deployed on a continuous production line in a steel mill, integrated into a water treatment control cabinet, or installed in a mining facility subject to constant mechanical shock, the 1794-OB16 maintains signal integrity and output reliability where lesser modules fail. Its compact DIN-rail-compatible form factor and tool-less terminal block design allow rapid installation and replacement in space-constrained control enclosures, minimizing downtime during maintenance or emergency swap-outs.

The module interfaces directly with the 1794-TB3 or 1794-TB3S terminal base, providing a secure, vibration-resistant wiring connection that is critical in high-vibration environments such as compressor stations, heavy press lines, and offshore platforms. When paired with a 1794-AENT or 1794-ACNR15 communication adapter, the 1794-OB16 integrates seamlessly into EtherNet/IP or ControlNet architectures, enabling real-time diagnostics and remote I/O management from a central Allen-Bradley ControlLogix or CompactLogix controller.

In high-temperature or high-humidity environments — such as foundries, chemical processing plants, or tropical outdoor enclosures — the 1794-OB16’s wide operating temperature range and conformal coating options ensure long-term reliability without derating. The module’s sourcing output configuration supports a broad range of field devices including solenoid valves, motor starters, indicator lamps, and relay coils, making it a universal fit for diverse actuator loads across process and discrete manufacturing sectors.

For facilities operating under IEC 61131-compliant safety frameworks or those managing SIL-rated safety loops, the 1794-OB16 is frequently deployed alongside safety-rated modules such as the 1791DS-IB8XOBV4 or GuardLogix safety controllers, providing standard output control while safety-critical outputs are handled by dedicated safety I/O. This layered architecture is common in oil and gas wellhead control panels, power generation switchgear rooms, and water utility SCADA systems.

EMI shielding and surge protection are essential in environments with large variable frequency drives (VFDs), arc welding equipment, or high-power motor control centers. The 1794-OB16’s robust electrical isolation between field-side and logic-side circuits protects the backplane and connected ControlLogix or CompactLogix processors from transient voltage spikes, ensuring system-wide stability. Facilities running 1794-IE8 analog input modules or 1794-IB16 digital input modules alongside the 1794-OB16 benefit from a unified Flex I/O rack that simplifies wiring, reduces panel footprint, and streamlines spare parts inventory.

From a procurement standpoint, TOPNLMS maintains ready stock of the 1794-OB16 to support both planned maintenance schedules and emergency replacement scenarios. Each unit undergoes functional testing prior to shipment, verifying output channel continuity, isolation integrity, and backplane communication. Units are shipped with original packaging where available, and all orders are covered by a 12-month warranty against manufacturing defects and functional failure.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable output control in harsh environments depends not only on the 1794-OB16 itself, but on the integrity of the entire control architecture surrounding it. In a typical Flex I/O node deployed in a heavy industrial cabinet, the 1794-OB16 operates alongside the 1794-IB16 digital input module, which handles field sensor signals from proximity switches, limit switches, and pressure transmitters. Together, these two modules form the core I/O pair for discrete control loops in applications ranging from conveyor systems to valve manifold control.

The 1794-AENT EtherNet/IP adapter serves as the communication gateway for the entire Flex I/O node, transmitting real-time output status and diagnostics back to the host ControlLogix L7x or CompactLogix L3x controller. In ControlNet-based architectures — common in older continuous process plants — the 1794-ACNR15 adapter fulfills the same role with deterministic, scheduled communication that is immune to Ethernet traffic congestion.

Power distribution within the control cabinet is typically managed by a 1794-PS13 or equivalent Flex I/O power supply, which provides isolated 24VDC to the I/O backplane. In facilities with unstable grid power or frequent voltage transients, an Allen-Bradley 1606-XLP power supply upstream of the Flex I/O node provides additional surge protection and voltage regulation, safeguarding both the 1794-OB16 and connected field devices.

For applications requiring safe isolation of high-voltage field signals, signal isolators and relay output modules such as the 1794-OW8 relay output module are deployed in parallel with the 1794-OB16, handling loads that exceed the module’s direct output ratings. This combination is standard practice in motor control center (MCC) panels where the 1794-OB16 drives interposing relays rather than motor contactors directly.

HMI visibility into output states is provided by PanelView Plus terminals connected via EtherNet/IP, giving operators real-time feedback on which of the 16 output channels are energized — a critical safety feature in hazardous area operations where unexpected actuator activation can cause injury or equipment damage.

Application in Critical Infrastructure

The 1794-OB16 is deployed across a wide range of critical infrastructure sectors where control system reliability is non-negotiable. In oil and gas upstream operations, the module controls wellhead valve actuators and chemical injection pump solenoids in remote RTU panels, where ambient temperatures can exceed 50°C and humidity is consistently high. Its electrical isolation prevents ground loops from corrupting output signals in environments where long cable runs between the control room and field junction boxes are common.

In municipal water treatment plants, the 1794-OB16 manages pump start/stop commands, valve open/close sequences, and chemical dosing system actuators as part of a SCADA-integrated Flex I/O network. The module’s compatibility with EtherNet/IP allows seamless integration with Wonderware or FactoryTalk SCADA platforms, enabling remote monitoring and alarm management without on-site intervention.

Mining operations — particularly underground coal and hard rock mines — subject control equipment to constant vibration, coal dust ingress, and wide temperature swings. The 1794-OB16’s vibration-rated design and sealed terminal base connections make it a preferred choice for conveyor drive control, ventilation fan management, and dewatering pump sequencing in these environments.

Power generation facilities, including thermal and hydroelectric plants, rely on the 1794-OB16 for auxiliary equipment control — managing cooling water valve sequences, lube oil pump commands, and generator excitation system outputs. In these applications, the module’s fast output response time and deterministic communication via ControlNet or EtherNet/IP are essential for maintaining turbine protection system response times within specification.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1794-OB16?
Every 1794-OB16 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers functional failure, output channel defects, and backplane communication faults under normal operating conditions. Replacement or refund is processed within 5 business days of confirmed fault diagnosis.

Q2: How is each unit tested before shipment?
All 1794-OB16 units undergo pre-shipment functional testing that verifies all 16 output channels, backplane communication integrity, and electrical isolation between field-side and logic-side circuits. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1794-OB16 compatible with my existing Flex I/O terminal base and adapter?
Yes. The 1794-OB16 is compatible with all standard 1794-series terminal bases (1794-TB3, 1794-TB3S, 1794-TB32) and all Flex I/O communication adapters including 1794-AENT (EtherNet/IP), 1794-ACNR15 (ControlNet), and 1794-ADN (DeviceNet). No firmware changes are required when replacing an existing 1794-OB16 in an operational Flex I/O node.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1794-OB16?
Yes. TOPNLMS maintains ongoing stock of the 1794-OB16 and can support blanket purchase orders, scheduled delivery programs, and emergency spot procurement. For facilities managing planned maintenance shutdowns or building strategic spare parts inventories, contact our team to discuss volume pricing and lead time commitments.
