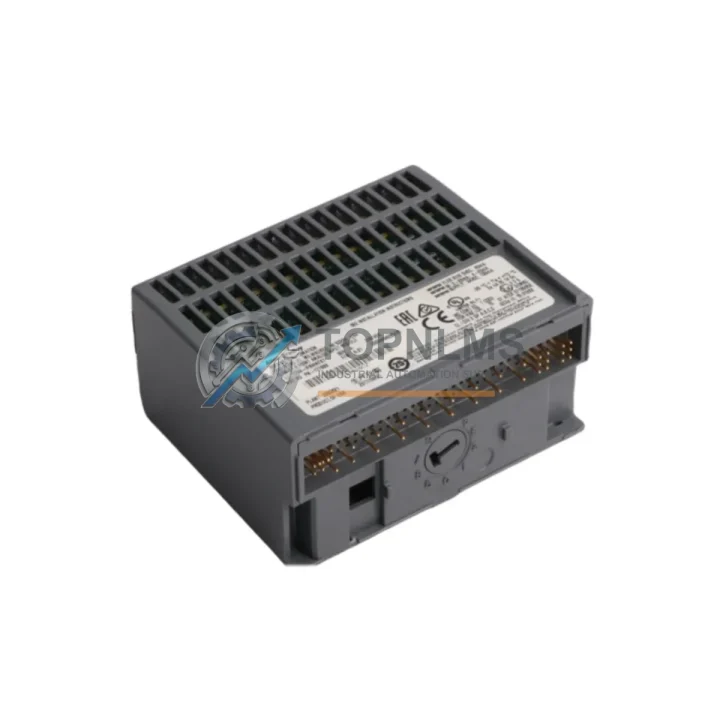

Allen-Bradley 1794-IF8IH Ruggedized Analog Input Module

Product Overview

Allen-Bradley 1794-IF8IH Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

In the most demanding industrial environments — where ambient temperatures swing from sub-zero to extreme heat, where vibration is constant, electromagnetic interference is pervasive, and production cannot afford to stop — the Allen-Bradley 1794-IF8IH stands as a cornerstone of reliable process measurement. This 8-channel high-resolution analog input module, part of the proven FLEX I/O 1794 series, is engineered to deliver accurate RTD and thermocouple signal acquisition even under the harshest field conditions. Whether deployed in a petrochemical refinery, a steel mill, a water treatment facility, or a continuous mining operation, the 1794-IF8IH provides the signal integrity and system stability that critical infrastructure demands.

The 1794-IF8IH integrates seamlessly into Allen-Bradley FLEX I/O backplane architectures, accepting up to eight independent RTD or thermocouple input channels simultaneously. Its high-resolution analog-to-digital conversion ensures that even small temperature deviations are captured with precision — a capability that is indispensable in processes where thermal runaway or equipment overheating can result in catastrophic failure. For maintenance engineers managing aging control systems, this module represents a direct, compatible replacement that preserves existing wiring infrastructure and eliminates costly system redesigns.

Rugged Specifications Table

Comprehensive Protection Solutions

Deploying the 1794-IF8IH in a harsh industrial environment is most effective when it is part of a holistic protection and control strategy. In high-temperature furnace control applications, for example, the module works in concert with the 1794-OB16 digital output module to trigger cooling fans or dampers based on thermocouple readings. The FLEX I/O adapter — such as the 1794-AENT EtherNet/IP adapter — serves as the communication backbone, transmitting real-time temperature data to the ControlLogix or CompactLogix PLC processor over a noise-resistant network.

In environments with significant electromagnetic interference, such as arc furnace facilities or high-voltage switchgear rooms, pairing the 1794-IF8IH with signal isolators and shielded thermocouple extension cables is standard practice. The 1794-TB3S terminal base with shield termination capability provides a direct path for cable shielding to chassis ground, dramatically reducing common-mode noise on sensitive RTD circuits. Maintenance teams should also inspect the 1794-PS13 or 1794-PS1 power supply modules during scheduled shutdowns, as power quality directly affects analog measurement accuracy.

For facilities operating in dusty or chemically aggressive atmospheres — such as cement plants, chemical processing units, or offshore platforms — the control cabinet housing the FLEX I/O rack should be rated IP54 or higher. Within that cabinet, the 1794-IF8IH operates alongside components such as the 1794-IB16 digital input module for discrete sensor feedback, the 1794-OW8 relay output module for alarm annunciation, and the 1794-ACN15 ControlNet adapter for deterministic communication in safety-critical loops. Surge protection devices installed on incoming signal lines further protect the module’s analog front-end from transient voltage spikes caused by lightning or motor switching events.

In water treatment and municipal utility applications, where continuous uptime is a regulatory requirement, facilities managers often maintain a dedicated spare inventory of FLEX I/O modules including the 1794-IF8IH, 1794-IF4I isolated analog input modules, and 1794-OF4I analog output modules. This ensures that any single-module failure can be remediated within minutes rather than hours, keeping treatment processes within compliance parameters at all times.

Application in Critical Infrastructure

The Allen-Bradley 1794-IF8IH has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, the module monitors wellhead temperatures and separator vessel temperatures, feeding data to safety instrumented systems that trigger emergency shutdowns when process limits are exceeded. Its compatibility with thermocouple types J and K makes it equally suited to monitoring heat exchangers in refinery distillation columns, where temperature profiles across multiple trays must be tracked simultaneously.

In the mining sector, the 1794-IF8IH is deployed in conveyor drive motor thermal monitoring systems, where RTD inputs from motor windings are continuously scanned to detect incipient overheating before insulation failure occurs. Underground mining environments subject control equipment to extreme vibration from blasting and heavy machinery; the FLEX I/O platform’s modular, backplane-based architecture absorbs these mechanical stresses far more effectively than traditional rack-and-card systems.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on the 1794-IF8IH for turbine bearing temperature monitoring, cooling water temperature measurement, and transformer winding temperature surveillance. In these applications, the module’s 16-bit resolution is critical: a 1°C measurement error in a turbine bearing could mean the difference between a planned maintenance outage and an unplanned catastrophic failure.

Metallurgical and steel production facilities use the module extensively in continuous casting and rolling mill temperature control loops. Here, the 1794-IF8IH works alongside high-speed analog output modules and variable frequency drives to maintain precise thermal profiles across the production line. Water treatment plants deploy it for monitoring chemical dosing reactor temperatures and UV disinfection system thermal performance, ensuring consistent treatment quality across seasonal temperature variations.

Security & Quality FAQ

Q1: What warranty coverage does the 1794-IF8IH carry?
Every 1794-IF8IH unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing prior to shipment, including channel-by-channel analog input verification, backplane communication checks, and visual inspection for physical integrity.

Q2: How is compatibility with my existing FLEX I/O system verified before shipment?
The 1794-IF8IH is compatible with all standard FLEX I/O terminal bases in the 1794-TB series and all FLEX I/O communication adapters. Our technical team cross-references your existing adapter firmware revision and terminal base model against the module’s compatibility matrix before dispatch. If you provide your current system configuration, we can confirm compatibility in writing prior to order confirmation.

Q3: Can the 1794-IF8IH be used as a direct replacement for older or discontinued analog input modules in the same series?
Yes. The 1794-IF8IH is designed as a form-fit-function replacement within the FLEX I/O 1794 platform. It can replace earlier-generation 8-channel analog input modules without requiring changes to terminal base wiring or PLC program logic, provided the replacement module’s firmware is compatible with the installed adapter. Our team provides pre-shipment configuration guidance to ensure seamless field replacement.

Q4: What is the typical lead time and shipping process for the 1794-IF8IH?
In-stock units are dispatched within 1–3 business days of order confirmation. We ship globally via DHL, FedEx, and UPS Express, with full tracking provided. Export documentation, including commercial invoices and packing lists compliant with international customs requirements, is prepared for every shipment. Rush orders for critical plant shutdowns can be accommodated — contact our team directly to discuss expedited fulfillment options.
