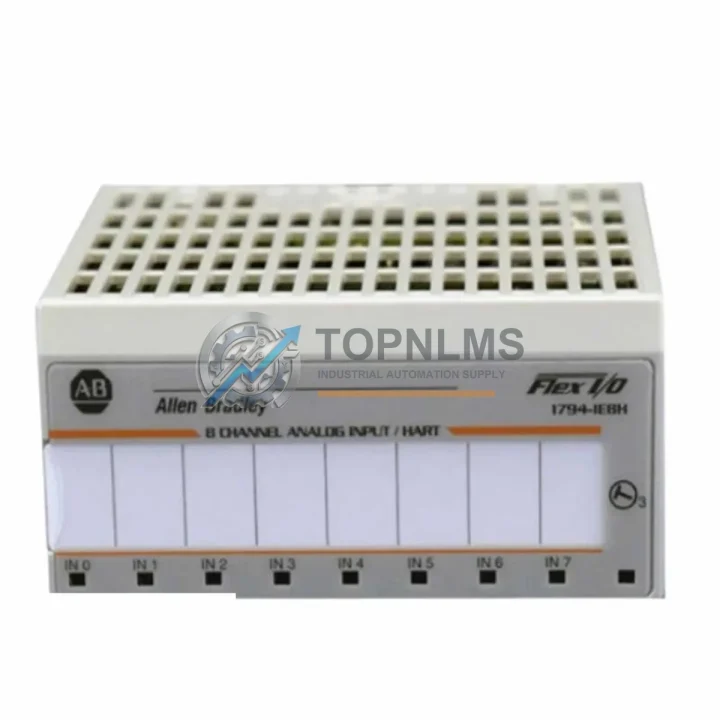

Allen-Bradley 1794-IE8H Ruggedized Analog Input Module

Product Overview

Allen-Bradley 1794-IE8H Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1794-IE8H is an 8-channel analog input module engineered for the FLEX I/O platform by Rockwell Automation. Designed to deliver precise, reliable signal acquisition in the most demanding industrial environments, this module is a cornerstone component for engineers and procurement specialists who cannot afford signal degradation, unexpected downtime, or compromised process integrity. Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, dust-heavy mining operations, or vibration-intensive heavy manufacturing lines, the 1794-IE8H maintains consistent analog measurement performance where lesser components fail.

Built to integrate seamlessly within the Allen-Bradley FLEX I/O architecture, the 1794-IE8H accepts voltage and current analog signals across all 8 channels simultaneously, providing high-resolution data acquisition for process control loops, safety interlocks, and condition monitoring systems. Its compact DIN-rail-mountable form factor and robust terminal base design make it an ideal fit for space-constrained control cabinets operating under continuous production schedules.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-IE8H does not operate in isolation — it is part of a tightly integrated FLEX I/O ecosystem that, when properly configured, delivers end-to-end signal integrity and system resilience. In a typical control cabinet deployment, the module is mounted on a 1794-TB3 or 1794-TB3S terminal base, which provides the mechanical and electrical interface to field wiring. The terminal base’s screw-clamp connections are rated for industrial vibration environments, ensuring that analog signals from field transmitters remain stable even on production lines subject to continuous mechanical stress.

Communication to the host PLC or DCS is managed through FLEX I/O adapter modules such as the 1794-AENT EtherNet/IP adapter or the 1794-ADN DeviceNet adapter, enabling the 1794-IE8H to transmit real-time process data to Allen-Bradley ControlLogix or CompactLogix controllers over standard industrial networks. In multi-drop DeviceNet topologies or EtherNet/IP ring architectures, this communication path remains robust against electromagnetic interference generated by variable frequency drives (VFDs), motor starters, and high-current switching equipment commonly found in heavy industry.

For applications requiring digital output control alongside analog measurement, the 1794-IE8H is frequently paired with the 1794-OB16 digital output module or the 1794-OW8 relay output module, allowing a single FLEX I/O rack to handle both sensing and actuation within the same compact footprint. Where safety-rated control is required, integration with a GuardLogix safety controller and dedicated safety I/O modules ensures that the analog measurement data feeds directly into safety-rated process interlocks and emergency shutdown (ESD) logic.

Power integrity is maintained through industrial-grade 24 VDC power supplies such as the Allen-Bradley 1606-XLP series, which provide regulated, low-ripple DC power to the FLEX I/O backplane even under fluctuating load conditions. Surge protection devices and EMI filters installed at the cabinet entry point further shield the 1794-IE8H and its companion modules from transient voltage spikes originating from the plant power distribution network.

In communication-intensive architectures, the 1794-IE8H works alongside 1794-ACN15 ControlNet adapter modules and 1794-APBDPV1 PROFIBUS DP adapters, supporting legacy DCS integration and multi-vendor automation environments. This protocol flexibility makes the 1794-IE8H a long-term viable component even as plant communication infrastructure evolves.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1794-IE8H is deployed to monitor pressure transmitters, flow meters, and temperature sensors across wellhead control panels and pipeline SCADA systems. Its ability to operate reliably in Class I Division 2 hazardous locations — when housed in appropriately rated enclosures — makes it a trusted choice for engineers specifying instrumentation in potentially explosive atmospheres. The module’s 16-bit resolution ensures that subtle process deviations are captured with the precision required for custody transfer measurement and safety interlock activation.

In power generation and electrical utility facilities, the 1794-IE8H monitors generator output parameters, transformer temperatures, and cooling system flow rates. Its EMI resilience is critical in environments where high-voltage switching equipment and large rotating machinery generate significant electromagnetic noise. Continuous, uninterrupted analog data acquisition is essential for grid stability management and predictive maintenance programs.

In mining and mineral processing plants, the module withstands the combined stresses of heavy vibration from crushing and grinding equipment, airborne silica and coal dust, and wide ambient temperature swings between outdoor cable runs and enclosed control rooms. Paired with appropriately rated enclosures and cable shielding, the 1794-IE8H delivers the measurement reliability that mine operators depend on for conveyor load monitoring, slurry flow control, and ventilation system management.

In water and wastewater treatment facilities, the 1794-IE8H interfaces with pH sensors, dissolved oxygen probes, turbidity meters, and chemical dosing flow transmitters. Its resistance to high-humidity environments and its compatibility with 4–20 mA HART-capable transmitters make it a natural fit for both greenfield plant designs and brownfield upgrades where existing field instrumentation must be preserved.

In metallurgical and steel production environments, where ambient temperatures near furnaces and casting lines can approach the upper limits of industrial equipment ratings, the 1794-IE8H’s thermal tolerance and robust construction ensure that analog process data — including melt temperature profiles, cooling water flow rates, and hydraulic pressure readings — remains accurate and available to the control system at all times.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1794-IE8H?
All 1794-IE8H modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch, including analog channel verification, backplane communication checks, and visual inspection for physical integrity. Warranty claims are handled directly by TOPNLMS with replacement or repair support throughout the coverage period.

Q2: How is product authenticity and quality verified before shipment?
Every 1794-IE8H unit is inspected and tested before shipment. Our quality control process includes verification of firmware version, channel-by-channel analog signal response testing, and physical inspection of terminal base connectors and module housing. We source from authorized distribution channels and maintain traceability records for each unit. Customers requiring test reports or inspection certificates may request them at the time of order.

Q3: Is the 1794-IE8H compatible with my existing FLEX I/O system and ControlLogix/CompactLogix controllers?
Yes. The 1794-IE8H is fully compatible with the Allen-Bradley FLEX I/O platform and integrates with ControlLogix, CompactLogix, and SoftLogix controllers via standard FLEX I/O adapter modules (1794-AENT, 1794-ADN, 1794-ACN15, 1794-APBDPV1). It is also backward-compatible with legacy PLC-5 and SLC 500 systems when used with appropriate adapter configurations. If you have specific firmware or hardware revision requirements, please contact our technical team before ordering.

Q4: Can TOPNLMS support long-term supply and replacement needs for the 1794-IE8H?
Yes. TOPNLMS maintains stock of the 1794-IE8H and related FLEX I/O components to support both immediate replacement needs and planned maintenance programs. We understand that industrial facilities often require rapid spare parts availability to minimize unplanned downtime. For customers with ongoing procurement requirements, we offer priority stock reservation and scheduled delivery arrangements. Contact our team to discuss volume pricing, lead times, and long-term supply agreements.
