Allen-Bradley 1794-IE8/B Replacement Upgrade for FLEX I/O

Product Overview

Allen-Bradley 1794-IE8/B Replacement Upgrade for FLEX I/O: Smooth Transition from Legacy Analog Input Systems

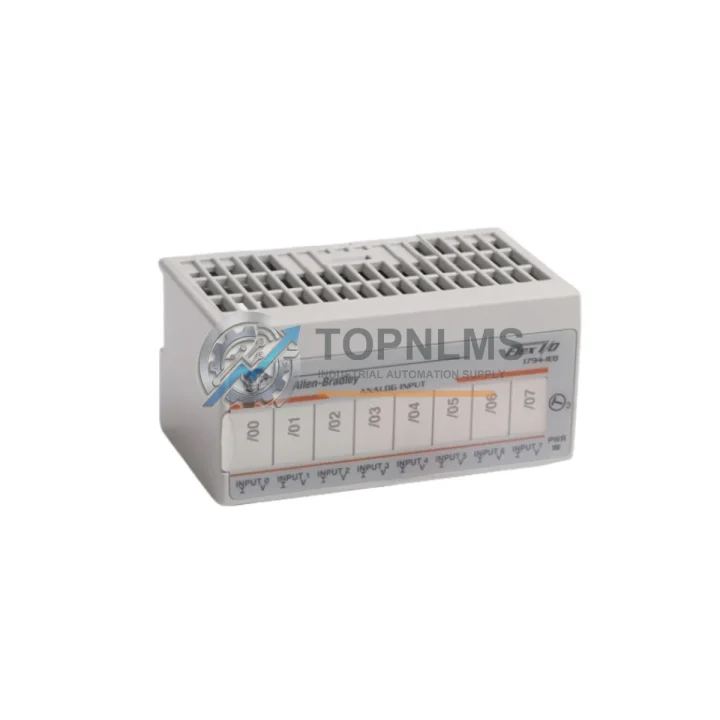

The Allen-Bradley 1794-IE8/B is an 8-channel analog input module within the Rockwell Automation FLEX I/O platform, designed for distributed I/O applications across a wide range of industrial control architectures. As this module approaches or has reached end-of-life status in many facilities, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that preserve existing wiring infrastructure, communication topology, and control program logic.

TOPNLMS supplies the 1794-IE8/B as a direct drop-in replacement for legacy FLEX I/O installations. Each unit is sourced, inspected, and dispatched from our Xiamen warehouse with a 12-month warranty, supporting your maintenance team’s need for reliable, traceable spare parts without extended lead times.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from an aging FLEX I/O analog input subsystem to a refreshed 1794-IE8/B installation typically involves more than a single module swap. In most retrofit projects, the 1794-IE8/B is installed alongside a compatible communication adapter such as the 1794-AENT (EtherNet/IP adapter) or the 1794-ADN (DeviceNet adapter), which bridges the FLEX I/O backplane to the plant network. If your existing system uses ControlNet, the 1794-ACN15 adapter remains fully compatible with the /B revision module.

Terminal base selection is equally important. The 1794-TB3 and 1794-TB3S terminal bases accept the 1794-IE8/B without modification, preserving field wiring terminations and eliminating the need to re-label or re-route analog signal cables from transmitters, pressure sensors, or flow meters. For installations with higher channel density, the 1794-TB32 provides additional flexibility.

Power distribution within the control cabinet should be reviewed during any FLEX I/O upgrade. The 1794-PS13 or equivalent 24 VDC power supply module ensures stable rail voltage for the analog input circuitry, which is critical for maintaining 12-bit resolution accuracy across all eight channels. Signal integrity can be further protected by inserting a signal isolator or surge protection barrier between field transmitters and the module input terminals, particularly in environments with variable-frequency drives or high-voltage switching equipment nearby.

For programming and commissioning, engineers using RSLogix 5000 or Studio 5000 Logix Designer will find that the 1794-IE8/B module profile is already included in the Rockwell Software Add-On Profile library. A 1784-U2DHP USB-to-DH+ programming cable or a standard Ethernet connection via the 1794-AENT adapter allows direct online configuration of channel scaling, filter settings, and alarm thresholds without modifying existing ladder logic rungs. If the legacy system used a SLC 500 or MicroLogix 1500 controller with a FLEX I/O remote I/O adapter, the migration path to a CompactLogix L3x or ControlLogix L7x controller is well-documented and the 1794-IE8/B fits directly into the new architecture.

HMI integration is typically unaffected by the module swap. Existing PanelView Plus or PanelView 800 tag databases referencing analog input addresses will continue to function correctly once the module is online and the controller program is downloaded, provided the I/O tree slot assignment is preserved.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when replacing an older 1794-IE8 with the /B revision?
A: No. The 1794-IE8/B uses the same terminal base pinout as the original 1794-IE8. Field wiring connected to the 1794-TB3 or 1794-TB3S terminal base does not need to be disturbed. Simply remove the old module from the terminal base and insert the /B revision — the mechanical keying and electrical interface are identical.

Q: Is the 1794-IE8/B compatible with my existing DeviceNet or EtherNet/IP network?
A: Yes. The module itself is protocol-agnostic; communication is handled by the adapter module (e.g., 1794-ADN for DeviceNet, 1794-AENT for EtherNet/IP). As long as the adapter is unchanged, the network configuration, node address, and EDS file remain valid.

Q: Will my existing RSLogix 5000 program require modification?
A: In most cases, no. If the module is installed in the same rack slot and the I/O configuration in the controller project matches the /B revision module profile, the program will run without changes. A module profile update in Studio 5000 may be required if the original project was created with a very early software revision.

Q: Can the 1794-IE8/B be used in a ControlLogix system with a remote FLEX I/O rack?
A: Yes. When paired with a 1794-ACN15 (ControlNet) or 1794-AENT (EtherNet/IP) adapter, the 1794-IE8/B integrates seamlessly into a ControlLogix remote I/O architecture. The module appears in the I/O tree of Studio 5000 as a standard FLEX I/O analog input module.

Q: What physical space does the module require in the control cabinet?
A: The 1794-IE8/B occupies one FLEX I/O module slot on a DIN rail-mounted terminal base. Its compact footprint makes it suitable for retrofit in existing cabinets without requiring panel modifications or additional DIN rail sections.

Q: How do I configure channel input ranges after installation?
A: Channel configuration (voltage vs. current input, scaling, filter frequency) is performed via the module’s configuration parameters in RSLogix 5000 / Studio 5000. No hardware jumpers are required; all settings are software-configurable and stored in the controller project.

Warranty Assurance

Every 1794-IE8/B unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification check including power-on testing and visual inspection for physical integrity. Units are packaged in anti-static protective packaging with appropriate cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit note based on the buyer’s preference. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available to minimize plant downtime.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Bulk orders and standing purchase agreements are supported for MRO and spare parts programs.

To place an order, request a quotation, or discuss compatibility for your specific installation, contact our technical sales team directly.
