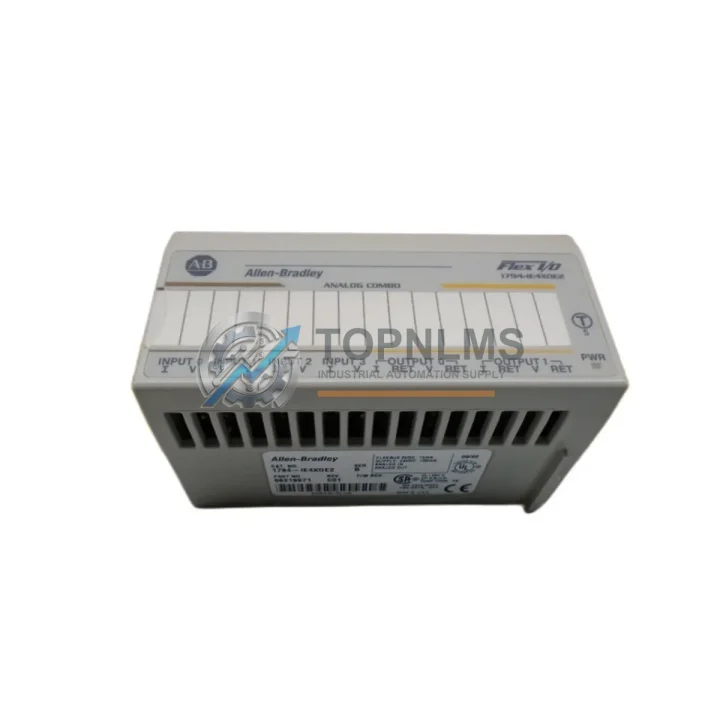

Allen-Bradley 1794-IE4XOE2 Ruggedized Analog I/O Module

Product Overview

Allen-Bradley 1794-IE4XOE2 Ruggedized Analog I/O Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1794-IE4XOE2 is a FLEX I/O analog combination module engineered for continuous, reliable operation in the most demanding industrial environments. Combining four analog input channels with two analog output channels in a single compact form factor, this module is purpose-built for process control applications where signal integrity, thermal stability, and electromagnetic immunity are non-negotiable. Whether deployed in a high-temperature steel mill, a dust-laden mining gallery, a vibration-intensive offshore platform, or a chemically aggressive water treatment facility, the 1794-IE4XOE2 delivers consistent, accurate analog data acquisition and control output without compromise.

Designed as part of Rockwell Automation’s proven FLEX I/O platform, the 1794-IE4XOE2 integrates seamlessly into ControlLogix, CompactLogix, and MicroLogix PLC architectures via the 1794-ADN DeviceNet adapter or the 1794-AENT EtherNet/IP adapter. This flexibility allows system integrators to deploy the module across a wide range of network topologies without redesigning the control cabinet. The module’s rugged terminal base — typically the 1794-TB3 or 1794-TB3S — ensures secure field wiring connections that resist loosening under mechanical vibration, a critical requirement in rotating machinery and heavy-press environments.

In process industries such as oil and gas, petrochemical refining, and power generation, analog signal accuracy directly impacts safety and throughput. The 1794-IE4XOE2 supports standard 4–20 mA current loop and 0–10 V voltage input ranges, making it compatible with a broad ecosystem of field transmitters including pressure transducers, temperature transmitters, flow meters, and level sensors. Its output channels can drive proportional control valves, variable-speed drives, and positioners, enabling closed-loop PID control directly from the FLEX I/O rack without additional signal conditioning hardware.

Electromagnetic interference (EMI) is a persistent threat in heavy industrial environments where large motors, variable frequency drives (VFDs), arc welders, and high-voltage switchgear operate in close proximity to control systems. The 1794-IE4XOE2 incorporates hardware-level noise filtering and isolation barriers that protect analog signal integrity even in electrically noisy panels. When paired with the 1794-OB16 digital output module or the 1794-IB16 digital input module in the same FLEX I/O rack, the combination module contributes to a fully shielded, coordinated I/O strategy that minimizes cross-channel interference and ground loop errors.

For safety-critical installations, the 1794-IE4XOE2 is frequently deployed alongside safety-rated components such as the Allen-Bradley 440C GuardMaster safety relay and the 1791DS-IB12 GuardLogix safety I/O module. While the 1794-IE4XOE2 itself is a standard (non-SIL-rated) analog module, its role in monitoring process variables — temperature excursions, pressure deviations, flow anomalies — feeds directly into safety instrumented system (SIS) logic executed by the safety PLC. Accurate, low-drift analog readings from the 1794-IE4XOE2 are therefore a foundational input to any functional safety architecture built around IEC 61511 or IEC 61508 principles.

In continuous production lines — automotive body shops, food and beverage filling lines, pharmaceutical batch reactors — unplanned downtime caused by a failed I/O module can cost tens of thousands of dollars per hour. Maintaining a qualified spare of the 1794-IE4XOE2 in the control room or storeroom is a standard best practice endorsed by reliability engineers worldwide. TOPNLMS stocks this module with full pre-shipment functional testing, ensuring that every unit dispatched is verified against Rockwell Automation’s original performance specifications before it reaches your facility.

The module’s compact DIN-rail-mounted FLEX I/O form factor also simplifies control cabinet design. When combined with the 1794-PS13 or 1794-PS1 power supply, a complete FLEX I/O rack can be assembled in a fraction of the space required by traditional rack-based I/O systems, reducing panel footprint and improving thermal management inside the enclosure. This is particularly valuable in retrofit projects where existing cabinets must accommodate expanded I/O counts without structural modification.

Communication reliability is equally important. The 1794-IE4XOE2 communicates through the FLEX I/O backplane to the network adapter, which may be a 1794-AENT for EtherNet/IP, a 1794-ADN for DeviceNet, or a 1794-ACN15 for ControlNet. Each of these adapters supports deterministic, high-speed data exchange with the host PLC, ensuring that analog process values are updated at scan rates appropriate for fast-response control loops. In distributed control architectures where the FLEX I/O rack is mounted remotely — near the field device rather than in the main control room — this communication resilience is essential for maintaining system-wide synchronization.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-IE4XOE2 is rarely deployed in isolation — its true value emerges when integrated into a coordinated protection and control architecture. In a typical process control cabinet, the module shares a FLEX I/O rack with the 1794-OB16 digital output module, which drives solenoid valves and motor starters based on analog threshold logic processed by the host PLC. The 1794-IB16 digital input module captures discrete status signals from field switches and proximity sensors, completing the I/O picture alongside the analog data from the 1794-IE4XOE2.

Power integrity is maintained by the 1794-PS13 FLEX I/O power supply, which provides regulated 24 VDC to the I/O rack and protects downstream modules from voltage transients common in industrial environments. For applications requiring network redundancy, the 1794-AENT EtherNet/IP adapter supports Device Level Ring (DLR) topology, ensuring that a single cable fault does not interrupt communication between the analog module and the ControlLogix controller.

In safety-instrumented systems, the 1794-IE4XOE2 feeds analog process data to a GuardLogix 5570 safety controller, which executes SIL 2–rated safety functions based on the measured values. The 1791DS-IB12 GuardLogix safety I/O module handles the discrete safety signals — emergency stop loops, light curtain feedback, gate interlock status — while the 1794-IE4XOE2 monitors the continuous process variables that define safe operating envelopes. Together, these components form a layered protection strategy that satisfies both process safety and machine safety requirements within a single Rockwell Automation architecture.

For variable-speed drive applications, the analog output channels of the 1794-IE4XOE2 provide the speed reference signal to PowerFlex 525 or PowerFlex 755 AC drives, enabling smooth, PID-controlled motor speed regulation. This eliminates the need for separate analog signal conditioners and reduces wiring complexity in the control panel. The module’s output accuracy and low drift characteristics ensure that drive speed commands remain stable over extended production runs, even as panel temperatures fluctuate.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1794-IE4XOE2 monitors wellhead pressure transmitters, separator level sensors, and pipeline flow meters. Its analog inputs capture the 4–20 mA signals from HART-compatible field instruments, while its outputs drive control valve positioners that regulate flow rates and separator levels. The module’s vibration tolerance and wide operating temperature range make it suitable for installation in remote field junction boxes and skid-mounted control panels exposed to ambient temperature extremes.

In mining and mineral processing operations, the module is deployed in conveyor control systems, crusher automation panels, and flotation cell control loops. The high-dust, high-vibration environment of a mine processing plant demands I/O hardware that maintains calibration accuracy without frequent recalibration cycles. The 1794-IE4XOE2’s hardware filtering and robust terminal base connections address both requirements, reducing maintenance burden on automation technicians working in hazardous area classifications.

In power generation — whether coal-fired, gas turbine, hydroelectric, or nuclear — the module supports turbine governor control, boiler feedwater regulation, and generator excitation monitoring. The precision of its analog inputs is critical for maintaining tight control of steam pressure and temperature within the narrow bands required for efficient and safe power generation. Utilities operating aging distributed control systems increasingly rely on FLEX I/O modules as a cost-effective I/O expansion strategy that integrates with both legacy and modern DCS platforms.

In water and wastewater treatment facilities, the 1794-IE4XOE2 monitors dissolved oxygen sensors, pH transmitters, turbidity meters, and chemical dosing pump feedback signals. Its two analog output channels control variable-speed chemical dosing pumps and aeration blower drives, enabling precise, real-time adjustment of treatment chemistry based on measured water quality parameters. The module’s resistance to high-humidity environments — common in pump stations and aeration basins — ensures long-term reliability without corrosion-related failures.

In metallurgical and steel production environments, where ambient temperatures near furnaces and casting lines can approach the upper limits of industrial equipment ratings, the 1794-IE4XOE2’s 0–60 °C operating range and thermal design provide the margin needed for reliable continuous operation. The module monitors thermocouple transmitter outputs, pyrometer signals, and hydraulic pressure sensors that are critical for maintaining product quality and preventing equipment damage in high-value production processes.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1794-IE4XOE2?
Every 1794-IE4XOE2 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with Rockwell Automation’s published specifications. In the event of a warranty claim, TOPNLMS provides replacement or repair support with priority handling to minimize your production downtime.

Q2: How is each unit tested before shipment?
All modules undergo a comprehensive pre-shipment functional verification process. Each 1794-IE4XOE2 is powered up and tested for correct analog input signal acquisition across all four channels and verified analog output signal generation across both output channels. Calibration accuracy, channel isolation, and backplane communication integrity are confirmed before the unit is packaged. This process ensures that every module dispatched from TOPNLMS is operationally verified — not simply visually inspected.

Q3: Is the 1794-IE4XOE2 compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1794-IE4XOE2 is fully compatible with any FLEX I/O rack and adapter combination supported by Rockwell Automation, including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), and 1794-ACN15 (ControlNet) adapters. It is recognized natively by RSLogix 5000 / Studio 5000 Logix Designer and requires no custom configuration beyond standard FLEX I/O module addition. Compatibility with ControlLogix 5570/5580, CompactLogix 5370/5380, and legacy PLC-5 systems (via appropriate gateway) is confirmed.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains standing inventory of the 1794-IE4XOE2 and related FLEX I/O components to support both planned maintenance programs and emergency breakdown replacements. For customers operating critical infrastructure where module availability is a production risk, TOPNLMS offers priority stock reservation and expedited shipping to major industrial regions. Contact our technical sales team at [email protected] or +86 18359293191 to discuss inventory reservation, lead times, and volume pricing.
