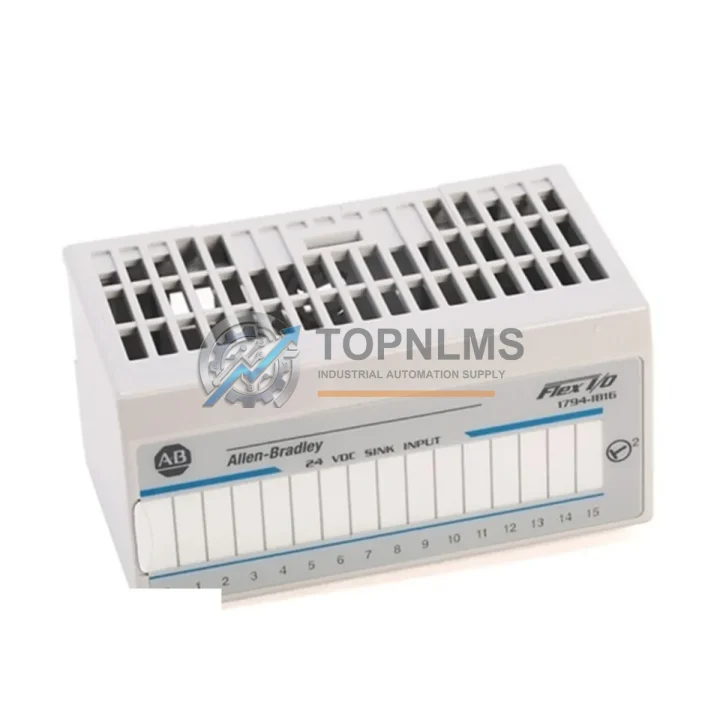

Allen-Bradley 1794-IB16D Ruggedized Digital Input Module

Product Overview

Allen-Bradley 1794-IB16D Ruggedized Digital Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1794-IB16D is a 16-point diagnostic digital input module engineered for the FLEX I/O platform — Rockwell Automation’s modular, DIN-rail-mounted distributed I/O system designed to operate reliably in the most demanding industrial environments. Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, dust-heavy mining operations, or vibration-intensive heavy manufacturing lines, the 1794-IB16D delivers consistent, fault-tolerant signal acquisition that keeps your control architecture running without interruption.

Built to IEC 61131-2 input standards, this module accepts 24V DC sinking inputs across all 16 channels and provides per-channel diagnostic feedback — a critical capability in safety-sensitive applications where early fault detection prevents unplanned downtime. The integrated diagnostics report open-wire faults, short-circuit conditions, and field-side power loss directly to the controller, enabling predictive maintenance strategies that reduce mean time to repair (MTTR) in continuous production environments.

The 1794-IB16D interfaces directly with the 1794-ADN DeviceNet Adapter, 1794-AENT EtherNet/IP Adapter, and 1794-APB PROFIBUS Adapter, making it protocol-agnostic and compatible with virtually any modern DCS or PLC backbone. When paired with a 1756-L85E ControlLogix controller or a 1769-L33ER CompactLogix controller, the module integrates seamlessly into Studio 5000 Logix Designer, supporting tag-based programming and full diagnostic visibility at the HMI level.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated FLEX I/O control cabinet, the 1794-IB16D rarely operates in isolation. It is most commonly deployed alongside the 1794-OB16 16-point digital output module, which handles actuator-side switching for solenoids, contactors, and indicator lamps. For analog process variables such as temperature, pressure, and flow, the 1794-IE8 8-channel analog input module complements the 1794-IB16D within the same terminal base assembly, sharing a common adapter and backplane bus.

Field-side power conditioning is equally critical. The 1606-XLP72E Switched-Mode Power Supply provides stable 24V DC rail power with active power factor correction and wide-range AC input (85–264V AC), ensuring the FLEX I/O rack remains energized even during utility voltage fluctuations common in heavy industrial facilities. For installations requiring galvanic isolation between field devices and the control network, Phoenix Contact MACX MCR signal conditioners are frequently specified in the same panel.

Safety-rated applications — particularly those requiring SIL 2 or PLd compliance — often integrate the 1794-IB16D with a 1791DS-IB12 GuardI/O safety input module on a parallel safety bus, allowing standard and safety I/O to coexist within the same physical enclosure while maintaining independent safety integrity. The 1734-IB8S POINT Guard I/O safety module is another common companion in machine safety architectures where the FLEX I/O handles process I/O and POINT I/O handles safety interlocks.

Communication infrastructure supporting the 1794-IB16D typically includes the 1783-BMS10CGP Stratix managed Ethernet switch for EtherNet/IP topologies, or the 1788-DN2DN DeviceNet bridge module for legacy DeviceNet networks. Terminal connectivity within the cabinet is standardized using Phoenix Contact PT 2.5 spring-clamp terminal blocks, which maintain reliable contact integrity under continuous vibration — a common failure point in rotating machinery environments.

Application in Critical Infrastructure

The 1794-IB16D has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, it monitors discrete field signals from wellhead pressure switches, emergency shutdown (ESD) valve position feedback, and flame detector outputs — all in Class I, Division 2 (C1D2) rated enclosures where the module’s robust EMI immunity prevents spurious trips caused by variable-frequency drive (VFD) switching noise.

In coal and metal mining, the module is deployed on conveyor belt control systems where continuous vibration, coal dust ingress, and high ambient temperatures challenge lesser-rated I/O hardware. Its IEC 68-2-6 vibration rating and conformal-coated PCB construction allow it to maintain signal integrity across multi-kilometer conveyor runs where signal degradation would otherwise cause nuisance faults.

Municipal and industrial water and wastewater treatment plants rely on the 1794-IB16D for pump run/fault status monitoring, valve position feedback, and level switch inputs across distributed lift stations. The module’s non-condensing humidity rating to 95% RH makes it suitable for wet well environments where condensation is a persistent concern.

In electric power generation and substation automation, the module interfaces with protection relay auxiliary contacts, circuit breaker status inputs, and transformer tap position indicators — applications where diagnostic accuracy and deterministic scan times are non-negotiable. Steel mills and aluminum smelters deploy it on rolling mill control systems where high-frequency electromagnetic interference from arc furnaces and induction heaters demands the module’s full IEC 61000-4 EMC compliance suite.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1794-IB16D?
Every 1794-IB16D shipped by TOPNLMS carries a 12-month warranty from the date of delivery. This covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from our Xiamen warehouse to minimize your downtime.

Q2: How is each unit tested before shipment?
All modules undergo a pre-shipment functional verification process that includes power-on self-test (POST) confirmation, channel-by-channel input signal injection testing, and diagnostic register readback verification. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1794-IB16D compatible with my existing FLEX I/O terminal base and adapter?
Yes. The 1794-IB16D is compatible with all standard FLEX I/O terminal bases (1794-TB3, 1794-TB3S, 1794-TB32, 1794-TBN) and all FLEX I/O communication adapters including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), 1794-APB (PROFIBUS), and 1794-ACN15 (ControlNet). No firmware upgrade to the adapter is required for standard diagnostic functionality.

Q4: Can TOPNLMS support long-term or repeat supply of the 1794-IB16D for ongoing maintenance programs?
Absolutely. TOPNLMS maintains standing inventory of high-demand FLEX I/O modules including the 1794-IB16D to support planned maintenance shutdowns, emergency spare parts programs, and MRO (Maintenance, Repair & Operations) procurement contracts. We offer volume pricing for orders of 5 units or more and can provide lead-time commitments for scheduled plant turnarounds. Contact our team at [email protected] or call +86 18359293191 to discuss your supply requirements.
