Allen-Bradley 1794-IA16 Ruggedized AC Input Module for Harsh Environments

Product Overview

Allen-Bradley 1794-IA16 Ruggedized AC Input Module for Harsh Environments: Industrial Resilience You Can Rely On

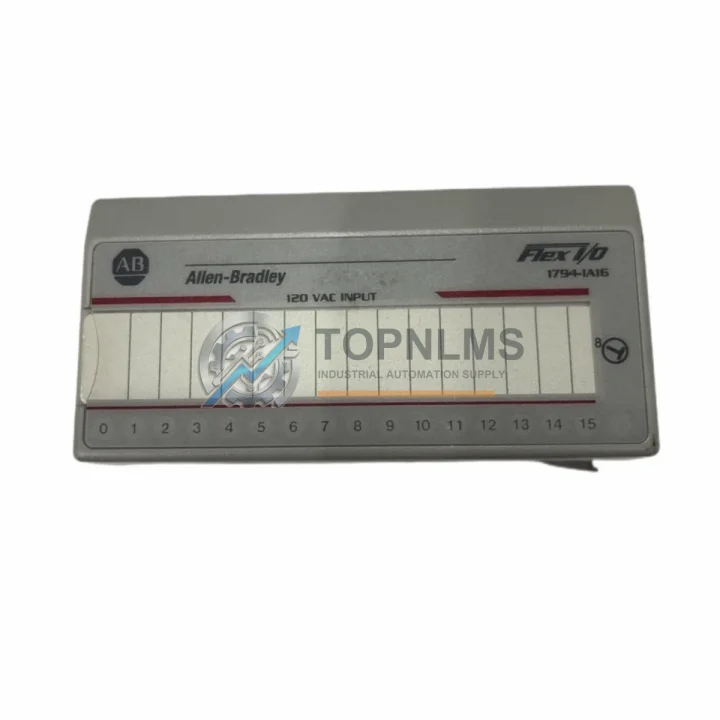

The Allen-Bradley 1794-IA16 is a 16-channel AC digital input module engineered for the FLEX I/O platform — one of Rockwell Automation’s most field-proven distributed I/O architectures. Designed to operate reliably in environments characterized by high temperature, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 1794-IA16 delivers the signal integrity and uptime that critical industrial processes demand. Whether deployed on a continuous petrochemical production line, inside a heavy-duty mining control cabinet, or across a high-voltage power distribution substation, this module maintains deterministic input scanning and fault-tolerant communication without compromise.

At TOPNLMS, every 1794-IA16 unit is sourced through verified supply channels, individually inspected prior to dispatch, and backed by a 12-month replacement warranty — giving procurement engineers and maintenance teams the confidence to specify it as both a primary installation component and a critical spare.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-IA16 is rarely deployed in isolation. In a well-engineered FLEX I/O node, it operates alongside complementary modules that together form a complete, fault-tolerant I/O subsystem. The 1794-OA16 16-channel AC digital output module pairs directly with the 1794-IA16 to provide matched input/output capacity on the same terminal base, simplifying cabinet layout and reducing wiring complexity. For mixed-signal applications, the 1794-IE8 8-channel analog input module and 1794-OE4 4-channel analog output module extend the node’s capability to handle 4–20 mA process signals from pressure transmitters, flow meters, and temperature sensors without requiring a separate rack.

Communication integrity is maintained through the 1794-AENT EtherNet/IP adapter, which connects the FLEX I/O node to a ControlLogix or CompactLogix PLC backplane over standard industrial Ethernet — enabling real-time diagnostics, remote I/O forcing, and seamless integration with Rockwell’s Studio 5000 Logix Designer environment. In legacy installations or multi-vendor architectures, the 1794-ADN DeviceNet adapter provides an equally robust alternative. For power conditioning within the control cabinet, the 1794-PS13 power supply delivers regulated 24 V DC to the FLEX I/O backplane, ensuring stable operation even when upstream supply voltage fluctuates due to heavy motor loads or switching transients.

Safety-critical zones benefit from the addition of a 1791DS-IB12 GuardLink safety I/O module or a dedicated 1734-IB8S POINT Guard I/O safety input module, which can be networked alongside the 1794-IA16 node to enforce SIL 2 / PLd safety functions such as emergency stop monitoring, light curtain feedback, and two-hand control verification. Surge protection at the field wiring terminals — provided by DIN-rail-mounted surge arrestors compatible with the 1794-TB3S terminal base — further shields the 1794-IA16’s input circuits from lightning-induced transients and inductive load switching spikes common in heavy industrial environments. For installations requiring additional communication redundancy, the 1794-APB PROFIBUS DP adapter enables integration into existing PROFIBUS networks without disrupting the established control architecture.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1794-IA16 monitors AC-powered field devices such as motor starters, solenoid valve position switches, and high-level alarm contacts across wellhead control panels and pipeline SCADA nodes. Its high-isolation input design prevents ground loops from corrupting signal integrity when field cables run hundreds of meters through electrically noisy environments.

In mining and mineral processing, the module is installed inside sealed control cabinets on conveyor drive panels, crusher control systems, and flotation cell automation racks. The module’s vibration and shock ratings — validated to IEC 68-2-6 and IEC 68-2-27 — ensure that continuous mechanical vibration from crushers, screens, and ball mills does not induce false input transitions or hardware fatigue over multi-year service cycles.

In power generation and electrical substations, the 1794-IA16 reads status signals from 120 V AC auxiliary contacts on circuit breakers, disconnect switches, and transformer tap changers. Its 500 V AC channel-to-backplane isolation is essential in these environments, where induced voltages from high-voltage bus bars can otherwise damage unprotected I/O hardware.

In water and wastewater treatment plants, the module integrates with pump motor control centers and chemical dosing systems, providing reliable digital input scanning in high-humidity pump rooms where condensation and chemical vapors are persistent concerns. Its non-condensing humidity rating of 5–95% and conformal-coating-ready design make it a preferred choice for these installations.

In metallurgy and steel production, the 1794-IA16 operates within rolling mill automation systems and electric arc furnace control panels, where electromagnetic interference from high-current bus bars and variable-frequency drives can reach levels that overwhelm lesser-specified I/O hardware. The module’s IEC 61000-4 series EMI immunity ratings — covering electrostatic discharge, electrical fast transient, surge, and conducted RF immunity — provide the margin needed for reliable operation in these extreme electromagnetic environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers hardware defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange a direct replacement after remote fault verification. Contact [email protected] with the order reference and a brief fault description to initiate a claim. Replacement units are dispatched within 3–5 business days from our Xiamen warehouse.

Q2: How is each 1794-IA16 unit tested before shipment?
Every unit undergoes a pre-shipment functional inspection that includes visual examination for physical damage, backplane connector integrity check, and power-on verification of LED status indicators. Units sourced from original factory-sealed packaging are additionally verified against Rockwell Automation’s published catalog revision and date codes to confirm authenticity and firmware compatibility.

Q3: Is the 1794-IA16 compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1794-IA16 is fully compatible with any FLEX I/O adapter that supports the FLEX I/O backplane protocol, including the 1794-AENT (EtherNet/IP), 1794-ADN (DeviceNet), and 1794-APB (PROFIBUS DP). It integrates transparently into Studio 5000 Logix Designer projects and is recognized by RSLogix 5000 v16 and later. No firmware upgrade to the host PLC is required for standard digital input operation.

Q4: Can TOPNLMS support long-term supply continuity for maintenance and spare parts programs?
Yes. TOPNLMS maintains standing inventory of the 1794-IA16 and related FLEX I/O modules to support planned maintenance shutdowns, emergency breakdowns, and multi-year spare parts agreements. For facilities operating continuous production lines where unplanned downtime carries significant cost, we recommend establishing a consignment or blanket order arrangement. Contact our team at [email protected] or +86 18359293191 to discuss volume pricing and dedicated stock reservation.
