Allen-Bradley 1794-ACN15/C Ruggedized ControlNet Adapter

Product Overview

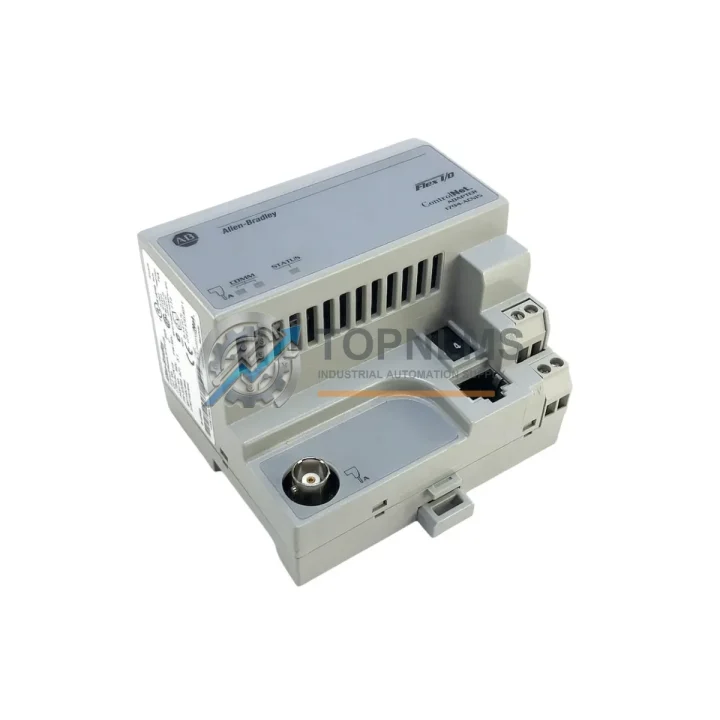

Allen-Bradley 1794-ACN15/C Ruggedized ControlNet Adapter for Harsh Industrial Environments

The Allen-Bradley 1794-ACN15/C is a Series C Flex I/O ControlNet Adapter engineered for mission-critical industrial automation applications where network reliability and environmental resilience are non-negotiable. Designed and manufactured by Rockwell Automation, this adapter module serves as the communication backbone between ControlNet field networks and Flex I/O distributed I/O systems, enabling deterministic, high-speed data exchange across demanding plant-floor architectures.

In environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — such as those found in oil and gas processing, mining operations, metal smelting, power generation, and continuous chemical production — the 1794-ACN15/C delivers the stable, uninterrupted communication performance that modern safety-critical control systems demand. Its ruggedized housing and industrial-grade electronics ensure consistent operation across the full IEC 61131-compliant automation lifecycle, from initial commissioning through decades of continuous service.

The adapter integrates seamlessly into Rockwell Automation’s Logix control architecture. When paired with ControlLogix or CompactLogix PLCs — such as the 1756-L71 or 1769-L30ER — the 1794-ACN15/C enables real-time I/O scanning over ControlNet with configurable RPI (Requested Packet Interval) rates, supporting both scheduled and unscheduled messaging. This makes it an ideal choice for applications requiring synchronized motion, process interlocking, and safety-rated I/O communication.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1794-ACN15/C is rarely deployed in isolation — it functions as the communication hub for an entire distributed I/O subsystem. In a typical heavy-industry control cabinet, this adapter coordinates data exchange between the ControlNet backbone and a bank of Flex I/O modules such as the 1794-IB16 16-point 24VDC digital input module and the 1794-OB16 16-point digital output module, both of which are engineered to withstand the same harsh-environment demands as the adapter itself.

For analog process control — common in oil refinery temperature loops, pressure regulation, and flow measurement — the adapter interfaces directly with the 1794-IE8 8-channel analog input module and the 1794-OE4 4-channel analog output module, enabling precise 4–20 mA signal transmission even in environments with significant ground noise and electromagnetic interference from variable frequency drives (VFDs) and large motor starters.

Power integrity is critical in continuous-process environments. The 1794-PS13 Flex I/O power supply provides the stable 24VDC rail that the 1794-ACN15/C and its associated I/O modules depend on, with built-in short-circuit and overload protection that prevents cascade failures during fault conditions. In redundant power architectures — standard practice in nuclear, petrochemical, and water treatment facilities — dual power supplies are often deployed alongside the adapter to eliminate single points of failure.

At the controller level, the 1794-ACN15/C is most commonly paired with a 1756-CNB or 1756-CNBR ControlNet Bridge module installed in a ControlLogix chassis, establishing the scheduled ControlNet connection that guarantees deterministic I/O update rates. For safety-rated applications compliant with IEC 61508 SIL 2 or SIL 3, the adapter can coexist on the same ControlNet segment as 1791DS series GuardI/O safety modules, provided the network is properly segmented and the safety PLC — such as the 1756-L61S GuardLogix controller — is configured with appropriate safety task priorities.

Communication integrity across long cable runs in electrically noisy environments is further protected by ControlNet’s inherent coaxial or fiber-optic physical layer. When fiber repeaters such as the 1786-RPFRL are used, the ControlNet segment can span distances exceeding 3 km, making the 1794-ACN15/C suitable for geographically distributed substations, pipeline monitoring stations, and large-scale water treatment plants where I/O nodes may be hundreds of meters from the central control room.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1794-ACN15/C is deployed in wellhead control panels, compressor station automation systems, and pipeline SCADA outstations. Its resistance to hydrocarbon vapors, wide operating temperature range, and deterministic ControlNet communication make it a preferred choice for emergency shutdown (ESD) and process safety management (PSM) systems where response time and reliability are governed by regulatory standards such as IEC 61511 and API RP 14C.

In mining and mineral processing, the adapter manages I/O for conveyor belt control systems, crusher automation, and flotation cell monitoring — environments where vibration levels routinely exceed those found in standard manufacturing. The Series C revision of the 1794-ACN15/C incorporates enhanced conformal coating on its PCB assembly, providing additional protection against conductive dust, sulfur compounds, and moisture ingress common in underground and open-pit mining operations.

In power generation and electrical utilities, including coal-fired, gas turbine, hydroelectric, and nuclear power plants, the adapter supports turbine control I/O, generator protection relay interfacing, and switchgear automation. Its compatibility with Rockwell Automation’s PlantPAx distributed control system (DCS) framework allows it to be integrated into plant-wide process control strategies alongside 1756-EN2T EtherNet/IP modules and 1756-DNB DeviceNet bridge modules, providing a unified, multi-network automation architecture.

In water and wastewater treatment facilities, the 1794-ACN15/C controls pump stations, chemical dosing systems, and filtration process I/O across geographically distributed sites. Its long-distance ControlNet capability, combined with the inherent noise immunity of the coaxial physical layer, ensures reliable operation in facilities where long cable runs pass through electrically noisy pump rooms and chemical storage areas.

In metallurgy and steel production, the adapter is found in rolling mill automation, electric arc furnace (EAF) control systems, and continuous casting line I/O — some of the most electrically hostile environments in industrial automation, where high-current bus bars, large induction motors, and arc furnace switching generate extreme electromagnetic interference. The 1794-ACN15/C’s IEC 61000-4 compliant EMC design ensures communication integrity even under these conditions.
