Allen-Bradley 1791-DSIB8XOB8 Replacement for 1791 Series

Product Overview

Allen-Bradley 1791-DSIB8XOB8 Replacement for 1791 Series: Smooth Migration from Legacy DeviceNet I/O Systems

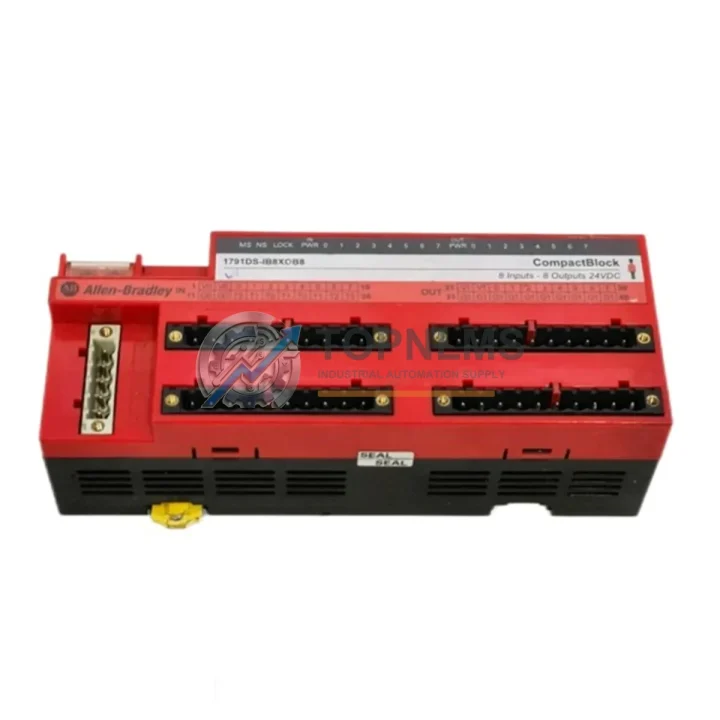

The Allen-Bradley 1791-DSIB8XOB8 is a Compact Block I/O module featuring 8 24VDC digital inputs and 8 24VDC digital outputs, communicating over the DeviceNet fieldbus network. As this module has reached end-of-life status in many installed base environments, facilities running legacy SLC 500, MicroLogix 1500, or ControlLogix-based DeviceNet networks are increasingly seeking verified replacement units to maintain production continuity without undertaking a full system redesign.

TOPNLMS maintains tested, ready-to-ship stock of the 1791-DSIB8XOB8 to support urgent replacement scenarios. Each unit undergoes functional verification prior to dispatch, and is backed by a 12-month warranty covering defects in hardware and communication performance.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 1791-DSIB8XOB8 is rarely an isolated action. In most DeviceNet-based control architectures, the module operates as one node among many on a trunk-and-drop network managed by a 1747-SDN DeviceNet Scanner installed in an SLC 500 rack, or a 1756-DNB DeviceNet Bridge module in a ControlLogix chassis. When sourcing a replacement 1791-DSIB8XOB8, it is advisable to simultaneously audit adjacent nodes on the same DeviceNet segment — particularly other 1791 Compact Block I/O modules such as the 1791-DSIB16 (16-input variant) or 1791-DSOB16 (16-output variant), which share the same end-of-life trajectory and are frequently found in the same panel.

The DeviceNet trunk cable and drop connectors — typically using the 1485 Series DeviceNet media — should be inspected during any module swap. Degraded trunk termination resistors or corroded micro-style connectors are a common root cause of intermittent node faults that are misdiagnosed as module failure. If the network is being partially modernized, the 1756-DNB or 1769-SDN CompactLogix DeviceNet Scanner can be retained to manage the remaining 1791-series nodes while newer 1734 POINT I/O or 1769 Compact I/O modules are introduced on EtherNet/IP segments in parallel.

For facilities migrating away from DeviceNet entirely, the 1791-DSIB8XOB8 can be replaced functionally by a 1734-IB8S (POINT I/O 8-input safety module) or a standard 1734-IB8 / 1734-OB8 combination on an EtherNet/IP adapter such as the 1734-AENT, eliminating the DeviceNet infrastructure while preserving the same I/O point count and field wiring. In such migrations, the 1756-L7x or 1756-L8x ControlLogix controller with a 1756-EN2T EtherNet/IP communication module typically serves as the new network master, and the existing RSLogix 5000 or Studio 5000 project can be adapted with minimal I/O tree restructuring.

Where cabinet space is constrained and a like-for-like block I/O form factor is preferred, the 1791ES-IB8XOBV4 (Safety Compact Block I/O) or the 1791D-series DeviceNet modules offer a direct dimensional match. Power supply modules such as the 1606-XLP series 24VDC power supplies are recommended to ensure stable auxiliary power to the replacement module, particularly in older panels where the original power supply may be undersized for expanded I/O loads.

Retrofit Guidance FAQ

Q: Do I need to modify my PLC program after replacing the 1791-DSIB8XOB8?
A: In most cases, no. The 1791-DSIB8XOB8 is a Group 2 Only DeviceNet slave. As long as the replacement unit is set to the same node address using the rotary switch and the EDS file in RSNetWorx for DeviceNet matches, the scanner (1747-SDN or 1756-DNB) will recognize the module without requiring changes to the PLC ladder logic or I/O mapping.

Q: Is the field wiring compatible with the replacement unit?
A: Yes. The 1791-DSIB8XOB8 uses a removable terminal block. The existing field wiring harness can be disconnected from the faulty module and reconnected to the replacement unit without re-termination, provided the wiring is in good condition. Verify 24VDC auxiliary power polarity before energizing.

Q: What DeviceNet communication settings need to be verified?
A: Set the node address on the rotary switch to match the original module’s address. Baud rate is auto-detected on DeviceNet. After power-up, use RSNetWorx for DeviceNet to browse the network and confirm the node appears with the correct EDS identity. No baud rate or I/O size reconfiguration is typically required for a like-for-like swap.

Q: Can this module be used in a ControlLogix system?
A: Yes, via a 1756-DNB DeviceNet Bridge module in the ControlLogix chassis. The 1791-DSIB8XOB8 operates as a DeviceNet slave regardless of the master controller platform — SLC 500, ControlLogix, CompactLogix, or MicroLogix 1500 with a 1761-NET-DNI adapter.

Q: What is the physical installation space requirement?
A: The 1791-DSIB8XOB8 mounts on standard 35mm DIN rail or can be panel-mounted. Its compact block form factor is unchanged from the original, so no cabinet modification or additional DIN rail space is required for a direct replacement.

Q: How do I handle a partial system migration where some nodes are being upgraded to EtherNet/IP?
A: The DeviceNet network can coexist with EtherNet/IP segments during a phased migration. The 1791-DSIB8XOB8 continues to operate on the DeviceNet segment while new 1734 POINT I/O or 1769 Compact I/O modules are commissioned on EtherNet/IP. The ControlLogix controller supports both networks simultaneously via separate communication modules in the same chassis.

Warranty Assurance

Every 1791-DSIB8XOB8 unit shipped by TOPNLMS is subject to a pre-shipment functional test covering digital input signal detection, output switching, DeviceNet communication handshake, and auxiliary power integrity. Units are packaged in anti-static protective packaging with physical protection for the terminal block and DeviceNet connector.

All units carry a 12-month warranty from the date of shipment. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will provide a replacement unit or issue a refund, subject to return inspection. Warranty claims are processed within 3 business days of receipt of the returned unit.

For urgent production-down situations, expedited shipping is available to most destinations. Standard lead time from order confirmation to dispatch is 1–3 business days. Tracking information is provided upon shipment.

For procurement inquiries, bulk orders, or technical pre-sales questions regarding compatibility with your specific system configuration, contact our industrial automation team directly.
