Allen-Bradley 1788-CNC Ruggedized CNC Interface Module for Harsh Environments

Product Overview

Allen-Bradley 1788-CNC Ruggedized CNC Interface Module for Harsh Environments

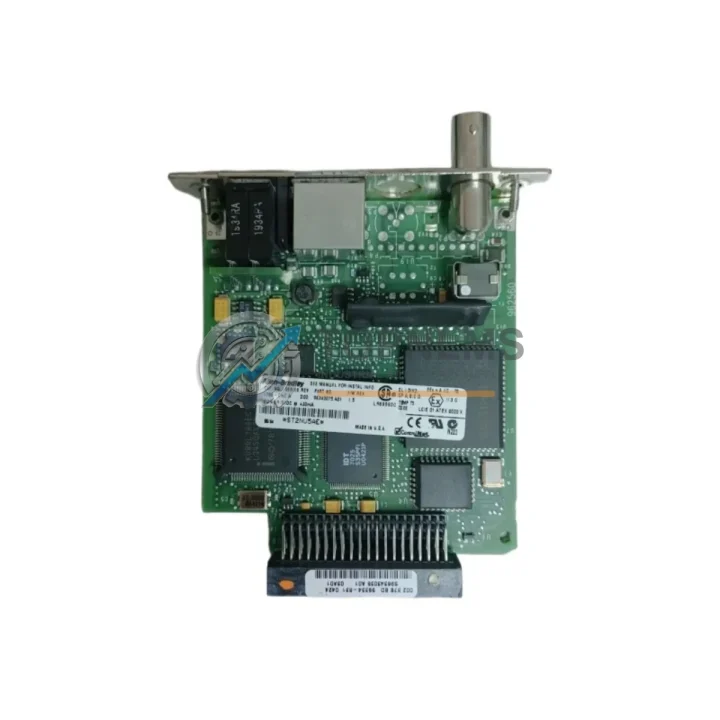

The Allen-Bradley 1788-CNC is a high-performance ControlNet CNC Interface Module engineered for demanding industrial automation environments where reliability, signal integrity, and continuous uptime are non-negotiable. Designed to bridge CNC motion control systems with Rockwell Automation’s ControlNet communication backbone, the 1788-CNC delivers deterministic, high-speed data exchange between PLC-5 and SLC-500 programmable logic controllers and CNC machine tool platforms. Whether deployed in a precision machining cell, a high-throughput stamping line, or a multi-axis motion control cabinet, this module is built to perform where lesser components fail.

Industrial facilities operating in high-temperature foundries, high-humidity coastal plants, dust-laden mining galleries, or vibration-intensive press shops demand components that go beyond standard commercial-grade tolerances. The 1788-CNC is rated for continuous operation across a wide industrial temperature range, with robust EMI/RFI shielding that maintains signal fidelity even in environments saturated with variable-frequency drive (VFD) switching noise, arc welding interference, and high-current bus transients. Its conformal-coated PCB construction resists moisture ingress and corrosive airborne particulates, making it a dependable choice for control cabinets in water treatment facilities, offshore platforms, and chemical processing plants.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1788-CNC does not operate in isolation — it is a critical node within a broader Rockwell Automation control architecture. In a typical PLC-5-based control cabinet, the 1788-CNC works in concert with the 1771-OFE2 Analog Output Module to deliver precise velocity and position reference signals to servo drives, while the 1771-IFE Analog Input Module feeds real-time feedback from encoders and resolvers back into the control loop. ControlNet trunk cabling, terminated with 1786-RPA/B ControlNet Repeaters, ensures that the deterministic network remains stable even when cable runs extend across large plant floors subject to ground potential differences and induced EMF from heavy machinery.

For motion-critical applications, the 1788-CNC is frequently paired with the 1756-M02AE Ultra3000 Motion Module in hybrid architectures where legacy PLC-5 systems are being incrementally migrated toward ControlLogix platforms. The 1756-CNB ControlNet Bridge Module facilitates this coexistence, allowing the 1788-CNC to remain active on the ControlNet segment while new ControlLogix I/O is introduced in parallel. Safety interlocking is typically handled by a dedicated 1791DS-IB8XOBV4 GuardLogix Safety I/O Module, which monitors E-stop circuits, light curtains, and safety gate switches — ensuring that any fault condition detected by the CNC interface triggers a controlled, safe stop rather than an uncontrolled machine halt.

Power quality is equally critical. Industrial-grade 1606-XLP72E Power Supplies from the Allen-Bradley Bulletin 1606 series provide regulated 24 VDC to the control cabinet, with built-in hold-up time to ride through momentary voltage sags common in heavy industrial facilities. Surge protection is further reinforced by 1492-SP Series Terminal Block Fuse Holders, which protect individual I/O circuits from overcurrent events caused by field wiring faults. Communication integrity across the ControlNet segment is monitored by the 1788-CNCR ControlNet Scanner, which provides network diagnostics and node health status visible from RSNetWorx for ControlNet software.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1788-CNC has been deployed in wellhead automation panels where PLC-5 controllers manage pump jack sequencing, valve actuation, and SCADA data aggregation. The module’s deterministic ControlNet communication ensures that position feedback from downhole sensors reaches the controller within guaranteed scan-cycle windows, preventing the timing jitter that could cause false fault trips in pressure-sensitive production environments. Offshore platform control rooms, where salt-laden humid air and constant mechanical vibration from diesel generators are unavoidable, rely on the conformal coating and robust connector design of the 1788-CNC to maintain years of uninterrupted service between planned maintenance shutdowns.

In underground coal and hard-rock mining, where explosive atmospheres and continuous vibration from blasting and heavy haulage equipment are constant concerns, the 1788-CNC is installed within certified explosion-proof enclosures or purged-and-pressurized control panels. Its compatibility with the PLC-5 platform — still widely deployed in legacy mine automation systems — makes it an essential spare for maintaining production continuity without the cost and risk of a full control system upgrade. Power generation facilities, including coal-fired and hydroelectric plants, use the 1788-CNC in turbine governor control panels and excitation system interfaces, where the ControlNet backbone provides the real-time performance required for grid-synchronization sequences. Water treatment and wastewater facilities operating 24/7 depend on the module’s long-term reliability to manage aeration blower sequencing, chemical dosing pump control, and SCADA integration without unplanned downtime that could compromise public health compliance.

In metallurgical and steel mill environments — among the harshest industrial settings on earth — the 1788-CNC withstands radiated heat from furnaces, airborne iron oxide particulates, and the intense electromagnetic fields generated by induction heating equipment and large DC drive systems. Rolling mill control systems built on PLC-5 platforms continue to rely on this module for coordinated multi-stand speed control, where microsecond-level synchronization between CNC axes directly determines strip thickness tolerances and product quality.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Allen-Bradley 1788-CNC?
All 1788-CNC units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions. Units are inspected and function-tested prior to dispatch, and warranty claims are supported with direct technical assistance from our engineering team.

Q2: How is the 1788-CNC tested before shipment?
Each unit undergoes a multi-stage outgoing quality inspection that includes visual inspection for physical damage, connector integrity verification, firmware version confirmation, and where applicable, powered functional testing on a compatible PLC-5 or SLC-500 test bench. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1788-CNC compatible with my existing PLC-5 or SLC-500 system?
Yes. The 1788-CNC is designed specifically for integration with Allen-Bradley PLC-5 and SLC-500 chassis. It communicates over the ControlNet protocol and is fully compatible with RSLogix 5 and RSLogix 500 programming environments. If you are operating a mixed architecture with ControlLogix, please contact our technical team to confirm the appropriate bridge or scanner configuration.

Q4: Can TOPNLMS support long-term or repeat supply of the 1788-CNC?
Yes. TOPNLMS maintains dedicated inventory of Allen-Bradley legacy and current-production modules to support planned maintenance programs, emergency breakdowns, and capital project builds. We offer volume pricing for MRO contracts and can provide lead-time commitments for scheduled procurement. Contact us at [email protected] or +86 18359293191 to discuss your supply requirements.
