Allen-Bradley 1785-PFB Replacement/Upgrade for PLC-5

Product Overview

Allen-Bradley 1785-PFB Replacement/Upgrade Solution for PLC-5: Seamless PROFIBUS-DP Migration

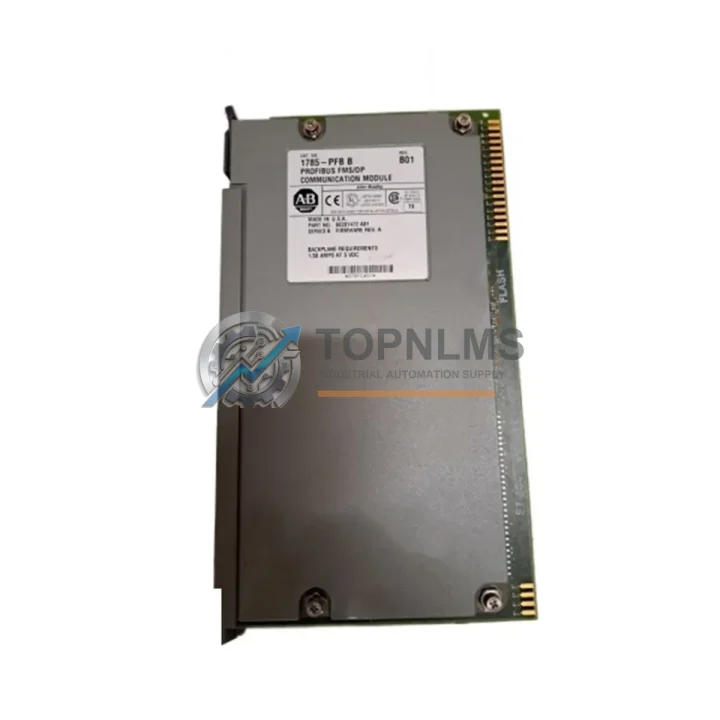

The Allen-Bradley 1785-PFB is a PROFIBUS-DP communication module designed for the PLC-5 Series programmable logic controller platform. As the PLC-5 family has reached end-of-life status, facilities running legacy automation architectures face increasing pressure to source reliable replacement units or plan a structured migration to a modern control platform. TOPNLMS supplies verified 1785-PFB modules with full functional testing, enabling your engineering team to restore production continuity without committing to an immediate full-system overhaul.

Whether your objective is a direct drop-in replacement to extend the operational life of an existing PLC-5 rack, or a phased migration toward a ControlLogix or CompactLogix architecture, the 1785-PFB serves as a critical bridge component. Its PROFIBUS-DP master/slave capability allows it to communicate with field devices — including variable frequency drives, remote I/O adapters, valve manifolds, and intelligent sensors — using the same network topology already installed on your plant floor.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1785-PFB replacement or migration rarely involves a single module in isolation. In practice, the PROFIBUS-DP network connected to this module typically interfaces with a broader ecosystem of field and control-layer components. During the retrofit process, engineering teams commonly evaluate or replace the 1785-KE serial communication module to maintain DH-485 connectivity alongside the PROFIBUS segment. Where the existing PLC-5 processor — such as a 1785-L40B or 1785-L80B — is also approaching end-of-life, a parallel processor swap is often scheduled in the same maintenance window to avoid repeat downtime.

On the field device side, PROFIBUS-DP slaves connected to the 1785-PFB network may include PowerFlex 700 drives with a PROFIBUS-DP communication adapter card, as well as 1794-APB FLEX I/O PROFIBUS adapters that aggregate distributed analog and digital I/O signals. Replacing or verifying these slave nodes is a standard step in any PROFIBUS segment audit. For facilities migrating toward a ControlLogix platform, the 1756-PDPS PROFIBUS-DP slave module for the ControlLogix chassis provides a forward-compatible path, allowing the new controller to participate in the existing PROFIBUS network while legacy devices are phased out incrementally.

Power supply integrity is another critical factor. The 1771-P7 or equivalent PLC-5 chassis power supply should be inspected and replaced if capacitor aging is suspected, as power instability is a leading cause of communication module faults that are often misdiagnosed as module failures. Similarly, the 1785-BCM or 1785-BEM battery and memory modules should be verified to protect ladder logic programs during the replacement procedure. For sites requiring signal isolation between the PROFIBUS segment and legacy 4–20 mA analog loops, DIN-rail-mounted signal isolators and repeaters are recommended to maintain network integrity across long cable runs or electrically noisy environments.

Retrofit Guidance FAQ

Q: Can I swap the 1785-PFB without modifying the existing PROFIBUS wiring?
A: Yes. The 1785-PFB uses a standard DB9 PROFIBUS connector. A direct module replacement requires no wiring changes provided the termination resistors and cable shielding are intact. Verify bus termination at both ends of the segment before powering up.

Q: Do I need to re-download the PLC-5 ladder program after replacement?
A: If the replacement module is the same catalog number (1785-PFB), the existing program and I/O configuration remain valid. You will need to re-import the GSD file in RSNetWorx for PROFIBUS and re-download the network configuration to the module. The PLC-5 processor program itself does not require modification.

Q: Is the 1785-PFB compatible with all PLC-5 chassis sizes?
A: The module occupies one standard I/O slot in any 1771-series chassis used with PLC-5 processors, including 4-slot, 8-slot, 12-slot, and 16-slot configurations. Slot addressing must be verified in the processor I/O configuration table.

Q: What PROFIBUS baud rates are supported, and does the replacement module need to match the existing network speed?
A: The 1785-PFB auto-detects baud rate from the network master. The replacement module will synchronize to the existing network speed automatically during startup. No manual baud rate configuration is required on the module itself.

Q: Can this module be used in a migration to ControlLogix?
A: The 1785-PFB is a PLC-5 platform module and cannot be installed in a ControlLogix 1756 chassis. For ControlLogix-based PROFIBUS-DP integration, the 1756-PDPS is the appropriate migration target. The 1785-PFB is recommended as a bridge solution to maintain production while the ControlLogix migration is planned and staged.

Warranty Assurance

Every 1785-PFB unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification procedure that includes power-on self-test confirmation, PROFIBUS port continuity check, and firmware version logging. Units that do not pass testing are not shipped.

In the event of a confirmed module defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund based on the customer’s preference. Our technical support team is available to assist with installation questions, compatibility verification, and fault diagnosis via email at [email protected] or by phone at +86 18359293191. Response time for warranty and technical inquiries is typically within one business day.

Shipments are dispatched from Xiamen, China, with tracking provided for all orders. Express international shipping options are available for urgent replacement requirements. Customers requiring documentation for incoming inspection — including test reports or certificate of conformance — may request these at the time of order.
