Allen-Bradley 1785-ME64 Replacement/Upgrade for PLC-5

Product Overview

Allen-Bradley 1785-ME64 Replacement/Upgrade Solution for PLC-5: Seamless Transition from Legacy Memory to Modern Control Architecture

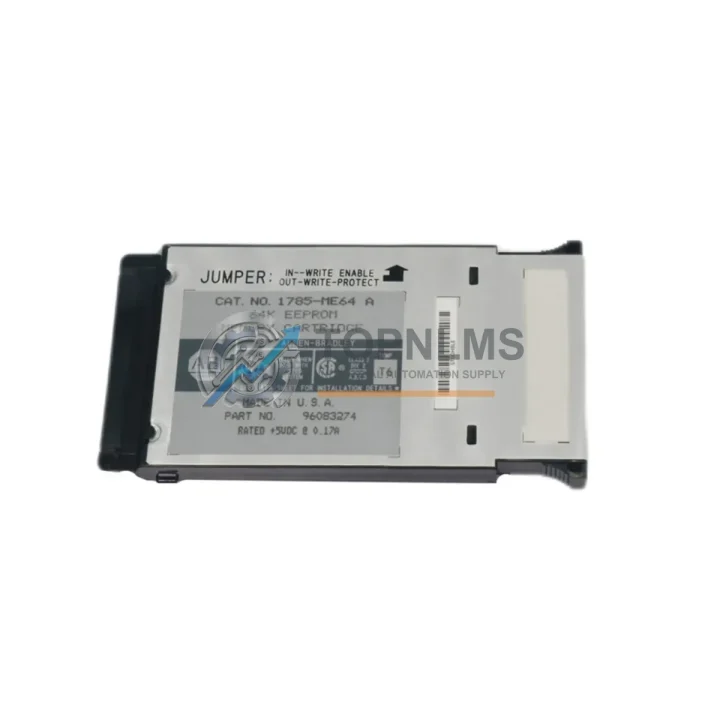

The Allen-Bradley 1785-ME64 is a 64K EEPROM Memory Cartridge designed for the PLC-5 programmable controller family — one of the most widely deployed legacy control platforms in discrete manufacturing, process automation, and material handling applications. As Rockwell Automation has officially discontinued the PLC-5 product line, facilities that continue to rely on 1785-ME64 memory cartridges face increasing procurement risk, extended lead times, and the growing threat of unplanned downtime caused by memory module failure or data corruption.

This listing provides a verified, tested replacement and upgrade solution for the 1785-ME64, sourced from qualified industrial supply channels. Whether your objective is a direct like-for-like swap to restore a failed unit, or a phased migration toward a modern ControlLogix or CompactLogix architecture, this module supports both strategies with minimal disruption to your existing control system.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the 1785-ME64 is rarely an isolated action. In most PLC-5 installations, the memory cartridge works in concert with a broader system of I/O modules, communication adapters, and power infrastructure. Understanding the full upgrade path helps maintenance engineers and procurement teams plan for minimal downtime and maximum compatibility.

For facilities performing a direct swap, the 1785-ME64 replacement slots into the existing PLC-5 processor without any changes to the 1771 I/O chassis or field wiring. The 1771-OBD digital output modules and 1771-IBD digital input modules continue to operate normally, and the existing Remote I/O (RIO) network — typically connecting remote 1771 I/O racks via coaxial cable — remains fully intact. The 1785-KA5 communication adapter, if present, continues to bridge the DH+ network without reconfiguration.

For facilities planning a phased migration to ControlLogix, the process typically begins with installing a 1756-L71 or 1756-L73 processor in a new 1756-A7 or 1756-A13 chassis, alongside a 1756-DHRIO module to maintain DH+ and Remote I/O connectivity during the transition period. This allows the new ControlLogix processor to communicate with legacy 1771 I/O racks while the program is converted from RSLogix 5 format to Studio 5000 Logix Designer. The 1756-EN2T EtherNet/IP communication module is commonly added at this stage to integrate the modernized controller into the plant’s Ethernet backbone.

Panel space is a frequent constraint in legacy installations. The 1756-PA72 power supply is compact enough to fit alongside existing PLC-5 hardware in many standard control cabinets, and the 1492-AIFM analog interface modules allow existing field wiring to be re-terminated without cutting or re-labeling cables. For installations with 1771-ASB remote I/O adapter modules, the 1756-DHRIO provides a direct communication bridge, preserving the remote I/O architecture while the main processor is upgraded.

Signal isolation requirements should also be reviewed during migration. Where the legacy system used 1771-IFE analog input modules with built-in isolation, equivalent isolation must be maintained in the new architecture — either through isolated analog input modules in the 1756 platform or through external signal isolators installed at the terminal strip level.

Retrofit Guidance FAQ

Q: Can I swap the 1785-ME64 without reprogramming the PLC-5?
A: Yes. The 1785-ME64 is a non-volatile EEPROM memory cartridge. If the replacement unit is blank, you will need to reload the program from a backup using RSLogix 5 or an APS (Advanced Programming Software) backup file. If the original program is stored on the cartridge, a direct swap restores operation without reprogramming — provided the processor model and firmware revision are compatible.

Q: Does replacing the memory cartridge affect the DH+ or Remote I/O network?
A: No. The memory cartridge does not control communication parameters. DH+ node addresses, baud rates, and Remote I/O rack configurations are stored in the processor’s battery-backed RAM, not on the EEPROM cartridge. These settings are unaffected by a cartridge swap.

Q: What programming software is required to restore a program to the 1785-ME64?
A: RSLogix 5 (version 7.x or later) or the legacy APS software is required. The program must be saved in .RSS format and transferred to the cartridge via the PLC-5 processor’s programming port using a 1784-U2DHP USB-to-DH+ adapter or a 1784-KTX Data Highway Plus interface card.

Q: Is the 1785-ME64 compatible with all PLC-5 processor variants?
A: The 1785-ME64 is compatible with the PLC-5/10, PLC-5/15, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/40L, PLC-5/60, PLC-5/60L, and PLC-5/80 processors. It is not compatible with the PLC-5/250 or PLC-5/VME variants, which use different memory architectures.

Q: What is the physical installation procedure?
A: Power down the PLC-5 processor before inserting or removing the memory cartridge. The 1785-ME64 inserts into the dedicated cartridge slot on the front face of the PLC-5 processor module. No tools are required. After insertion, power up the processor and verify the memory cartridge status indicator (MEM) on the processor faceplate.

Q: Can I migrate my PLC-5 program to ControlLogix without rewriting it from scratch?
A: Rockwell Automation’s Migration Assistant tool within Studio 5000 Logix Designer supports automated conversion of PLC-5 ladder logic to ControlLogix format. However, PLC-5 specific instructions (such as BT — Block Transfer — and certain PID configurations) require manual review and adjustment. A full functional test on a bench setup is strongly recommended before cutover.

Warranty Assurance

All 1785-ME64 replacement units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, memory read/write cycle testing, and physical inspection of the cartridge connector and housing.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing. Our technical team is available to assist with compatibility verification, installation guidance, and post-installation troubleshooting via email at [email protected] or by phone at +86 18359293191.

Units are shipped with anti-static packaging, individual serial number labeling, and a test report card. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units. Express international shipping options are available for urgent replacement requirements.

Procurement teams requiring documentation for vendor qualification, incoming inspection, or maintenance records can request a Certificate of Conformance (CoC) and functional test report at the time of order.
