Allen-Bradley 1785-ME16 Replacement for PLC-5 Series

Product Overview

Allen-Bradley 1785-ME16 Replacement for PLC-5 Series: Smooth Migration & Legacy System Upgrade

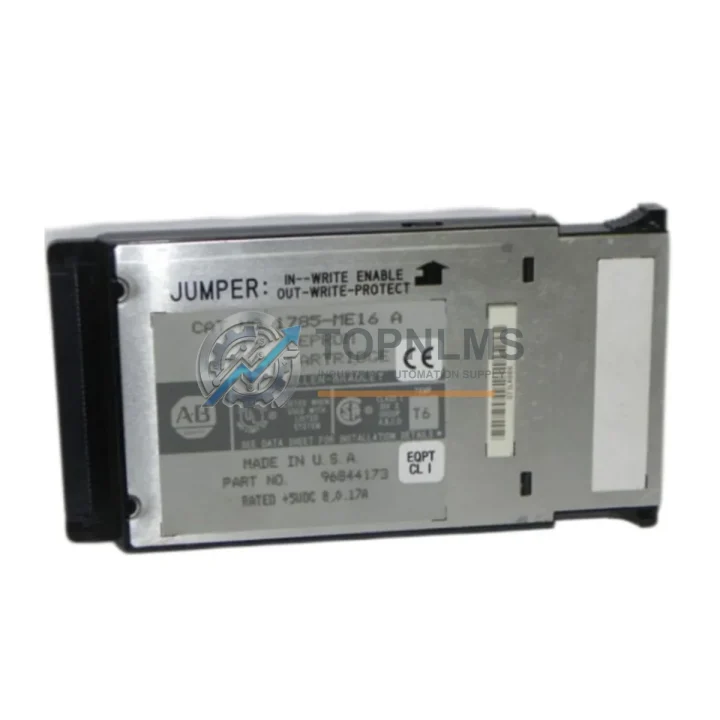

The Allen-Bradley 1785-ME16 is a 16K EEPROM memory cartridge designed for the PLC-5 programmable controller family. As legacy PLC-5 systems approach end-of-life and original 1785-ME16 units become increasingly difficult to source, plant engineers and maintenance teams face mounting pressure to secure reliable replacements that preserve existing ladder logic, I/O mapping, and communication configurations without triggering a full control system overhaul.

TOPNLMS supplies the 1785-ME16 as a direct drop-in replacement for installed PLC-5 racks. Each unit is tested prior to shipment and backed by a 12-month warranty, giving procurement teams and system integrators the confidence to stock critical spares or execute phased migration projects with minimal operational risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1785-ME16 replacement rarely involves the memory cartridge alone. In practice, migration teams working on PLC-5 systems encounter a cluster of interdependent components that must be evaluated in parallel to ensure a smooth cutover.

The most common starting point is the programming interface. Technicians typically use a 1784-KTX or 1784-PCMK ISA/PCMCIA programming card — or, on modern laptops, a 1784-U2DHP USB-to-DH+ adapter — to re-download the ladder logic program from RSLogix 5 after the cartridge swap. Confirming cable compatibility before the maintenance window prevents last-minute delays.

For systems running Remote I/O (RIO) networks, the 1771-ASB remote I/O adapter and associated 1771-IFM or 1771-OFM I/O modules remain in service during a memory cartridge replacement, provided the rack backplane and power supply — typically a 1771-P4S or 1771-P7 — are functioning correctly. Verifying backplane voltage and slot addressing before re-energizing the system is standard practice.

Where the upgrade scope extends beyond the memory cartridge to a partial platform migration, engineers often introduce a 1756-L73 ControlLogix controller alongside the existing PLC-5 rack, using a 1756-DHRIO communication module to bridge the legacy DH+ network. This hybrid architecture allows the new controller to assume supervisory functions while the PLC-5 continues managing field I/O — reducing downtime to scheduled switchover windows rather than emergency shutdowns.

HMI continuity is another consideration. Panel View terminals communicating over DH+ — such as the PanelView 550 or PanelView 900 — typically require no reconfiguration when only the memory cartridge is replaced, as the controller node address and DH+ baud rate remain unchanged. However, if the migration path leads toward a ControlLogix platform, updating the HMI application to EtherNet/IP using a PanelView Plus 7 is a common parallel workstream.

Signal conditioning and isolation should also be reviewed. Legacy analog I/O wired through 1771-IFE or 1771-OFE modules may benefit from inline signal isolators if cable runs have been extended or if ground loop issues have been reported. Addressing these at the time of the memory cartridge replacement avoids repeat maintenance visits.

Retrofit Guidance FAQ

Q: Do I need to re-enter my ladder logic program after replacing the 1785-ME16?
A: Yes. EEPROM cartridges store the program non-volatilely, but the replacement unit ships blank. You must re-download the program from RSLogix 5 via a 1784-KTX, 1784-PCMK, or 1784-U2DHP programming cable. Ensure you have a verified backup of the .RSS project file before beginning.

Q: Is the 1785-ME16 compatible with all PLC-5 variants?
A: The 1785-ME16 is compatible with PLC-5/10, 5/12, 5/15, 5/25, 5/30, 5/40, 5/60, and 5/80 processors. It is not compatible with the PLC-5/250 or PLC-5/VME variants, which use different memory architectures.

Q: Will replacing the memory cartridge affect my DH+ or RIO network configuration?
A: No. Network node addresses, baud rates, and RIO rack/group assignments are stored in the processor’s battery-backed RAM, not in the EEPROM cartridge. These settings are preserved during a cartridge swap.

Q: Can I install the 1785-ME16 while the PLC-5 rack is powered?
A: No. The cartridge must be inserted and removed with the processor powered off to prevent data corruption and potential hardware damage.

Q: What if my program exceeds 16K words?
A: The 1785-ME16 supports up to 16K words of user program memory. If your application requires more capacity, evaluate the 1785-ME32 (32K) or consider a platform migration to ControlLogix, which supports significantly larger program sizes.

Q: How do I verify the cartridge is recognized after installation?
A: Power on the processor and observe the FAULT LED. If the cartridge is seated correctly and the program download is successful, the processor should transition to RUN mode without faults. Use RSLogix 5 to confirm processor status online.

Warranty Assurance

Every 1785-ME16 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification to confirm EEPROM integrity and physical connector condition. In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on your maintenance schedule.

Orders are typically processed and shipped within 1–3 business days from our Xiamen warehouse. Express international freight options are available for urgent replacement requirements. All units are packaged in anti-static protective packaging suitable for sensitive electronic components.

For procurement inquiries, bulk pricing, or technical pre-sales questions, contact our industrial automation team directly.
