Allen-Bradley 1785-LT3 Original Industrial Spare PLC-5 Compatible

Product Overview

Allen-Bradley 1785-LT3 Original Industrial Spare PLC-5 Compatible: Ensuring System Stability in Demanding Environments

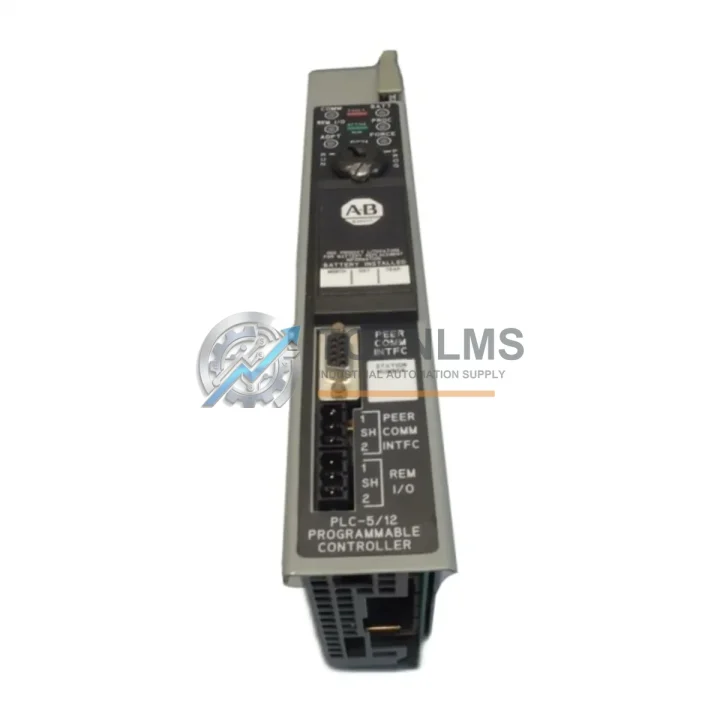

The Allen-Bradley 1785-LT3 is a genuine PLC-5/12 processor module engineered for continuous-duty industrial control applications. As a core component of Rockwell Automation’s legacy PLC-5 platform, this processor module remains a critical spare for facilities operating aging but mission-critical control architectures across discrete manufacturing, process control, material handling, and utilities infrastructure. Sourced as an original spare, the 1785-LT3 provides maintenance teams with a direct, drop-in replacement that preserves existing ladder logic programs, I/O configurations, and communication topologies without requiring costly system re-engineering.

In facilities where PLC-5 systems continue to anchor production lines, unplanned processor failure represents one of the highest-risk downtime events. A verified, tested 1785-LT3 on the shelf transforms a potential multi-day outage into a sub-hour swap. Every unit dispatched from TOPNLMS undergoes functional verification prior to shipment, and is backed by a 12-month warranty covering operational defects — giving procurement and maintenance managers the confidence to stock this module as a primary or secondary spare.

Critical Technical Specs

Preventive Maintenance Strategy

A processor module failure rarely occurs in isolation. When scheduling a planned replacement or responding to an unplanned outage involving the 1785-LT3, experienced maintenance engineers treat the event as an opportunity to audit the entire control cabinet for latent wear. The 1771 I/O chassis that houses the 1785-LT3 relies on a healthy ecosystem of supporting modules — any one of which can degrade system reliability if overlooked.

Begin with the power supply: the 1771-P4 or 1771-P4S power supply module should be inspected for output voltage stability and capacitor aging. A marginal power supply is a common root cause of intermittent processor faults. Next, audit the 1771-OBD and 1771-IBD discrete I/O modules installed in the same chassis — connector oxidation and relay contact wear are frequent failure points in high-cycle applications. If the system uses analog control loops, the 1771-IFE analog input module and 1771-OFE analog output module should be checked for calibration drift and signal integrity.

Communication health is equally important. The 1785-KA5 DH+ communication adapter and any 1784-KTX or 1784-PKTX Data Highway Plus interface cards used for programming or SCADA connectivity should be verified for link stability. Intermittent DH+ faults are often misdiagnosed as processor issues. If the installation includes remote I/O drops, inspect the 1771-ASB remote I/O adapter at each drop for address switch integrity and cable termination.

For facilities running mixed PLC-5 and ControlLogix architectures, the 1756-DHRIO ControlLogix DH+/RIO bridge module is a strategic spare that enables seamless migration paths without decommissioning legacy 1771 I/O. Additionally, the 1785-ME32 EEPROM memory module should be part of every 1785-LT3 spare kit — it stores the processor program and ensures rapid recovery after a CPU swap without requiring a laptop connection to the programming terminal. Finally, review the condition of the 1771 chassis backplane connectors and chassis wiring harnesses; corroded or loose backplane connections are a silent cause of sporadic I/O faults that can be incorrectly attributed to processor failure.

Stocking these components alongside the 1785-LT3 as a coordinated spare kit reduces mean time to repair (MTTR) and eliminates secondary delays caused by discovering additional failed components only after the processor has been replaced.

Strategic Replacement Solutions

The 1785-LT3 addresses one of the most persistent challenges in industrial maintenance: sustaining reliable operation of a proven, stable control platform long after the original manufacturer has discontinued active production. Rather than forcing a full system migration — with its associated engineering costs, revalidation requirements, and production downtime — stocking genuine 1785-LT3 processor modules allows facilities to extend the operational life of their PLC-5/12 systems by years or decades.

Direct replacement with an original 1785-LT3 preserves 100% compatibility with existing 1771 I/O modules, DH+ network topology, and RSLogix 5 programming environments. There is no need to remap I/O addresses, rewrite ladder logic, or retrain operators. For facilities with validated processes — particularly in pharmaceutical, food and beverage, or chemical manufacturing — this compatibility eliminates the revalidation burden that a platform migration would trigger.

For maintenance planners managing multiple PLC-5 installations across a site, a centralized spare pool of 1785-LT3 modules provides the flexibility to respond to failures at any node without waiting for emergency procurement lead times. Each unit from TOPNLMS is tested, documented, and shipped with full traceability, supporting your internal maintenance records and audit requirements.

Support FAQ

Q1: Is the 1785-LT3 compatible with all 1771 I/O chassis configurations?
The 1785-LT3 (PLC-5/12) is designed for use in the 1771 I/O chassis platform and is compatible with standard 1771-series I/O modules. It supports up to 512 discrete I/O points across local and remote chassis. Always verify chassis slot configuration and power supply capacity before installation. If you need compatibility confirmation for a specific chassis model, contact our technical team before ordering.

Q2: What does the 12-month warranty cover, and how is it handled?
All 1785-LT3 units supplied by TOPNLMS carry a 12-month warranty against operational defects from the date of shipment. Each module undergoes functional testing prior to dispatch. In the event of a warranty claim, we provide a replacement or full refund after fault verification. Warranty claims are processed directly through our support team at [email protected].

Q3: How quickly can the 1785-LT3 be shipped, and what documentation is provided?
In-stock units are typically dispatched within 1–3 business days. Each shipment includes a packing list, test confirmation, and tracking information. Express shipping options are available for emergency maintenance situations. Contact us directly for lead time confirmation on your specific order quantity.

Q4: How should I verify the 1785-LT3 is functioning correctly after installation?
After installing the replacement 1785-LT3, restore the program from the 1785-ME32 EEPROM memory module or upload from your programming terminal via RSLogix 5. Verify processor status indicators (RUN, FLT, BATT LEDs), confirm DH+ communication link status, and perform a full I/O force test on critical outputs before returning the system to production. If the BATT LED is illuminated, replace the lithium battery (1770-XY or equivalent) immediately to protect program memory.
