Allen-Bradley 1785-L80C15 Ruggedized ControlNet Processor Module

Product Overview

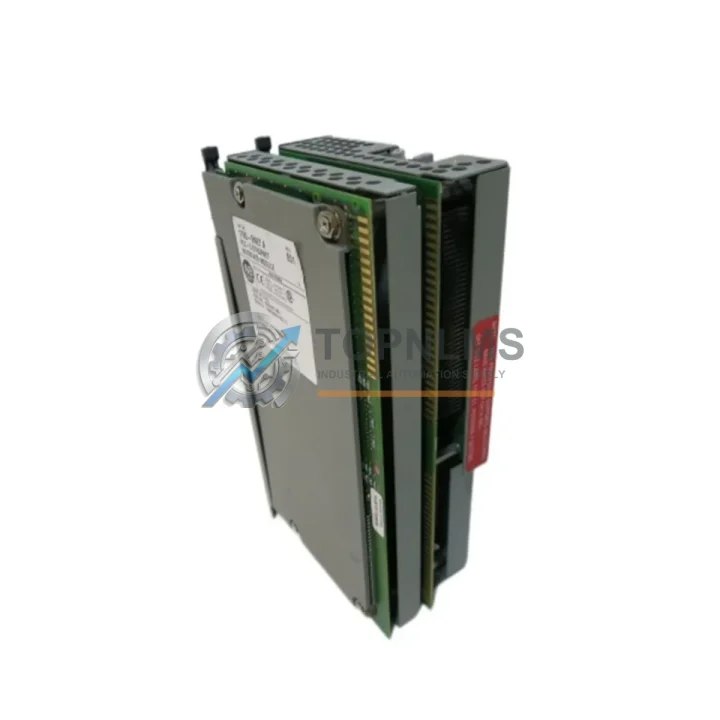

Allen-Bradley 1785-L80C15 Ruggedized ControlNet Processor Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1785-L80C15 is a high-performance PLC-5/80 ControlNet Processor Module engineered to deliver uncompromising reliability in the most demanding industrial environments. Designed as part of Rockwell Automation’s proven PLC-5 platform, this processor module supports ControlNet communication at its core, enabling deterministic, high-speed data exchange across complex control architectures. Whether deployed in continuous process lines, heavy manufacturing cells, or safety-critical infrastructure, the 1785-L80C15 is built to sustain stable operation where lesser systems fail.

Industrial facilities routinely expose control hardware to extreme thermal cycling, persistent vibration, airborne particulates, corrosive atmospheres, and intense electromagnetic interference. The 1785-L80C15 addresses each of these challenges through robust hardware design, conformal-coated circuit boards, and a sealed backplane interface that resists ingress from dust and moisture. Its wide operating temperature range and high-immunity EMC design make it a trusted choice for engineers specifying control systems in oil refineries, gas compression stations, mineral processing plants, and power generation facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1785-L80C15 processor does not operate in isolation — it anchors a broader control architecture that depends on the coordinated performance of multiple ruggedized components. In a typical PLC-5 ControlNet system, the processor communicates with remote I/O racks via the 1771-ACN15 ControlNet Adapter, which bridges field-level signals to the processor’s ControlNet port with deterministic scan rates. Discrete input and output signals are handled by modules such as the 1771-IB16 24VDC input module and the 1771-OB16 output module, both of which are rated for industrial noise environments and slot directly into the 1771 I/O chassis alongside the processor.

For analog process control — critical in flow, pressure, and temperature loops — the 1771-IF8 analog input module and 1771-OF8 analog output module provide 12-bit resolution with signal conditioning suited to noisy plant floors. Power integrity is maintained by the 1771-P4S or 1771-P6S power supply modules, which deliver regulated DC power to the chassis backplane and include built-in short-circuit and over-voltage protection. In applications where the PLC-5 system must interface with variable frequency drives or motor control centers, the 1771-SDN DeviceNet Scanner module extends the communication reach of the 1785-L80C15 to field devices on the DeviceNet network.

Safety-critical installations often pair the 1785-L80C15 with dedicated safety relay modules and hardwired emergency stop circuits to maintain SIL-rated protection independent of the programmable controller. Communication gateways such as the 1785-ENET Ethernet Interface module allow the PLC-5 system to report process data to SCADA platforms and historian servers over standard Ethernet/IP, enabling remote monitoring without compromising the determinism of the ControlNet control loop. Terminal block assemblies and pre-wired cable sets from the 1492 series further simplify field wiring and reduce installation errors in high-density I/O panels.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 1785-L80C15 is deployed in wellhead control panels, compressor station automation, and pipeline SCADA outstations where continuous uptime is non-negotiable. Its ability to sustain ControlNet communication under high electromagnetic interference — generated by variable speed drives, high-voltage switchgear, and radio frequency equipment — makes it a preferred processor for these environments. The module’s sealed construction and wide thermal tolerance allow it to operate reliably inside outdoor enclosures exposed to desert heat or arctic cold without derating.

In mineral processing and metallurgical plants, the 1785-L80C15 manages conveyor sequencing, crusher interlocks, flotation cell control, and smelter process automation. The vibration and shock loads generated by heavy crushing and grinding equipment are well within the module’s mechanical tolerance, and its deterministic ControlNet scan cycle ensures that safety interlocks respond within defined time windows regardless of network load. Water and wastewater treatment facilities rely on the PLC-5/80 platform for pump station control, chemical dosing automation, and SCADA integration, where the processor’s large memory capacity accommodates complex ladder logic programs with extensive data logging and alarm management routines.

Power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — use the 1785-L80C15 in balance-of-plant control systems, auxiliary equipment sequencing, and protection relay coordination. Its long-term availability as a stocked spare part is a critical procurement consideration for plant engineers managing aging DCS and PLC infrastructure, where a single unplanned processor failure can result in costly production shutdowns.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers any functional failure of the 1785-L80C15 under normal operating conditions from the date of shipment. If the module fails to perform to its published specification within the warranty period, TOPNLMS will arrange repair, replacement, or credit at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions and a replacement unit dispatch are typically coordinated within 3 business days.

Q2: How is each unit tested before shipment?
Every 1785-L80C15 unit shipped by TOPNLMS undergoes a multi-stage inspection process that includes visual examination for physical damage, power-on functional verification, communication port testing, and firmware version confirmation. Refurbished units are additionally subjected to burn-in testing to screen for early-life failures before dispatch. A test report is available upon request for customers with documented quality assurance requirements.

Q3: Is the 1785-L80C15 compatible with my existing PLC-5 chassis and software?
The 1785-L80C15 is fully compatible with the 1771 I/O chassis family and is programmed using Rockwell Automation’s RSLogix 5 software. It supports all standard PLC-5 instruction sets and retains backward compatibility with existing ladder logic programs developed for earlier PLC-5/80 processors. Customers migrating from non-ControlNet PLC-5 variants should verify ControlNet network configuration requirements with their system integrator prior to installation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains dedicated stock of the 1785-L80C15 and related PLC-5 series components to support both planned maintenance schedules and emergency breakdown situations. For customers managing critical infrastructure with extended lead-time constraints, we offer reserved stock arrangements and priority dispatch for urgent orders. Contact [email protected] or call +86 18359293191 to discuss your long-term supply requirements.
