Allen-Bradley 1785-L80C Ruggedized ControlNet Processor Module

Product Overview

Allen-Bradley 1785-L80C Ruggedized ControlNet Processor Module: Industrial Resilience for the Harshest Environments

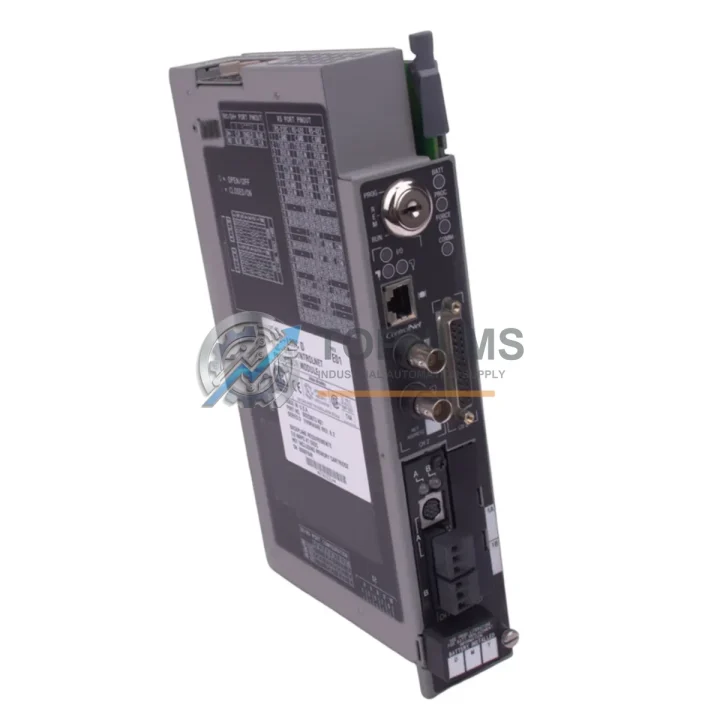

The Allen-Bradley 1785-L80C is a high-performance PLC-5 Series ControlNet Processor Module engineered to deliver uncompromising reliability in the most demanding industrial environments. Designed for continuous operation across extreme temperature ranges, high-humidity zones, heavy dust exposure, persistent mechanical vibration, and intense electromagnetic interference (EMI), this processor module is the backbone of mission-critical control architectures where downtime is simply not an option.

Built on Rockwell Automation’s proven PLC-5 platform, the 1785-L80C integrates native ControlNet communication capability, enabling deterministic, high-speed data exchange across complex plant-floor networks. Whether deployed in a centralized control cabinet or distributed across a multi-drop ControlNet segment, this processor maintains scan-cycle integrity and network synchronization even under adverse electrical conditions — including voltage transients, ground loops, and high-frequency noise common in heavy industrial facilities.

In petrochemical refineries, offshore platforms, and upstream oil and gas installations, the 1785-L80C operates alongside 1771-series I/O modules, managing analog and discrete field signals from pressure transmitters, flow meters, and emergency shutdown (ESD) valves. Its deterministic ControlNet scan ensures that safety-critical process variables are updated within defined cycle times, supporting SIL-rated safety instrumentation systems. The processor’s robust memory architecture — supporting up to 100K words of user program — accommodates complex ladder logic, function block sequences, and structured text routines without performance degradation.

In mining and mineral processing environments, where fine particulate matter, moisture ingress, and continuous mechanical shock are constant threats, the 1785-L80C is typically housed in NEMA 4X or IP65-rated control enclosures. It works in concert with 1771-OFE analog output modules, 1771-IFE analog input modules, and 1785-CHBM ControlNet bridge modules to maintain real-time supervisory control over conveyor drives, crusher circuits, and slurry pump stations. Variable frequency drives (VFDs) and motor control centers (MCCs) connected via ControlNet receive deterministic command updates, ensuring coordinated motion and process sequencing even during peak production loads.

Power generation and grid-tied facilities rely on the 1785-L80C to coordinate turbine control, generator excitation, and load-shedding sequences. Paired with 1785-ENET Ethernet interface modules and 1771-SDN DeviceNet scanner modules, the processor bridges legacy PLC-5 infrastructure with modern SCADA and DCS architectures, enabling seamless data aggregation without requiring full system replacement. Industrial power supplies rated for 24 VDC panel bus distribution feed the processor rack, while surge protection devices and isolation transformers safeguard against grid-side transients.

Water and wastewater treatment plants operating under continuous 24/7 production schedules depend on the 1785-L80C for pump station sequencing, chemical dosing control, and SCADA telemetry. The processor’s ControlNet port supports scheduled and unscheduled messaging, allowing real-time data exchange with remote I/O racks and operator interface terminals (OITs) without disrupting deterministic control tasks. Safety relay modules and interlock circuits integrated into the control cabinet provide additional layers of protection for personnel and equipment.

In steel mills, aluminum smelters, and heavy metallurgical operations, the 1785-L80C endures radiated EMI from large induction furnaces, arc welders, and high-current bus bars. Its shielded backplane design and optically isolated I/O interfaces minimize susceptibility to conducted and radiated interference, maintaining program execution integrity across all operating conditions. Terminal block modules and marshalling panels within the control cabinet provide organized field wiring termination, reducing installation errors and simplifying maintenance access.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1785-L80C does not operate in isolation — it is the command center of a tightly integrated control architecture. In a typical heavy-industry control cabinet, it coordinates with 1771-OW relay output modules to drive high-current contactors and motor starters, while 1771-IB16 discrete input modules capture field status signals from limit switches, proximity sensors, and safety interlocks. For analog process control, 1771-OFE analog output modules translate processor commands into 4–20 mA signals driving control valves and variable speed drives.

ControlNet communication is extended across the plant floor via 1785-CHBM ControlNet bridge modules, linking remote 1771-series I/O racks located in satellite junction boxes up to 1,000 meters from the main control room. Where legacy Data Highway Plus (DH+) networks remain in service, the 1785-L80C’s Channel 0 DH+ port enables peer-to-peer messaging with other PLC-5 processors and programming terminals without disrupting ControlNet scheduled traffic.

Safety relay modules and hardwired emergency stop (E-stop) circuits interface directly with the processor’s discrete I/O, providing SIL 2-capable interlock functions for machinery guarding and hazardous area protection. Industrial uninterruptible power supplies (UPS) rated for 24 VDC panel bus distribution ensure the processor and its associated I/O modules remain energized during brief power interruptions, preventing uncontrolled process shutdowns. Surge protection devices installed on incoming power feeds and field signal cables further shield the 1785-L80C from transient overvoltages originating from lightning strikes or switching operations on high-voltage distribution systems.

Application in Critical Infrastructure

Across the global critical infrastructure landscape, the Allen-Bradley 1785-L80C has established a decades-long track record of dependable service. In upstream oil and gas wellhead automation, it manages wellhead control panels (WHCPs), monitoring downhole pressure and temperature while executing automated shut-in sequences when process parameters exceed safe operating limits. Offshore platform operators value its tolerance for salt-laden humid air and the mechanical shock transmitted through steel deck structures during heavy sea states.

In coal-fired and combined-cycle power plants, the 1785-L80C supervises boiler feedwater control, fuel gas management, and turbine auxiliary systems. Its deterministic ControlNet scan cycle ensures that burner management system (BMS) interlocks respond within defined time windows, a requirement for compliance with NFPA 85 and IEC 61511 functional safety standards. Metallurgical facilities operating electric arc furnaces and continuous casting lines rely on the processor’s EMI immunity to maintain stable control loop performance despite the intense electromagnetic environment generated by high-current smelting operations.

Municipal water authorities and industrial wastewater treatment operators deploy the 1785-L80C in lift station control panels and treatment plant SCADA systems, where it manages pump sequencing, chemical feed dosing, and effluent quality monitoring around the clock. Its long-term parts availability through specialist distributors like TOPNLMS ensures that aging water infrastructure can continue operating without costly full-system migrations, protecting capital budgets while maintaining regulatory compliance.
