Allen-Bradley 1785-L60L Replacement for PLC-5: Smooth Transition & Legacy System Upgrade

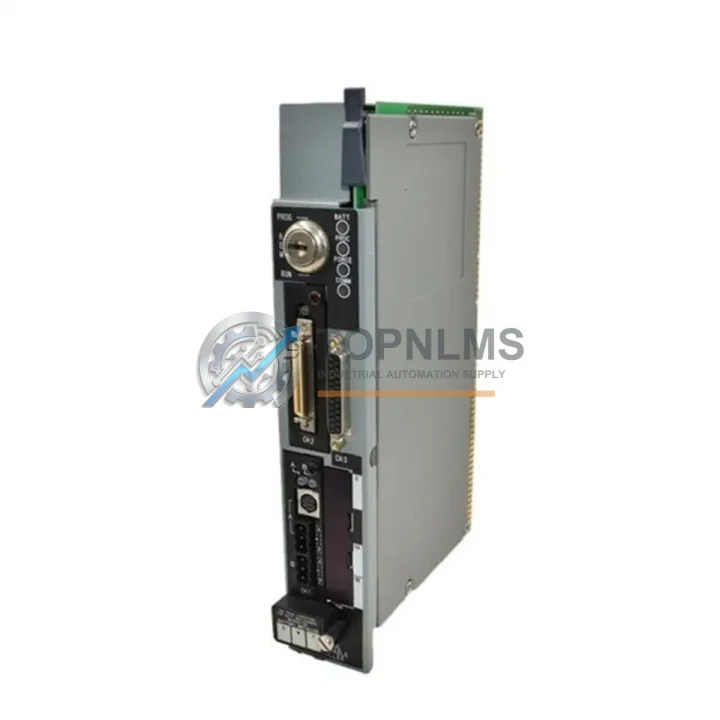

The Allen-Bradley 1785-L60L is a high-capacity processor from the classic PLC-5/60L family, widely deployed across heavy manufacturing, oil & gas, water treatment, and discrete automation plants worldwide. As Rockwell Automation has officially discontinued the PLC-5 platform, facilities still running the 1785-L60L face increasing pressure to source reliable replacement units or plan a structured migration to modern control architectures. TOPNLMS supplies tested, in-stock 1785-L60L processors to support both immediate emergency replacement and phased system modernization — ensuring your production line stays operational while your engineering team plans the next step.

Whether your existing 1785-L60L has failed unexpectedly or you are proactively building a spare-parts buffer before a planned shutdown, our unit ships fully tested with a 12-month warranty. Each processor undergoes functional verification covering memory integrity, I/O bus communication, and DH+ network handshake before dispatch. We ship from Xiamen, China, with DHL Express and FedEx International Priority options available for urgent orders.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1785-L60L replacement or migration rarely involves the processor alone. In most field scenarios, the engineering team must simultaneously address the surrounding system components to ensure a stable, fully functional control architecture.

For facilities performing a direct swap within the existing 1771 chassis, the 1771-OBD and 1771-IBD discrete I/O modules typically remain in service without modification, as the 1785-L60L communicates with them through the standard 1771 backplane. However, if the chassis backplane itself shows signs of wear or intermittent faults, replacing the 1771-A4B chassis alongside the processor is strongly recommended to eliminate latent hardware risk.

Communication infrastructure is another critical consideration. Many legacy PLC-5 installations rely on DH+ (Data Highway Plus) networks for peer-to-peer PLC communication and SCADA connectivity. The 1785-L60L’s onboard DH+ port connects directly to this network, and the replacement unit maintains full DH+ compatibility. For sites that need to bridge DH+ to modern EtherNet/IP networks — for example, to connect to a new SCADA system or MES platform — the 1761-NET-DNI or a 1756-DHRIO module in a ControlLogix gateway chassis provides a reliable protocol conversion path without requiring a full PLC replacement.

Power supply integrity is equally important. The 1771-P4S and 1771-P7 power supply modules that feed the 1771 chassis should be inspected and, if aged, replaced concurrently with the processor to prevent a secondary failure shortly after commissioning. TOPNLMS stocks both power supply variants for immediate dispatch.

For sites planning a phased migration toward the ControlLogix platform, the 1756-L85E or 1756-L84E ControlLogix processors offer a modern alternative with EtherNet/IP native connectivity, expanded memory, and Studio 5000 programming. The migration typically involves installing a new 1756 chassis alongside the existing 1771 rack, using a 1756-DHRIO bridge module to maintain DH+ communication during the transition period, and progressively converting ladder logic from RSLogix 5 format to Studio 5000 Logix Designer. This approach minimizes production downtime by allowing parallel operation of old and new systems during cutover.

HMI connectivity is another area requiring attention during migration. Legacy PanelView 550 or PanelView 900 terminals communicating over DH+ will continue to function with a direct 1785-L60L replacement. If the HMI is also being upgraded to a PanelView Plus 7 or PanelView 5510, the new terminal communicates via EtherNet/IP, requiring the aforementioned DH+ bridge or a full ControlLogix migration. Programming cables such as the 1784-U2DHP USB-to-DH+ adapter are essential for connecting a modern laptop running RSLogix 5 to the existing DH+ network for program upload, backup, and commissioning tasks.

Signal conditioning and isolation should not be overlooked. In older PLC-5 installations, analog I/O modules such as the 1771-IFE or 1771-OFE may be operating near end-of-life. Replacing these alongside the processor, or adding signal isolators at the field wiring terminals, reduces the risk of noise-induced faults in the newly commissioned system.

Retrofit Guidance FAQ

Q: Can I drop the replacement 1785-L60L directly into my existing 1771 chassis without rewiring?
A: Yes. The 1785-L60L uses the standard 1771 backplane connector. A direct replacement requires no wiring changes. Simply remove the failed unit, insert the replacement, restore power, and load your saved program from backup media or an RSLogix 5 project file.

Q: Do I need to re-enter my PLC program after replacing the processor?
A: If you have a current RSLogix 5 project backup (.RSS file) or a program stored on a 1784-KTXD memory card, the program can be downloaded directly to the replacement processor. If no backup exists, the program must be reconstructed — this is why TOPNLMS strongly recommends uploading and archiving your program before the processor fails.

Q: Is the DH+ network address retained after replacement?
A: The DH+ node address is set via the processor’s front-panel thumbwheel switches. Simply configure the replacement unit to the same node address as the original before powering up the network.

Q: Will my existing 1771 I/O modules and wiring work with the replacement processor?
A: Yes. All standard 1771-series I/O modules — including digital, analog, and specialty modules — are fully compatible with the 1785-L60L replacement unit. No I/O reconfiguration is required for a direct swap.

Q: What if my control cabinet does not have space for a ControlLogix migration chassis?
A: A direct 1785-L60L replacement is the most space-efficient solution, as it occupies the same single slot in the existing 1771 chassis. ControlLogix migration requires a separate 1756 chassis, which may necessitate panel expansion or a new control cabinet. TOPNLMS can advise on both paths based on your site constraints.

Q: What communication protocols does the 1785-L60L support?
A: The 1785-L60L natively supports DH+ (Data Highway Plus) and RS-232 (DF1 protocol). It does not natively support EtherNet/IP or DeviceNet. For EtherNet/IP connectivity, a gateway module such as the 1756-ENBT in a ControlLogix chassis is required.

Q: How long does shipping take?
A: Standard international express shipping from Xiamen takes 3–7 business days to most destinations. Expedited DHL Express options are available for critical downtime situations. Contact us at [email protected] or +86 18359293191 for urgent order processing.

Warranty Assurance

Every 1785-L60L processor supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes power-on verification, memory read/write integrity checks, I/O backplane communication validation, and DH+ port functional testing. Units that do not pass all test criteria are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We maintain stock of common PLC-5 series processors and I/O modules to support rapid warranty replacements without extended lead times.

For procurement teams, we can provide test reports, product photos, and shipping documentation upon request. All units are shipped in anti-static packaging with appropriate cushioning for international freight. We accept T/T bank transfer, PayPal, and other payment methods suitable for B2B industrial procurement.
