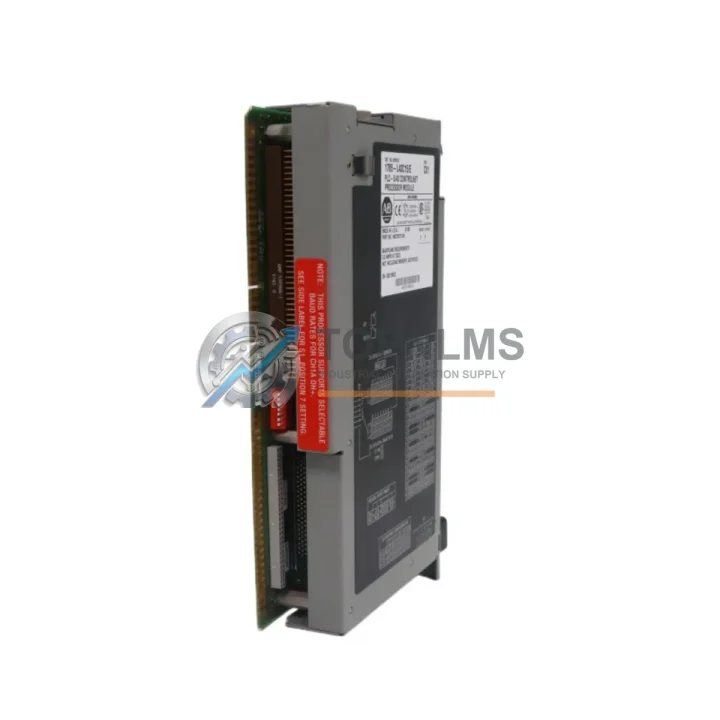

Allen-Bradley 1785-L40C15 Ruggedized ControlNet Processor Module

Product Overview

Allen-Bradley 1785-L40C15 Ruggedized ControlNet Processor Module: Industrial Resilience for the Harshest Environments

The Allen-Bradley 1785-L40C15 is a high-performance PLC-5/40 ControlNet processor module engineered by Rockwell Automation to deliver uncompromising reliability in the most demanding industrial environments. Designed for continuous operation across oil & gas platforms, mining operations, power generation facilities, water treatment plants, and heavy metallurgical processes, this processor module maintains deterministic control even when subjected to extreme temperature swings, high-humidity atmospheres, pervasive airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Where lesser controllers falter, the 1785-L40C15 sustains mission-critical automation without interruption.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1785-L40C15 processor is the command center of a broader Allen-Bradley PLC-5 control architecture. In a typical heavy-industry control cabinet, it operates in concert with 1771-OBD digital output modules and 1771-IB16 digital input modules to handle discrete I/O across conveyor lines, valve actuators, and motor starters. Analog process variables — temperature, pressure, and flow — are conditioned through 1771-IFE analog input modules, feeding real-time data directly to the 1785-L40C15 for closed-loop PID control.

On the network side, the processor’s native ControlNet port communicates seamlessly with 1756-CNB ControlNet bridge modules in adjacent ControlLogix chassis, enabling system-wide data exchange without gateway latency. For legacy serial integration, 1785-KA5 communication adapters extend DH+ and RS-232 connectivity to SCADA hosts and HMI panels. Power integrity across the backplane is maintained by 1771-P7 power supply modules, which deliver regulated 5 VDC and 24 VDC rails with built-in short-circuit protection — a critical safeguard in environments prone to voltage transients from large motor drives and welding equipment.

Safety interlock circuits are typically implemented alongside Allen-Bradley 440R GuardMaster safety relays, which monitor E-stop chains, light curtains, and two-hand control stations. These safety relays feed status signals back into the 1785-L40C15 via dedicated safety I/O modules, ensuring the processor can execute safe-state logic within the required response time. Terminal connectivity throughout the cabinet is standardized on 1492-W4 wiring duct and 1492-J series terminal blocks, which simplify field wiring and reduce installation errors in high-vibration environments where loose terminations are a persistent risk.

For variable-speed drive integration, the 1785-L40C15 coordinates with PowerFlex 700 AC drives over ControlNet, enabling precise speed and torque control of pumps, fans, and compressors without the signal degradation associated with analog 4–20 mA loops. This digital integration eliminates a common failure point in harsh environments where analog wiring is susceptible to corrosion and EMI-induced noise.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1785-L40C15 manages wellhead control panels and pipeline SCADA nodes where ambient temperatures fluctuate dramatically between day and night cycles, and where hydrogen sulfide (H₂S) atmospheres demand sealed, corrosion-resistant enclosures. The processor’s deterministic ControlNet scan cycle ensures that emergency shutdown (ESD) commands propagate to field devices within milliseconds — a non-negotiable requirement under IEC 61511 functional safety standards.

In underground mining, the module controls conveyor belt systems, ventilation fans, and dewatering pumps in environments saturated with coal dust, silica particulates, and high humidity. Its robust backplane design and conformal-coated circuit boards resist moisture ingress and conductive contamination that would cause premature failure in standard commercial-grade controllers.

At power generation facilities — including coal-fired, hydroelectric, and combined-cycle gas turbine plants — the 1785-L40C15 handles boiler management, turbine sequencing, and auxiliary system control. The processor’s ability to sustain operation through the high-frequency EMI generated by large transformers, bus bars, and switchgear makes it a preferred choice for plant engineers who cannot tolerate nuisance trips or unplanned shutdowns.

In water and wastewater treatment, the module orchestrates pump station automation, chemical dosing systems, and clarifier drives across geographically distributed sites connected via ControlNet fiber-optic media. Its long-distance communication capability reduces the need for local control panels at each pump station, consolidating control into a central SCADA architecture that lowers operational costs and improves response time to process upsets.

Metallurgical and steel mill applications represent perhaps the most demanding use case: the 1785-L40C15 operates within rolling mill control systems where radiated heat from molten metal, intense mechanical vibration from rolling stands, and stray magnetic fields from induction furnaces create a hostile electromagnetic environment. Its proven field record in these conditions makes it a trusted spare-parts investment for plant maintenance teams managing aging PLC-5 infrastructure.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 1785-L40C15 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects, functional failures under normal operating conditions, and premature component degradation. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund after technical verification. Warranty claims are processed via [email protected] with a typical resolution time of 3–5 business days.

Q2: How is each unit tested before shipment?
All 1785-L40C15 modules undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test, ControlNet port communication verification, and memory integrity check. Units that do not pass all test stages are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1785-L40C15 compatible with my existing PLC-5 chassis and I/O modules?
Yes. The 1785-L40C15 is fully compatible with the 1771-series chassis (1771-A1B through 1771-A4B) and the complete range of 1771-series I/O modules, including digital, analog, specialty, and communication modules. It is also interoperable with ControlNet networks running RSNetWorx for ControlNet scheduling software. If you have a specific chassis or I/O configuration, contact our technical team for a compatibility confirmation before ordering.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare-parts programs?
Yes. TOPNLMS maintains dedicated inventory reserves for legacy Allen-Bradley PLC-5 components, including the 1785-L40C15, to support plant maintenance teams operating aging control systems that are not yet scheduled for migration. We offer blanket purchase order arrangements, priority allocation for critical-spares programs, and expedited shipping for emergency breakdown situations. Contact [email protected] or call +86 18359293191 to discuss your long-term supply requirements.
