Allen-Bradley 1785-L20E Original Industrial Spare PLC-5 Compatible

Product Overview

Allen-Bradley 1785-L20E Original Industrial Spare PLC-5 Compatible: System Stability and Industrial Spare Parts Maintenance Value

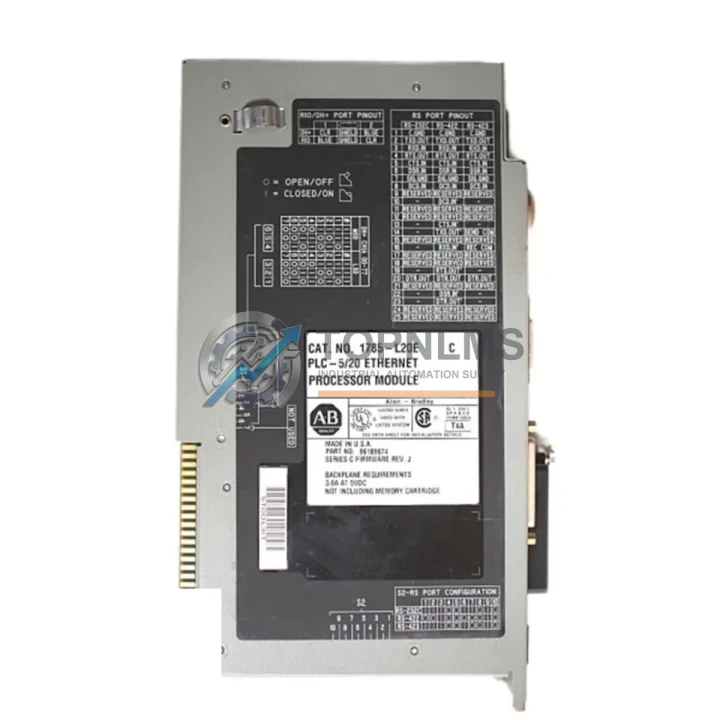

The Allen-Bradley 1785-L20E is a PLC-5/20 Ethernet processor module manufactured by Rockwell Automation, designed for high-reliability industrial control applications across manufacturing, oil & gas, water treatment, automotive assembly, and process automation environments. As a genuine original spare part, the 1785-L20E provides a direct, drop-in replacement solution for aging PLC-5 Series control systems, enabling maintenance teams to restore system stability rapidly without costly re-engineering or full system migrations.

In today’s industrial landscape, legacy PLC-5 systems continue to operate in thousands of facilities worldwide. Keeping a verified, tested 1785-L20E processor in your spare parts inventory is one of the most effective strategies for reducing unplanned downtime risk. When a processor fault occurs on the production floor, every minute of downtime translates directly into lost output and increased labor costs. Having a ready replacement on the shelf means your maintenance team can execute a controlled swap within the same maintenance window — restoring operations without waiting days or weeks for procurement.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for PLC-5 Series control systems extends well beyond the processor module itself. When scheduling a planned inspection or replacement of the 1785-L20E processor, experienced maintenance engineers treat the event as an opportunity to audit the entire control cabinet for wear, degradation, and latent failure risks.

Begin with the 1771-P4S or 1771-P7 power supply module — the backbone of the 1771 I/O chassis. A processor swap performed without verifying power supply output voltage and ripple tolerance is an incomplete maintenance action. Aging power supplies are a leading cause of intermittent processor faults and should be inspected or replaced on the same maintenance cycle.

Next, inspect all 1771-OBD or 1771-OW16 digital output modules and 1771-IBD digital input modules installed in the chassis. I/O module degradation — particularly in high-cycle or high-temperature environments — can cause false signals that are often misdiagnosed as processor faults. Replacing the 1785-L20E without auditing I/O modules may result in recurring fault conditions.

Communication integrity is equally critical. Verify the condition of 1784-KTX or 1784-PKTX Data Highway Plus (DH+) communication cards and associated DH+ trunk cables and terminators. Degraded DH+ wiring is a common source of intermittent communication faults in legacy PLC-5 networks. While the processor is offline for replacement, this is the ideal window to test cable continuity and replace any suspect segments.

For systems using remote I/O racks, inspect the 1771-ASB remote I/O adapter modules and their associated remote I/O cables. Remote I/O communication errors frequently surface after a processor replacement if the adapter modules have not been maintained. Similarly, review the condition of 1771-WB or 1771-WN chassis backplane wiring and slot connectors for oxidation or mechanical wear.

Finally, document the firmware revision of the replacement 1785-L20E and verify compatibility with your existing RSLogix 5 program file. Maintain a backup of the current program on a dedicated 1784-SD1 or compatible memory card before initiating any processor swap. A complete spare parts kit for a PLC-5/20E system should also include 1785-MEM memory modules and a set of spare 1771-WF chassis slot fillers to maintain EMI shielding integrity after module removal.

Strategic Replacement Solutions

The 1785-L20E serves as the direct original replacement for the PLC-5/20E processor in existing 1771 I/O chassis installations. Unlike migration solutions that require full program conversion and hardware redesign, installing a verified 1785-L20E allows maintenance teams to restore the exact original control architecture — preserving all existing ladder logic, I/O addressing, and HMI tag structures without modification.

This is particularly valuable in facilities where the cost and risk of a full ControlLogix or CompactLogix migration cannot be justified in the current budget cycle. By maintaining a stock of original 1785-L20E processors, operations managers can extend the productive service life of their PLC-5 infrastructure by 5–10 years while planning a phased, risk-managed migration on their own schedule.

For facilities managing multiple PLC-5 systems across different production lines, a centralized spare parts strategy — holding one or two 1785-L20E units per site — provides the fastest possible mean time to repair (MTTR) for processor-level faults. Combined with a documented replacement procedure and a pre-tested program backup, a trained technician can complete a full processor swap and system restart in under two hours, compared to days or weeks if the part must be sourced reactively from the open market.

All 1785-L20E units supplied by TOPNLMS are sourced as original Allen-Bradley components, individually tested for functional integrity prior to shipment, and covered by a 12-month warranty. Each unit is inspected for firmware version, communication port functionality, and backplane connector condition before dispatch.

Support FAQ

Q1: Is the 1785-L20E a direct drop-in replacement for my existing PLC-5/20E processor?
Yes. The 1785-L20E is the original Allen-Bradley PLC-5/20E Ethernet processor and installs directly into any compatible 1771 I/O chassis slot without hardware modification. Your existing RSLogix 5 program file can be downloaded to the replacement processor without conversion, provided firmware compatibility is verified prior to installation.

Q2: What does the 12-month warranty cover, and what pre-shipment testing is performed?
Every 1785-L20E unit undergoes functional testing prior to shipment, including power-on verification, communication port integrity checks (Ethernet and DH+), and backplane connector inspection. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair at no additional cost.

Q3: How should I manage spare parts inventory for a legacy PLC-5 system?
For critical production lines, we recommend maintaining a minimum of one 1785-L20E processor per PLC-5 system as an on-site hot spare. For multi-line facilities, a centralized spare parts store with two to three units provides adequate coverage. Spare units should be stored in anti-static packaging in a climate-controlled environment and rotated into service on a planned basis to prevent long-term storage degradation.
