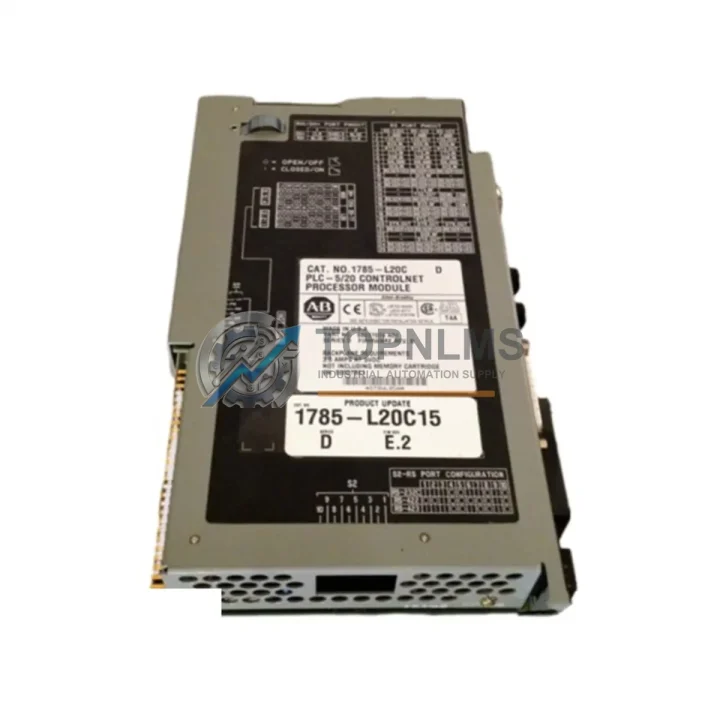

Allen-Bradley 1785-L20C15 Ruggedized ControlNet Processor Module

Product Overview

Allen-Bradley 1785-L20C15 Ruggedized ControlNet Processor Module for Harsh Environments

The Allen-Bradley 1785-L20C15 is a PLC-5/20 Series C ControlNet Processor Module engineered by Rockwell Automation to deliver uncompromising reliability in the most demanding industrial environments. Designed for continuous operation across high-temperature zones, high-humidity facilities, dust-laden atmospheres, and sites subject to intense mechanical vibration and electromagnetic interference (EMI), this processor module is a cornerstone component for mission-critical control architectures in heavy industry and critical infrastructure.

Built on the proven PLC-5 platform, the 1785-L20C15 integrates native ControlNet communication capability, enabling deterministic, high-speed data exchange across complex plant-floor networks. Whether deployed in a standalone control cabinet or as part of a distributed control system (DCS) architecture, this module maintains scan-cycle integrity and network synchronization even under adverse electrical conditions — making it the preferred choice for engineers who cannot afford unplanned downtime.

In environments where variable-frequency drives (VFDs) generate significant harmonic distortion and switching noise, the 1785-L20C15’s shielded backplane interface and robust EMI filtering ensure that I/O data integrity is preserved. When paired with Allen-Bradley 1771-series I/O modules — including analog input modules, digital output modules, and thermocouple input modules — the processor delivers precise, real-time process control without signal degradation. The module’s ControlNet port supports coaxial and fiber-optic media, providing installation flexibility in environments where cable routing through conduit or cable trays is constrained by physical or safety requirements.

For facilities operating safety instrumented systems (SIS), the 1785-L20C15 can be integrated alongside Allen-Bradley GuardPLC safety controllers and 1791DS-series safety I/O modules to form a layered protection architecture. The processor’s deterministic scan time supports the tight timing requirements of safety logic, while its hardware watchdog and self-diagnostic routines provide continuous health monitoring — a critical feature in processes where a single undetected fault can trigger a plant-wide shutdown or safety event.

Power supply stability is equally critical in harsh-environment deployments. The 1785-L20C15 is designed to operate reliably when powered by Allen-Bradley 1771-P4S or 1771-P7 industrial power supply units, which provide regulated DC output with surge protection and brownout ride-through capability. In redundant control architectures, the module can be paired with a 1785-CHBM chassis monitor module to enable hot-standby failover, ensuring continuous process control even during a primary processor fault.

Communication integrity across the plant floor is maintained through the module’s ControlNet scheduler, which manages scheduled and unscheduled messaging between the 1785-L20C15 and remote I/O adapters, HMI terminals, and peer PLC-5 processors. When integrated with a 1784-PCIC ControlNet interface card at the engineering workstation, RSLogix 5 programming software provides full online monitoring, forced I/O control, and program upload/download capability — essential for rapid fault diagnosis and recovery in 24/7 production environments.

For facilities transitioning from legacy PLC-5 architectures toward modern ControlLogix platforms, the 1785-L20C15 serves as a reliable interim solution, maintaining production continuity while migration planning proceeds. Its compatibility with existing 1771-series I/O chassis, remote I/O (RIO) networks, and Data Highway Plus (DH+) communication links means that capital investment in field wiring and I/O infrastructure is fully preserved.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1785-L20C15 is rarely deployed in isolation — its full value is realized as part of a coordinated control and protection architecture. In a typical heavy-industry control cabinet, the processor works in concert with 1771-OBD digital output modules to drive solenoid valves and motor starters, while 1771-IFE analog input modules feed real-time process variables — temperature, pressure, and flow — back to the scan cycle. For motor control applications, Allen-Bradley PowerFlex 700 variable-frequency drives receive speed and torque commands via ControlNet, eliminating the need for hardwired analog setpoint signals and reducing susceptibility to noise-induced setpoint drift.

Relay output modules such as the 1771-OW16 provide galvanic isolation between the processor’s logic circuits and high-voltage field devices, protecting the 1785-L20C15 from inductive kickback and voltage transients generated by contactors and solenoids. For communication-intensive applications, the 1784-KTC ControlNet interface module enables peer-to-peer messaging between multiple PLC-5 processors on the same ControlNet segment, supporting coordinated multi-axis or multi-zone control without routing all data through a central SCADA server.

In safety-critical zones, the 1785-L20C15 is complemented by Allen-Bradley 1791DS-IB8XOBV4 safety I/O modules, which provide SIL 2-rated discrete input and output capability for emergency stop circuits, light curtains, and safety gate interlocks. Terminal block modules such as the 1492-CABLE series simplify field wiring termination and reduce installation errors in dense I/O cabinets. For facilities requiring UPS-backed control power, the 1606-XLS series industrial power supplies provide regulated 24 VDC output with wide-range AC input, ensuring the 1785-L20C15 and its associated I/O remain powered through utility voltage fluctuations common in mining and smelting environments.

Application in Critical Infrastructure

In upstream oil and gas facilities — wellhead control panels, gas compression stations, and pipeline SCADA nodes — the 1785-L20C15 manages valve sequencing, pressure regulation, and emergency shutdown (ESD) logic in environments where ambient temperatures routinely exceed 50 °C and airborne hydrocarbon vapors demand strict control of electrical ignition sources. The module’s sealed backplane connectors and conformal-coated circuit boards resist corrosion from hydrogen sulfide (H₂S) and salt-laden air in offshore and coastal installations.

In underground mining operations, the processor controls conveyor belt drives, ventilation fan systems, and dewatering pump stations in environments characterized by coal dust, silica particulate, and ground vibration from blasting operations. Its deterministic ControlNet scan cycle ensures that conveyor speed commands and belt-slip detection logic execute within defined time windows, preventing material spillage and belt damage.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on the 1785-L20C15 for turbine auxiliary control, cooling water system management, and fuel handling automation. The module’s ability to maintain communication with remote I/O racks located hundreds of meters away via ControlNet fiber-optic links is particularly valuable in large generating stations where control rooms are physically separated from turbine halls.

Municipal water treatment and wastewater facilities deploy the 1785-L20C15 to automate chemical dosing pumps, clarifier drives, and UV disinfection systems. In these environments, the processor’s resistance to high ambient humidity and chemical vapors — chlorine, ammonia, and ozone — ensures long service life without accelerated corrosion of internal components. Metallurgical plants and steel mills use the module to control rolling mill drives, ladle transfer cars, and furnace atmosphere systems, where radiant heat, metal dust, and electromagnetic interference from large induction furnaces create some of the harshest electrical environments in industry.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1785-L20C15?
Every 1785-L20C15 shipped by TOPNLMS carries a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we provide a replacement or full refund — no restocking fees, no bureaucratic delays. Our warranty covers functional failure under specified operating conditions and does not exclude failures discovered during commissioning.

Q2: How is each unit tested before shipment?
Each 1785-L20C15 undergoes a multi-stage inspection process: visual inspection for physical damage, board-level examination for corrosion or component anomalies, and functional power-on testing to verify processor initialization, ControlNet port activity, and self-diagnostic pass status. Units that do not pass all inspection stages are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1785-L20C15 compatible with my existing PLC-5 chassis and I/O?
Yes. The 1785-L20C15 is fully compatible with all 1771-series I/O chassis (1771-A1B through 1771-A4B) and the complete range of 1771-series I/O modules. It supports existing RSLogix 5 programs without modification and communicates natively on ControlNet, DH+, and Remote I/O networks. If you are migrating from an earlier PLC-5/20 variant, program files are directly transferable.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains dedicated inventory of legacy Allen-Bradley PLC-5 series components, including the 1785-L20C15 and related chassis, power supply, and I/O modules, specifically to support customers with long-lifecycle plant assets. We offer blanket order arrangements, reserved stock agreements, and priority fulfillment for customers with documented maintenance schedules. Contact our technical sales team to discuss your multi-year spare parts strategy.
