Allen-Bradley 1784-KTCX15 Ruggedized ControlNet Module for Harsh Environments

Product Overview

Allen-Bradley 1784-KTCX15 Ruggedized ControlNet Module for Harsh Environments

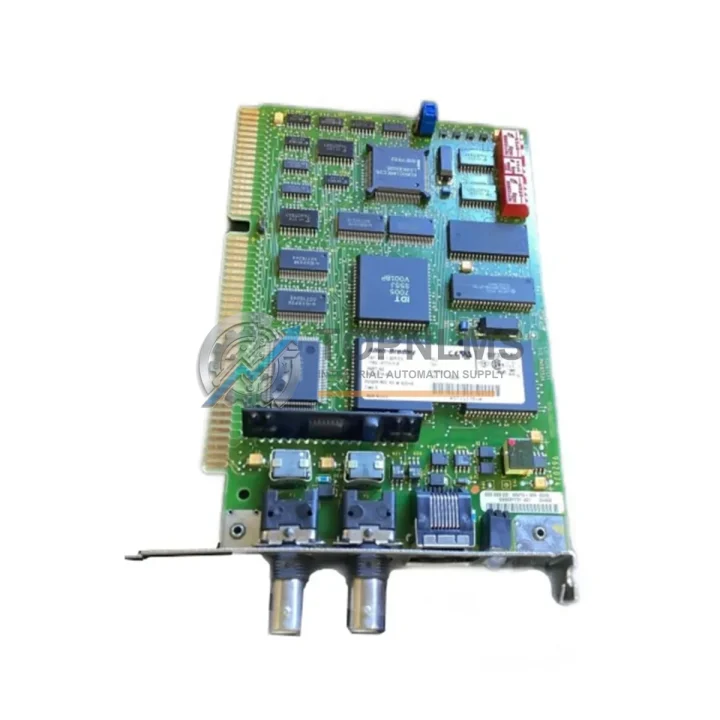

The Allen-Bradley 1784-KTCX15 is a ruggedized ControlNet ISA interface card engineered for continuous, reliable operation in the most demanding industrial environments. As part of Rockwell Automation’s proven 1784 Series, this module delivers deterministic, high-speed ControlNet communication between host PCs and Allen-Bradley PLC-5, SLC 500, and ControlLogix controller platforms — even under conditions of extreme temperature variation, persistent vibration, airborne particulate contamination, and high electromagnetic interference (EMI). Where network integrity is non-negotiable, the 1784-KTCX15 is the field-proven choice for plant engineers and automation specialists worldwide.

Designed to meet the rigorous demands of continuous production lines, the 1784-KTCX15 maintains stable ControlNet communication at data rates up to 5 Mbps, supporting up to 99 nodes per network segment. Its ISA bus architecture integrates directly into industrial workstations and SCADA host systems, providing a low-latency, deterministic communication path that is critical for real-time process control. The card’s onboard coprocessor offloads network management tasks from the host CPU, ensuring that time-sensitive control loops — such as those governing servo drives, safety interlocks, and process instrumentation — are never compromised by host system load.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1784-KTCX15 does not operate in isolation — it is the communication backbone that ties together an entire Allen-Bradley control architecture. In a typical ControlNet-based control cabinet, this card interfaces directly with the 1756-CNB ControlNet Bridge Module, enabling seamless data exchange between the host SCADA workstation and the ControlLogix backplane. Paired with 1756-L63 ControlLogix processors and 1756-IB16 digital input modules, the 1784-KTCX15 ensures that field-level I/O data is transmitted to the supervisory layer with deterministic timing — a requirement in safety-critical applications governed by IEC 61511 and IEC 62061.

In high-voltage switchgear rooms and motor control centers where EMI levels are severe, the 1784-KTCX15 maintains signal integrity across the ControlNet coaxial trunk, protecting communication to PowerFlex 700 variable frequency drives and SMC-3 soft starters that govern large induction motors. The card’s deterministic scheduling prevents data collisions that could otherwise cause nuisance trips or unplanned shutdowns in continuous process plants.

For distributed I/O architectures, the 1784-KTCX15 coordinates with 1794-ACN15 FLEX I/O ControlNet Adapter modules, allowing remote I/O racks to be placed close to field instruments — reducing wiring runs and exposure to signal degradation in dusty or chemically aggressive environments. Alongside 1794-IB16 digital input modules and 1794-OB16 digital output modules, this configuration supports modular expansion without compromising network determinism.

Safety system integration is equally robust. The 1784-KTCX15 supports communication with GuardLogix safety controllers and 1791DS-IB12 Guard I/O safety modules, enabling the host workstation to monitor safety loop status in real time. In facilities where SIL 2 or SIL 3 process safety requirements apply — such as offshore platforms, chemical reactors, or high-pressure pipeline stations — this level of supervisory visibility is indispensable. Terminal block assemblies such as the 1492-CABLE series provide secure, vibration-resistant field wiring terminations that complement the card’s communication reliability.

Application in Critical Infrastructure

Across the world’s most demanding industrial sectors, the Allen-Bradley 1784-KTCX15 has established a track record of dependable service in environments where communication failure carries serious operational and safety consequences.

Oil & Gas: On offshore production platforms and onshore gas compression stations, the 1784-KTCX15 provides the supervisory communication link between control room workstations and field-mounted PLC-5 or ControlLogix controllers managing wellhead pressure, emergency shutdown (ESD) systems, and flare stack controls. The card’s tolerance for wide temperature swings and high-humidity marine atmospheres makes it a preferred choice for platform automation engineers.

Mining & Mineral Processing: In underground mining operations and surface ore processing plants, the 1784-KTCX15 sustains ControlNet communication despite the constant presence of coal dust, silica particulate, and mechanical vibration from crushers, conveyors, and ball mills. Its deterministic network scheduling ensures that conveyor belt interlocks and ventilation fan controls respond within defined cycle times, supporting both productivity and worker safety.

Power Generation & Utilities: In coal-fired, gas turbine, and hydroelectric power stations, the 1784-KTCX15 connects DCS operator stations to Allen-Bradley PLC controllers governing boiler feed pumps, turbine governors, and generator excitation systems. Its EMI immunity is particularly valuable in high-voltage switchyards where induced interference can disrupt lesser-grade communication hardware.

Water & Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants rely on the 1784-KTCX15 to maintain supervisory communication with remote pump stations, chemical dosing systems, and SCADA monitoring points. The card’s ability to operate reliably in humid, chemically aggressive environments — common in chlorination and aeration facilities — reduces maintenance intervention and extends system uptime.

Metallurgy & Heavy Manufacturing: Steel mills, aluminum smelters, and heavy fabrication plants subject automation hardware to extreme thermal cycling, high-frequency vibration, and intense electromagnetic fields from arc furnaces and induction heaters. The 1784-KTCX15’s robust ISA interface and onboard network management ensure that rolling mill controls, ladle transfer systems, and furnace temperature regulation loops remain synchronized and responsive throughout continuous production campaigns.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1784-KTCX15?
Every 1784-KTCX15 supplied by TOPNLMS carries a 12-month warranty from the date of shipment. All units undergo functional testing — including ControlNet communication verification and ISA bus integrity checks — before dispatch. Warranty claims are handled directly by our technical team, with replacement or repair turnaround prioritized to minimize your downtime.

Q2: How is compatibility with existing Allen-Bradley systems verified?
The 1784-KTCX15 is fully compatible with RSNetWorx for ControlNet configuration software and integrates with RSLogix 5, RSLogix 500, and RSLogix 5000 programming environments. Our technical team can assist with firmware revision matching and network configuration guidance to ensure seamless integration with your existing PLC-5, SLC 500, or ControlLogix infrastructure. Compatibility documentation is available upon request.

Q3: Is long-term supply availability assured for this legacy module?
Yes. TOPNLMS maintains dedicated inventory of the 1784-KTCX15 and other 1784 Series interface cards to support customers operating legacy Allen-Bradley ControlNet architectures. We understand that many critical infrastructure facilities have extended equipment lifecycles, and we are committed to providing reliable spare parts supply, technical support, and replacement assistance for the long term.

Q4: What are the shipping and lead time expectations?
In-stock units are dispatched within 1–3 business days of order confirmation. We ship globally with full export documentation, commercial invoices, and packing lists. Expedited shipping options are available for urgent maintenance and breakdown situations. Contact our team at [email protected] or +86 18359293191 to confirm current stock levels and arrange shipment.
