Allen-Bradley 1783-US6T2F Replacement for Stratix 2000

Product Overview

Allen-Bradley 1783-US6T2F Replacement for Stratix 2000: Seamless Transition to Modern Industrial Networking

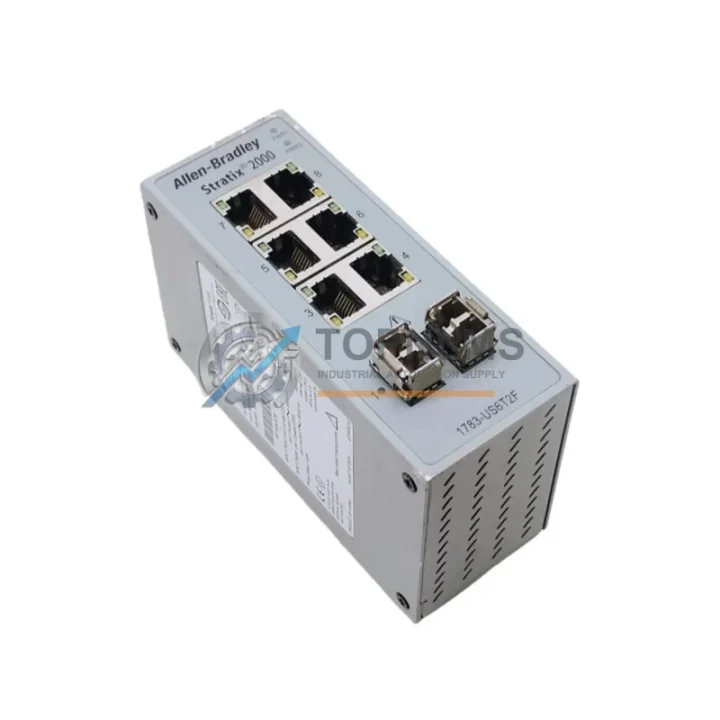

The Allen-Bradley 1783-US6T2F is a 6-port unmanaged industrial Ethernet switch from the Stratix 2000 series, purpose-built for EtherNet/IP-based control networks in demanding manufacturing and process environments. As legacy Stratix 2000 units approach end-of-life or become increasingly difficult to source, facilities running ControlLogix, CompactLogix, or MicroLogix-based architectures face mounting pressure to replace aging network infrastructure without disrupting live production. This replacement unit provides a direct, drop-in upgrade path that preserves existing wiring, panel layouts, and communication topology — minimizing engineering rework and unplanned downtime.

Designed for DIN-rail or panel mounting inside standard control cabinets, the 1783-US6T2F operates on a 24 VDC supply and delivers six 10/100 Mbps auto-negotiating RJ45 ports with auto-MDIX, eliminating the need for crossover cables during rewiring. Its unmanaged architecture means zero configuration overhead: connect power, plug in your Ethernet cables from the 1756-EN2T EtherNet/IP communication module, the 1769-L33ER CompactLogix controller, or the PowerFlex 525 drive’s embedded Ethernet port, and the switch is immediately operational. This plug-and-play behavior is especially valuable during emergency replacements where minimizing commissioning time is critical.

For plants migrating from older SLC 500 or PLC-5 systems to modern Logix-based platforms, the 1783-US6T2F serves as a reliable network backbone component. When upgrading a legacy SLC 5/05 Ethernet node to a 1769-L30ER CompactLogix controller, the existing Cat5e or Cat6 cabling infrastructure can be retained, and the Stratix 2000 switch slots directly into the same DIN-rail position previously occupied by an older unmanaged switch or hub. The 24 VDC power input is compatible with standard 1606-XLP power supplies already present in most Allen-Bradley control panels, so no additional power infrastructure changes are required.

In multi-node architectures where a 1756-L85E ControlLogix controller communicates with distributed I/O racks via 1734-AENT POINT I/O EtherNet/IP adapters, the 1783-US6T2F provides the local switching layer that aggregates device-level Ethernet traffic before it reaches the plant-floor managed switch or SCADA network. Its industrial-grade construction — rated for operation from 0°C to 60°C with no forced cooling — ensures reliable performance in electrical enclosures where ambient temperatures can rise significantly during summer production peaks.

When replacing a failed or end-of-life Stratix 2000 unit in a running system, the physical installation process is straightforward. Remove the failed unit from the DIN rail, transfer the 24 VDC power wiring to the replacement unit’s terminal block, reconnect the RJ45 patch cables in the same port sequence, and restore power. Because the 1783-US6T2F is unmanaged, there are no IP addresses, VLANs, or port configurations to restore — the switch learns MAC addresses automatically and resumes forwarding traffic within seconds. This makes it an ideal spare-parts candidate for facilities that maintain a critical-spares inventory to support rapid recovery from network failures.

For applications involving Kinetix 5500 or Kinetix 5700 servo drives communicating over EtherNet/IP, the 1783-US6T2F provides the low-latency switching needed to support motion control network segments. Its store-and-forward switching architecture ensures frame integrity across all six ports, which is important when mixing drive traffic with I/O and controller communications on the same local segment. Facilities upgrading from older Kinetix 6000 SERCOS-based motion systems to EtherNet/IP-native Kinetix 5700 drives will find the Stratix 2000 switch a cost-effective and immediately available network component for the new EtherNet/IP motion segment.

TOPNLMS maintains verified stock of the 1783-US6T2F sourced from authorized distribution channels. Each unit undergoes pre-shipment functional testing to confirm port operation, power input integrity, and LED status indication before dispatch. Orders are processed from our Xiamen warehouse with standard international shipping to most destinations, and expedited options are available for urgent replacement scenarios. All units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Stratix 2000 replacement rarely involves the switch alone. In most ControlLogix or CompactLogix installations, the 1783-US6T2F operates as part of a broader EtherNet/IP network segment that includes the 1756-EN2T or 1756-EN2TR EtherNet/IP communication module in the controller backplane, providing the primary network interface between the Logix controller and the plant Ethernet infrastructure. On the device side, 1734-AENT POINT I/O EtherNet/IP adapters aggregate distributed digital and analog I/O signals and connect back to the switch via standard RJ45 patch cables — these adapters are a common companion component in any EtherNet/IP I/O migration project.

For drive-integrated applications, PowerFlex 525 and PowerFlex 755 variable frequency drives with embedded EtherNet/IP ports connect directly to the 1783-US6T2F, enabling speed reference and status feedback over the same network segment as the controller I/O. When the control cabinet also houses a PanelView Plus 7 HMI terminal, its Ethernet port connects to the same Stratix 2000 switch, keeping HMI-to-controller traffic local and reducing load on the plant backbone switch. In installations where signal isolation is required between field devices and the control network, DIN-rail-mounted signal isolators or 1492-AIFM analog interface modules may be present in the same panel, and their wiring is unaffected by the switch replacement.

For facilities upgrading from older SLC 500 or PLC-5 platforms, the migration typically also involves replacing the 1747-SN Remote I/O scanner or 1771-ASB adapter with modern 1734-AENT EtherNet/IP adapters, and the 1783-US6T2F provides the network infrastructure to support these new EtherNet/IP nodes. A 1606-XLP power supply in the same panel provides the 24 VDC rail that powers both the switch and the EtherNet/IP adapters, simplifying the power architecture. Programming cable access via a 1784-U2DHP USB-to-DH+ adapter or direct Ethernet connection to the controller’s EtherNet/IP port remains unaffected by the switch replacement, as the 1783-US6T2F transparently forwards all Ethernet traffic without protocol filtering.

Retrofit Guidance FAQ

Q: Do I need to reconfigure anything after replacing the switch?
No. The 1783-US6T2F is an unmanaged switch with no configurable parameters. It learns MAC addresses automatically and begins forwarding traffic immediately upon power-up. No IP address assignment, VLAN configuration, or port settings are required.

Q: Is the wiring compatible with my existing panel layout?
Yes. The 1783-US6T2F uses standard 24 VDC terminal block power input and RJ45 Ethernet ports. If your existing switch uses the same power voltage and RJ45 connections, the replacement is direct. Verify the DIN-rail mounting width matches your panel cutout before installation.

Q: Will my EtherNet/IP I/O and drive communications continue without interruption after replacement?
Yes, provided the replacement is performed during a planned maintenance window. EtherNet/IP connections will fault during the switch power cycle but will automatically re-establish once the replacement unit is powered and the controller resumes scanning. No changes to the controller program, I/O configuration, or drive parameters are required.

Q: Can this switch be used in a ring topology with other Stratix switches?
The 1783-US6T2F is an unmanaged switch and does not support Device Level Ring (DLR) or other ring redundancy protocols. For ring topology requirements, a managed Stratix 5700 or Stratix 8000 switch with DLR support is recommended. The 1783-US6T2F is best suited for star or daisy-chain segment topologies.

Q: What is the physical installation space requirement?
The 1783-US6T2F is designed for standard 35mm DIN-rail mounting. Its compact form factor is compatible with most Allen-Bradley control panel layouts. Ensure adequate clearance for RJ45 cable bend radius on all six ports and for the 24 VDC power terminal block wiring.

Q: Is this unit compatible with Modbus TCP devices in addition to EtherNet/IP?
Yes. As an unmanaged Layer 2 switch, the 1783-US6T2F is protocol-agnostic at the switching level. It will forward Modbus TCP, EtherNet/IP, and standard TCP/IP traffic transparently without any configuration changes.

Warranty Assurance

Every 1783-US6T2F unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional test that verifies power-on operation, all six port link indicators, and basic frame forwarding capability. Units that do not pass functional testing are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or repair support depending on the nature of the defect and the customer’s operational requirements. For urgent production-critical replacements, expedited replacement dispatch is available. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions as defined in the Allen-Bradley 1783-US6T2F product specification. Physical damage, incorrect wiring, or operation outside specified voltage and temperature ranges are excluded from warranty coverage.

Our after-sales response target is within 1 business day for warranty inquiries submitted via email. Customers are encouraged to retain the original packaging and document the installation environment to support any warranty assessment. TOPNLMS’s procurement assurance commitment means that replacement units are held in reserve stock to support warranty fulfillment without extended lead times.
