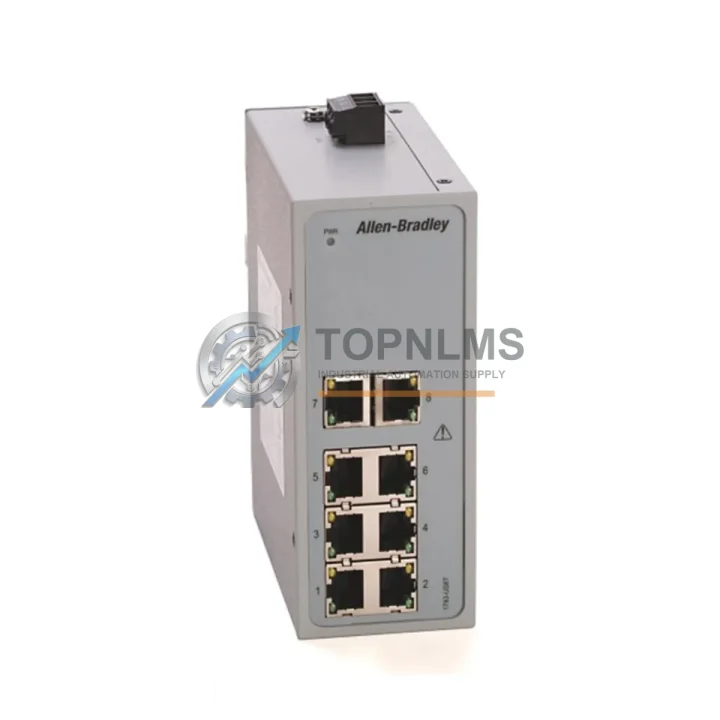

Allen-Bradley 1783-US08T Ruggedized Ethernet Switch for Harsh Environments

Product Overview

Allen-Bradley 1783-US08T Ruggedized Ethernet Switch for Harsh Environments

The Allen-Bradley 1783-US08T is an 8-port unmanaged industrial Ethernet switch from the Stratix 2000 series, engineered by Rockwell Automation to deliver deterministic, high-availability network connectivity in the most demanding industrial environments. Designed for continuous operation across temperature extremes, high-humidity zones, heavy vibration, airborne particulate, and environments subject to intense electromagnetic interference (EMI), the 1783-US08T provides the network backbone that modern automation systems depend on — without compromise.

In process-critical facilities such as oil and gas platforms, mining operations, power generation plants, water treatment stations, metallurgical furnaces, and heavy manufacturing lines, network downtime is not an option. The 1783-US08T addresses this reality with a fanless, convection-cooled design that eliminates moving parts and reduces failure points, a wide operating temperature range, and a rugged metal housing rated for DIN rail or panel mounting. Its plug-and-play, unmanaged architecture means zero configuration overhead — the switch is ready to carry EtherNet/IP traffic the moment it is installed, making it an ideal choice for rapid deployment and emergency spare replacement scenarios.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1783-US08T is rarely deployed in isolation. In a typical ControlLogix or CompactLogix automation cell, it serves as the Ethernet backbone connecting the PLC processor — such as the 1756-L73 ControlLogix controller — to remote I/O adapters, HMI terminals, and drive networks. The switch carries EtherNet/IP traffic between the 1756-EN2T EtherNet/IP communication module and field devices, ensuring that scan-cycle data reaches the controller without latency spikes that could trigger safety faults.

In variable-speed drive applications, the 1783-US08T provides the network segment that links PowerFlex 755 AC drives to the supervisory control layer, enabling real-time speed reference and fault diagnostics over EtherNet/IP. Alongside the switch, a 1606-XLP power supply provides the stable 24 VDC rail that powers both the switch and adjacent I/O modules, with built-in overvoltage and short-circuit protection that safeguards the entire panel.

For distributed I/O architectures, the 1783-US08T connects 1734 POINT I/O adapter modules and 1769 CompactLogix I/O modules across the Ethernet segment, allowing the controller to address hundreds of digital and analog field points without additional fieldbus gateways. In safety-rated zones, the switch supports network segments that include 1791DS GuardLink safety I/O modules, ensuring that safety-rated signals traverse a deterministic, low-latency network path.

Communication integrity is further reinforced when the 1783-US08T is paired with 1783-RMS010T Stratix 5700 managed switches at the distribution layer, creating a hierarchical network topology where the unmanaged Stratix 2000 handles edge-level device connectivity and the managed switch enforces VLAN segmentation and QoS policies. Terminal blocks such as the 1492-J series wiring systems complete the panel wiring, providing reliable, vibration-resistant terminations for power and signal conductors throughout the control cabinet.

Application in Critical Infrastructure

In upstream oil and gas facilities, the 1783-US08T is deployed inside explosion-proof control enclosures on wellhead automation panels, where it connects pressure transmitters, flow computers, and emergency shutdown (ESD) controllers over a single Ethernet segment. Its wide DC input range and fanless design make it tolerant of the power quality variations and ambient temperature swings common on remote production sites.

In underground mining operations, the switch is installed in reinforced junction boxes along conveyor drive stations and ventilation control panels. It withstands the constant mechanical vibration generated by belt drives and rock crushers, and its sealed metal housing resists coal dust and silica particulate ingress that would rapidly degrade consumer-grade networking equipment.

Power generation facilities — including thermal, hydroelectric, and renewable energy plants — rely on the 1783-US08T to network generator protection relays, turbine control systems, and SCADA RTUs. The switch’s compliance with industrial EMC standards ensures that it operates without packet loss or link instability even in the presence of high-voltage switching transients and strong magnetic fields from large transformers and bus bars.

In municipal water treatment and wastewater facilities, the 1783-US08T connects chemical dosing controllers, pump VFDs, and level sensors across the process network. Its corrosion-resistant housing and wide humidity tolerance make it suitable for installation in wet utility buildings where condensation and chemical vapors are persistent environmental challenges.

Metallurgical plants and steel mills present some of the harshest conditions in industrial automation — radiant heat from furnaces, heavy vibration from rolling mills, and pervasive iron oxide dust. The 1783-US08T’s rugged construction and extended temperature rating allow it to maintain continuous network uptime in these environments, supporting the real-time data exchange between melt shop PLCs, ladle tracking systems, and quality control instrumentation that modern steel production demands.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1783-US08T?
Every 1783-US08T shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including port-to-port link verification, power input range testing, and visual inspection — before dispatch. A test report is available upon request.

Q2: Is this unit compatible with existing ControlLogix and CompactLogix systems?
Yes. The 1783-US08T is fully compatible with all Rockwell Automation EtherNet/IP-based control systems, including ControlLogix (1756 series), CompactLogix (1769 series), MicroLogix 1100/1400, and PanelView Plus HMI terminals. As an unmanaged switch, it requires no configuration and integrates transparently into existing network topologies without affecting IP addressing or VLAN structures.

Q3: How does TOPNLMS ensure the authenticity and quality of this product?
TOPNLMS sources Allen-Bradley components through established industrial distribution channels and applies a multi-point inspection process covering physical markings, firmware version verification, and functional performance testing. Units that do not meet specification are quarantined and not offered for sale. All products are shipped with original packaging where available, and full traceability documentation can be provided for critical infrastructure procurement requirements.

Q4: What is the lead time and long-term supply availability?
The 1783-US08T is maintained as a stocked item at our Xiamen facility, with standard orders dispatched within 1–3 business days. For large-quantity procurement or long-term supply agreements supporting planned maintenance programs, TOPNLMS offers reserved stock arrangements and scheduled delivery contracts. Contact our technical sales team to discuss volume pricing and supply continuity planning for your facility.
