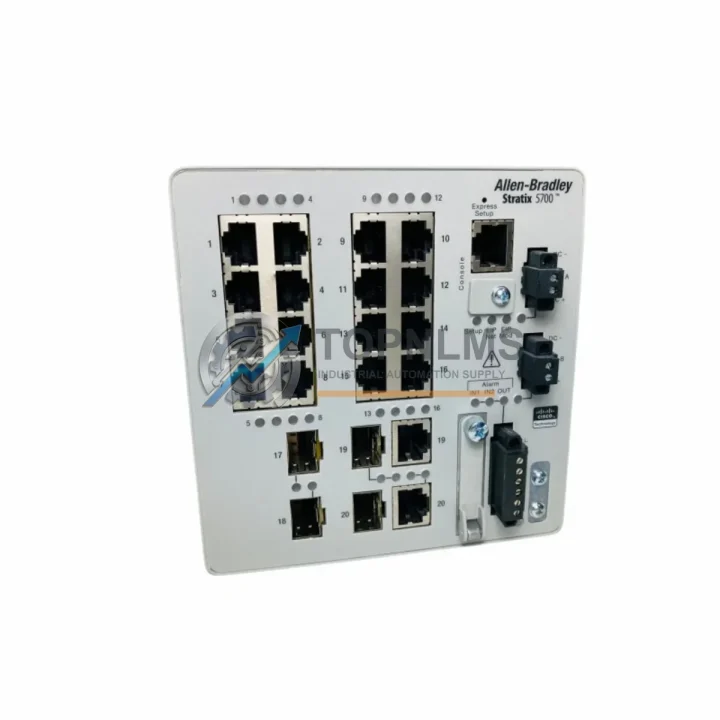

Allen-Bradley 1783-BMS20CL Ruggedized Managed Switch: Industrial Resilience for Harsh Environments

The Allen-Bradley 1783-BMS20CL is a 20-port managed industrial Ethernet switch from the Stratix 5700 series, engineered specifically for the demanding conditions found in continuous production lines, heavy industry, and safety-critical infrastructure. Unlike commercial-grade networking equipment, the 1783-BMS20CL is built to sustain reliable data communication in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI). For plant engineers and procurement specialists sourcing dependable automation networking components, this switch represents a proven, field-validated solution backed by Rockwell Automation’s industrial pedigree.

In modern industrial control architectures, network integrity is the backbone of operational safety. The 1783-BMS20CL integrates seamlessly into EtherNet/IP-based control systems, providing deterministic, low-latency communication between Allen-Bradley ControlLogix and CompactLogix PLCs, Kinetix servo drives, PowerFlex variable frequency drives (VFDs), and distributed I/O modules such as the 1734 POINT I/O and 1756 ControlLogix I/O chassis. Its managed feature set — including IGMP snooping, VLAN segmentation, QoS prioritization, and RSTP/DLR (Device Level Ring) topology support — ensures that time-sensitive control traffic is never compromised by lower-priority data streams, a critical requirement in safety-instrumented systems and high-availability production environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1783-BMS20CL does not operate in isolation — it is a critical node within a broader, layered protection and control architecture. In a typical control cabinet deployment, this switch connects upstream to a Stratix 5410 or Stratix 8000 distribution-layer switch, providing ring redundancy via DLR topology that eliminates single points of network failure. At the field level, it communicates with Allen-Bradley 1734 POINT I/O modules and 1756 ControlLogix I/O chassis, ensuring that analog and digital field signals are transmitted with deterministic latency to the host PLC.

For drive-intensive applications such as conveyor systems or pump stations, the switch maintains reliable EtherNet/IP communication with PowerFlex 755 and PowerFlex 525 variable frequency drives, enabling real-time speed and torque feedback without packet loss — even in environments with significant motor-induced EMI. Safety-critical installations benefit from its compatibility with Allen-Bradley GuardLogix safety PLCs and 1791DS CompactBlock Guard I/O modules, where network segmentation via VLAN ensures that safety traffic is isolated from standard process data.

Power integrity is equally important in harsh environments. The 1783-BMS20CL’s dual 24 VDC redundant power inputs are typically fed by Allen-Bradley 1606-XLP or 1606-XLS series industrial power supplies, which provide regulated, noise-filtered DC power even when the upstream AC supply is subject to voltage sags or transients. Complementing the power architecture, 1492 terminal blocks and 1492-CABLE pre-wired connection systems within the control cabinet ensure clean, vibration-resistant wiring that maintains signal integrity over years of continuous operation.

For facilities requiring remote monitoring and diagnostics, the switch integrates with Rockwell Automation’s FactoryTalk Network Manager software, enabling SNMP-based visibility into port utilization, fault events, and topology changes — all without interrupting live production. This capability is particularly valuable in unmanned substations, offshore platforms, and remote pump stations where on-site intervention is costly and time-consuming.

Application in Critical Infrastructure

The Allen-Bradley 1783-BMS20CL has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it provides the network backbone for SCADA-connected RTUs and safety shutdown systems, where communication failure can trigger costly emergency stops or, worse, safety incidents. Its wide operating temperature range and robust EMC performance make it suitable for installation in Zone 2 hazardous area control rooms when housed in appropriate Ex-rated enclosures.

In mining operations, the switch withstands the constant mechanical vibration from crushers, conveyors, and haul road proximity, maintaining uninterrupted Ethernet connectivity between surface control rooms and underground drive panels. Power generation plants — including coal, gas turbine, and hydroelectric facilities — rely on the Stratix 5700 platform for substation automation and turbine control network segmentation, where IEC 61850 GOOSE messaging and time-sensitive protection relay communication demand zero-tolerance for network instability.

Water and wastewater treatment facilities benefit from the switch’s corrosion-resistant design and humidity tolerance, enabling reliable communication between distributed pump stations, chemical dosing systems, and central SCADA servers. In metallurgical and steel production environments, where ambient temperatures near furnaces can exceed 50 °C and airborne metallic particulates are a constant threat, the 1783-BMS20CL’s sealed housing and DIN-rail mounting provide the physical robustness required for 24/7 continuous operation without scheduled maintenance interruptions.

Automotive manufacturing lines present yet another challenge: high-density robot cells with servo drives, vision systems, and safety light curtains all competing for network bandwidth. The switch’s QoS and IGMP snooping capabilities ensure that robot motion control traffic from Kinetix 5700 servo drives receives priority treatment, preventing latency-induced faults that could halt an entire assembly line.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
All 1783-BMS20CL units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after fault verification. Warranty claims are processed within 5 business days of receiving the returned unit. Contact [email protected] to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every 1783-BMS20CL undergoes a pre-shipment functional inspection that includes power-on verification, port link-up testing across all 20 ports, and firmware version confirmation. Units sourced from verified supply channels are cross-checked against Rockwell Automation’s catalog specifications before dispatch. We do not ship units that fail any stage of this inspection protocol.

Q3: Is the 1783-BMS20CL compatible with my existing Stratix or ControlLogix system?
Yes. The 1783-BMS20CL is fully compatible with the broader Stratix 5700 family and integrates natively with ControlLogix, CompactLogix, and GuardLogix platforms via EtherNet/IP. It supports standard Rockwell Automation Studio 5000 Logix Designer Add-On Profiles (AOPs) for seamless configuration within your existing engineering environment. If you have specific firmware or topology requirements, contact our technical team for pre-sales compatibility confirmation.

Q4: Can you support long-term or repeat procurement for MRO and spare parts programs?
Absolutely. TOPNLMS maintains stock of the 1783-BMS20CL and related Stratix 5700 series components to support both emergency replacement and planned MRO (Maintenance, Repair & Operations) procurement programs. We can provide lead-time commitments, volume pricing, and dedicated account support for facilities requiring ongoing spare parts supply. Reach out to [email protected] or call +86 18359293191 to discuss your program requirements.
