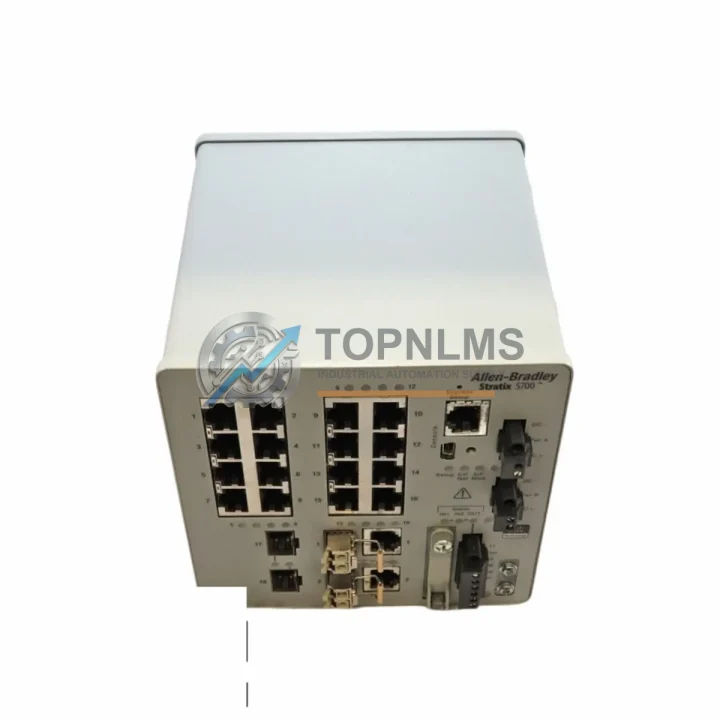

Allen-Bradley 1783-BMS20CGL Ruggedized Managed Switch

Product Overview

Allen-Bradley 1783-BMS20CGL Ruggedized Managed EtherNet/IP Switch: Industrial Resilience for Harsh Environments

The Allen-Bradley 1783-BMS20CGL, part of the Rockwell Automation Stratix 5700 series, is a 20-port managed EtherNet/IP switch engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed to meet the rigorous requirements of process control, discrete manufacturing, and critical infrastructure, this switch delivers deterministic network performance where conventional commercial-grade equipment fails. Whether deployed in high-temperature foundries, moisture-laden water treatment facilities, vibration-intensive mining operations, or EMI-saturated power substations, the 1783-BMS20CGL maintains network integrity without compromise.

Built on Cisco IOS technology and deeply integrated with the Rockwell Automation ecosystem, the 1783-BMS20CGL supports Device Level Ring (DLR) and Parallel Redundancy Protocol (PRP) topologies, enabling sub-millisecond failover that keeps production lines running even during network faults. Its support for EtherNet/IP CIP protocol ensures seamless communication with Allen-Bradley PLCs such as the ControlLogix 5580 and CompactLogix 5380 controllers, as well as POINT I/O and FLEX I/O distributed I/O modules across the control cabinet. This tight protocol alignment eliminates latency-induced faults in time-sensitive control loops.

In high-vibration environments such as offshore platforms or heavy press lines, the 1783-BMS20CGL’s rugged DIN-rail mounting and conformal-coated PCB resist mechanical stress and corrosive atmospheres. Its wide operating temperature range accommodates both arctic cold-storage automation and steel mill environments where ambient temperatures regularly exceed standard commercial limits. The switch’s fanless convection cooling eliminates moving parts — a critical advantage in dusty cement plants or grain processing facilities where particulate ingress would rapidly degrade fan-cooled equipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1783-BMS20CGL is rarely deployed in isolation — it forms the network backbone of a broader, integrated control architecture. In a typical ControlLogix-based control cabinet, the switch interconnects the 1756-EN2T EtherNet/IP communication module with field devices, enabling the 1756-L85E ControlLogix controller to poll distributed I/O at deterministic scan rates. Alongside the switch, 1783-ETAP EtherNet/IP taps provide passive network monitoring without disrupting live traffic — invaluable during commissioning or fault diagnosis on a running production line.

For power conditioning within the control panel, the 1606-XLP power supply series provides the stable 24 VDC rail that feeds both the 1783-BMS20CGL and connected I/O modules, with its wide-input design tolerating voltage fluctuations common in generator-backed industrial sites. Safety-critical applications pair the switch with 1791DS CompactBlock Guard I/O safety modules and 440C-CR30 safety relay units, ensuring that network faults trigger safe-state responses rather than uncontrolled shutdowns. The 1783-NATR NAT router can be deployed upstream of the 1783-BMS20CGL to segment the control network from the plant IT backbone, enforcing the ISA/IEC 62443 security zones required in regulated industries.

In motion-intensive applications, the switch maintains low-latency communication between the Kinetix 5700 servo drive and the ControlLogix motion controller, where even microsecond jitter can cause axis synchronization faults. For remote I/O expansion, POINT I/O 1734-AENT adapter modules connect directly to the switch’s copper ports, distributing analog and digital I/O across large machine footprints without additional fieldbus infrastructure. The 1783-BMS20CGL’s VLAN segmentation capability further isolates safety, motion, and process control traffic on a single physical network — reducing cabling cost while maintaining deterministic performance for each traffic class.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1783-BMS20CGL is deployed in wellhead control panels and SCADA RTU enclosures where Class I Division 2 (C1D2) rated enclosures house the switch alongside explosion-proof barriers. Its IEC 61850-3 and IEEE 1613 certifications make it equally at home in electrical power substation automation, where it connects protection relays, bay controllers, and HMI workstations on the station bus. Utilities rely on its PRP redundancy to achieve zero-packet-loss failover — a non-negotiable requirement for grid protection systems.

In mining and mineral processing, the switch withstands the constant vibration of crushers and conveyors while maintaining communications between distributed motor control centers and the central DCS. Water and wastewater treatment plants deploy the 1783-BMS20CGL in outdoor junction boxes where humidity, condensation, and chemical vapors challenge lesser equipment; its conformal-coated variant handles these conditions without derating. Automotive body-in-white welding lines benefit from the switch’s EMI immunity, as high-current welding processes generate significant electromagnetic interference that can corrupt data on unshielded networks. In metals and steel production, the switch operates reliably in the radiant heat zones near continuous casting lines, where ambient temperatures and thermal cycling would cause premature failure in commercial-grade networking hardware.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1783-BMS20CGL?
Every 1783-BMS20CGL supplied by TOPNLMS carries a 12-month quality warranty from the date of shipment. If the unit exhibits any functional defect within the warranty period under normal operating conditions, we provide repair, replacement, or full refund — your choice. Our warranty terms are documented and provided with each shipment.

Q2: How is each unit tested before shipment?
All units undergo a multi-point pre-shipment inspection: power-on functional verification, port-by-port link negotiation testing, management interface access confirmation (Web GUI and CLI), and visual inspection for physical integrity. Units sourced from controlled supply chains are cross-referenced against Rockwell Automation’s published hardware revision records to confirm authenticity and firmware compatibility.

Q3: Is the 1783-BMS20CGL compatible with my existing Rockwell Automation architecture?
Yes. The 1783-BMS20CGL is fully compatible with Studio 5000 Logix Designer, FactoryTalk Network Manager, and Cisco IOS-based network management tools. It integrates natively with ControlLogix, CompactLogix, and GuardLogix controller families, and supports Add-On Profiles (AOPs) for seamless Studio 5000 device discovery. Firmware upgrades are supported via Cisco IOS standard procedures.

Q4: Can TOPNLMS support long-term or repeat procurement of this model?
Yes. TOPNLMS maintains dedicated inventory of Stratix 5700 series components, including the 1783-BMS20CGL, to support MRO (Maintenance, Repair & Operations) procurement, emergency replacement, and planned capital projects. We offer volume pricing for project quantities and can provide lead-time commitments for scheduled maintenance windows. Contact our team for availability confirmation and bulk quotation.
