Allen-Bradley 1775-S5 Replacement/Upgrade Solution for PLC-5: Seamless Migration & Smooth Transition

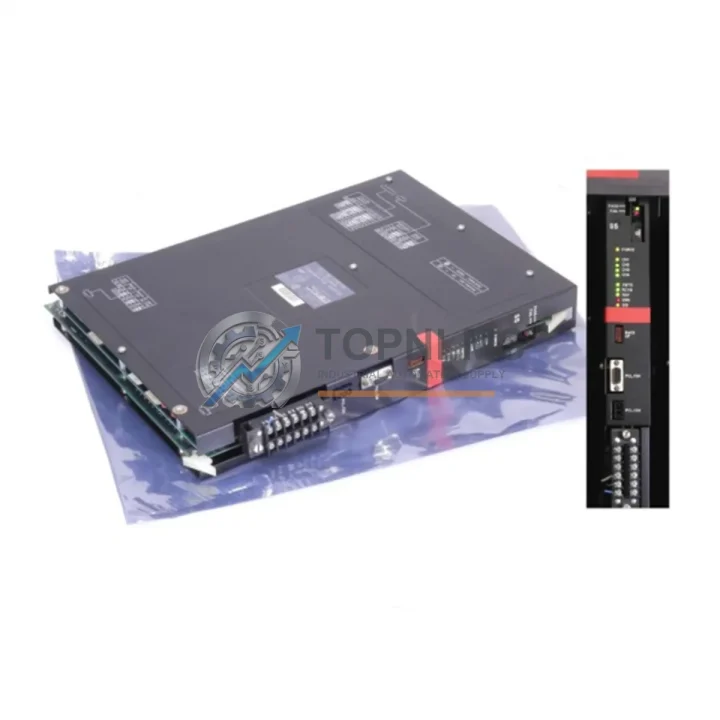

The Allen-Bradley 1775-S5 is a DH+ (Data Highway Plus) communication module originally designed for the PLC-5 series control platform — one of Rockwell Automation’s most widely deployed legacy architectures in process manufacturing, automotive assembly, and discrete manufacturing environments. As the 1775-S5 reaches end-of-life and spare inventory becomes increasingly scarce, plant engineers and maintenance teams face mounting pressure to source verified replacement units or execute a structured migration to a supported platform without disrupting production continuity.

TOPNLMS supplies tested, ready-to-ship 1775-S5 modules for direct drop-in replacement, as well as compatible upgrade pathways for facilities transitioning away from the PLC-5 rack architecture. Whether your objective is a like-for-like swap to extend the operational life of an existing system or a phased migration to a ControlLogix or CompactLogix platform, this solution is engineered to minimize engineering rework, reduce wiring changes, and protect your existing capital investment in field instrumentation and control cabinets.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1775-S5 replacement or migration rarely involves a single module in isolation. In most PLC-5 installations, the DH+ communication module operates alongside a full suite of rack-mounted I/O and communication components that must be evaluated as part of any upgrade plan.

For direct replacement scenarios, the 1775-S5 slots back into the existing 1771 Universal Chassis alongside discrete I/O modules such as the 1771-OBD (DC output) and 1771-IB (DC input), analog modules like the 1771-OFE, and the system power supply — typically a 1771-P4 or 1771-P7. No wiring changes to field terminals are required, and the existing DH+ trunk cable connecting the PLC-5 processor to SCADA, HMI panels, or remote I/O adapters remains fully intact.

For facilities executing a phased migration to the ControlLogix platform, the 1756-DHRIO module provides a critical bridge, enabling the new 1756-L7x or 1756-L8x ControlLogix processor to communicate natively over the existing DH+ network. This allows legacy PLC-5 nodes, remote 1771-ASB adapter racks, and third-party DH+ devices to remain online during the transition period — eliminating the need for a hard cutover. The 1756-EN2T EtherNet/IP communication module can be added simultaneously to bring the new controller onto the plant’s Ethernet backbone, supporting integration with modern MES and SCADA systems.

Panel-level considerations are equally important. Many 1775-S5 installations share a control cabinet with 1336 PLUS or 1336 IMPACT variable frequency drives communicating over DH+. These drives can continue operating on the existing network topology without modification during a ControlLogix migration, provided the 1756-DHRIO bridge is correctly configured. Programming cable access — via a 1784-U2DHP USB-to-DH+ adapter — should be verified before any live system work begins.

Retrofit Guidance FAQ

Q: Can I replace the 1775-S5 without modifying field wiring?
A: Yes. The 1775-S5 is a backplane-connected module. Field wiring terminates at I/O modules in the same or adjacent chassis slots. A like-for-like replacement requires no field wiring changes — only the module itself is swapped.

Q: Will my existing RSLogix 5 program run without modification?
A: For a direct 1775-S5 replacement, the program runs without modification. For a ControlLogix migration, the RSLogix 5 program must be converted using Rockwell’s migration tools; however, the DH+ network configuration and node addressing can be preserved.

Q: Is the DH+ communication protocol compatible with modern SCADA systems?
A: DH+ is a legacy protocol. Modern SCADA systems typically communicate via EtherNet/IP or OPC-UA. The 1756-DHRIO module or a dedicated protocol gateway can bridge DH+ to EtherNet/IP, preserving existing PLC-5 nodes while enabling modern supervisory connectivity.

Q: What are the physical space requirements for a ControlLogix migration?
A: The 1756 ControlLogix chassis has a different form factor than the 1771 chassis. Panel space assessment is required. In many cases, a compact 1756-A4 or 1756-A7 chassis can be mounted adjacent to the existing 1771 rack during a phased migration, minimizing cabinet modifications.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, use RSLinx Classic to browse the DH+ network and confirm the 1775-S5 node is visible. Verify communication status LEDs on the module front panel and confirm data exchange with connected devices before returning the system to production.

Warranty Assurance

Every 1775-S5 module supplied by TOPNLMS is subject to pre-shipment functional testing covering backplane communication, DH+ port integrity, and module identification. Units are shipped in anti-static packaging with inspection documentation.

All modules carry a 12-month warranty from the date of shipment. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange replacement dispatch within 3 business days. Our technical support team is available to assist with installation verification, compatibility questions, and system integration guidance throughout the warranty period.

For time-critical plant maintenance situations, expedited shipping options are available to most destinations. Contact our sales team to confirm lead time and stock availability before placing your order.
