Allen-Bradley 1775-MEA Replacement for PLC-5 Series

Product Overview

Allen-Bradley 1775-MEA Replacement for PLC-5 Series: Seamless Migration & Upgrade Solution

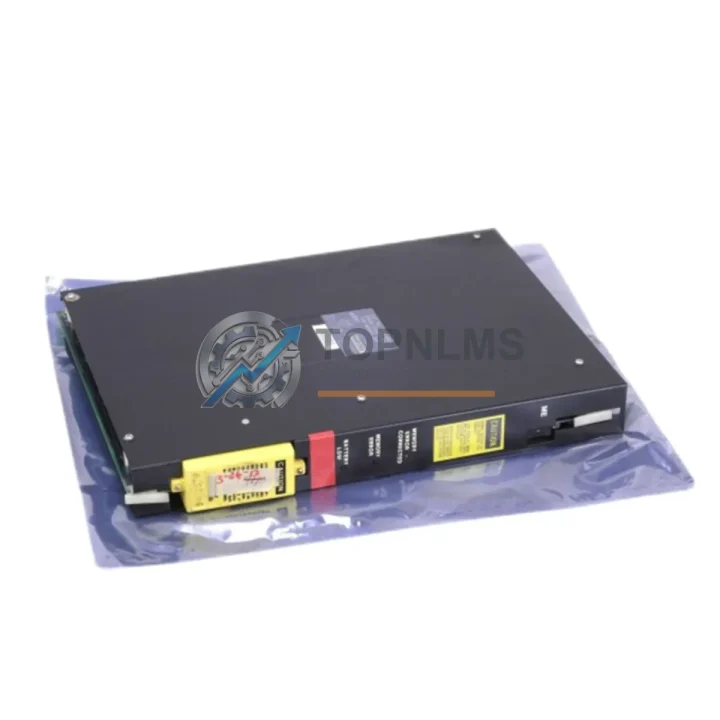

The Allen-Bradley 1775-MEA is a 64K ECC RAM Expansion Module designed for the PLC-5 Series programmable logic controller platform. As legacy PLC-5 systems approach end-of-life and original 1775-MEA units become increasingly scarce, industrial facilities face mounting pressure to source verified replacement modules that preserve existing ladder logic programs, I/O configurations, and communication architectures without triggering a full system redesign.

TOPNLMS supplies the 1775-MEA as a direct drop-in replacement for facilities operating PLC-5/10, PLC-5/15, PLC-5/20, PLC-5/25, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80 processors. Each unit is sourced from verified supply chains, inspected prior to shipment, and backed by a 12-month warranty. Our goal is to minimize your downtime and protect your existing control system investment.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a failed or discontinued memory module rarely happens in isolation. In most PLC-5 retrofit projects, the 1775-MEA replacement is performed alongside a broader system audit that may involve the 1771-P4S power supply or 1771-P7 redundant power supply to ensure stable backplane voltage during the module swap. Engineers frequently inspect the 1771-A4B or 1771-A2B I/O chassis for slot availability and backplane integrity before inserting the new RAM module.

For facilities still running 1785-L40B or 1785-L80B PLC-5 processors, the 1775-MEA expands addressable data table memory, enabling larger ladder logic programs without migrating to a ControlLogix platform. Where communication upgrades are also planned, the 1785-KA5 Data Highway Plus communication adapter or a 1784-KTX DH+ interface card can be retained alongside the new memory module, preserving existing SCADA and HMI polling routines.

Sites transitioning from older 1771-SDN DeviceNet Scanner or 1771-ASB Remote I/O Adapter configurations will find that the 1775-MEA upgrade does not disrupt remote I/O rack addressing or scanner table assignments. If the retrofit scope includes replacing aging 1771-OAD or 1771-IAD discrete I/O modules, these can be swapped concurrently without affecting the memory module installation sequence. For projects that also require programming interface updates, the 1784-U2DHP USB-to-DH+ converter provides a modern laptop connection to the PLC-5 processor for program upload and verification after the 1775-MEA is seated.

Retrofit Guidance FAQ

Q: Do I need to rewire anything when replacing the 1775-MEA?
No. The 1775-MEA installs directly into a 1771 chassis slot with no field wiring connections. All I/O wiring at the terminal base assemblies remains undisturbed.

Q: Will my existing ladder logic program survive the module swap?
The program resides in the PLC-5 processor’s battery-backed RAM, not in the 1775-MEA itself. The expansion module provides additional data table memory. After installation, upload your program from the processor using Rockwell’s APS or RSLogix 5 software to verify integrity before returning the system to run mode.

Q: Is the 1775-MEA compatible with DH+ and Remote I/O networks?
Yes. The module does not affect the processor’s communication ports. DH+ node addressing, Remote I/O rack/group assignments, and DH-485 configurations are all preserved after the memory expansion.

Q: What if my 1771 chassis slot is in a tight control cabinet?
The 1775-MEA occupies a single 1771 slot. No additional panel space or DIN rail mounting is required. Ensure the chassis power supply (e.g., 1771-P4S) is rated for the additional module load before installation.

Q: Can I use the 1775-MEA as a direct replacement for smaller memory modules?
Yes. The 1775-MEA is backward compatible with PLC-5 processors that previously used 16K or 32K RAM expansion modules. The processor will recognize the full 64K capacity after a cold restart.

Q: What programming software is required for post-installation verification?
Rockwell Automation’s RSLogix 5 (or legacy APS 6200) is required to upload, verify, and re-download the ladder logic program. No special configuration is needed for the memory module itself.

Warranty Assurance

Every 1775-MEA shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each module undergoes functional inspection including backplane connector integrity checks and memory read/write verification where test equipment permits. If a unit fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment promptly — no lengthy RMA bureaucracy.

We understand that unplanned downtime in industrial environments carries significant operational cost. Our procurement team maintains buffer stock of critical PLC-5 series components to support urgent orders. Standard lead time is 3–7 business days for international shipments from Xiamen, China, with express options available. All units are shipped with anti-static packaging and include a basic inspection report.

For volume orders, OEM integrators, and MRO procurement teams, TOPNLMS offers consolidated invoicing, advance replacement agreements, and technical pre-sales support to confirm compatibility before purchase commitment.
