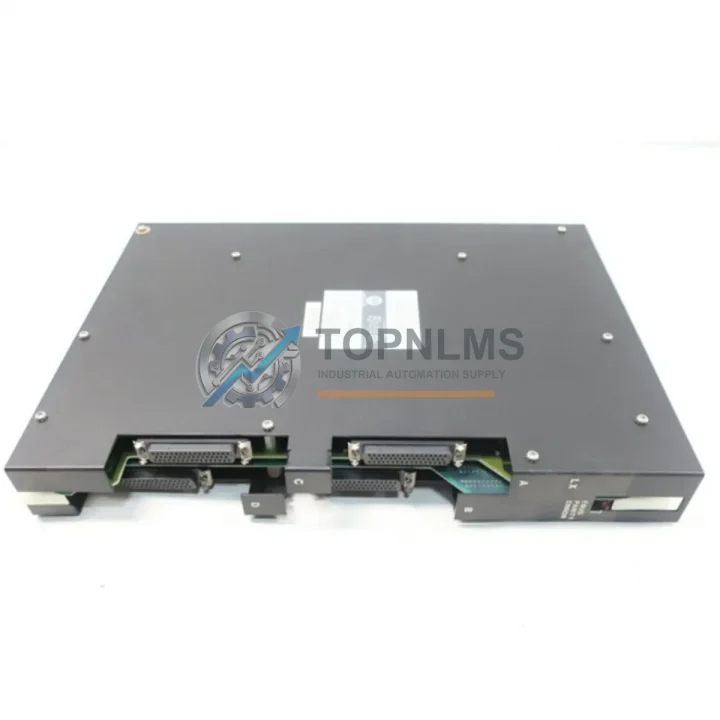

Allen-Bradley 1775-LX Ruggedized DH/DH+ Adapter for Harsh Environments

The Allen-Bradley 1775-LX is a purpose-engineered Data Highway / Data Highway Plus (DH/DH+) communication adapter module designed for the PLC-3 control platform — one of Rockwell Automation’s most enduring and field-proven programmable logic controller families. Built to operate reliably in the demanding conditions found across heavy industry, the 1775-LX delivers stable, deterministic network communication even in environments characterized by extreme temperature cycling, high ambient humidity, airborne particulate contamination, continuous mechanical vibration, and intense electromagnetic interference (EMI). Where lesser communication hardware fails, the 1775-LX maintains the real-time data exchange that keeps production lines, safety interlocks, and supervisory control systems synchronized and operational.

Industrial facilities running continuous processes — from petrochemical refineries and offshore platforms to steel mills and municipal water treatment plants — cannot afford communication dropouts. The 1775-LX bridges the PLC-3 processor rack to the DH+ network backbone, enabling peer-to-peer messaging, remote I/O coordination, and SCADA integration without introducing latency or packet loss. Its rugged backplane interface and shielded signal paths are engineered to reject the high-frequency noise generated by variable frequency drives (VFDs), large motor starters, and arc welding equipment commonly found in the same control cabinets and plant floors where PLC-3 systems operate.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1775-LX does not operate in isolation — it is a critical link in a broader control architecture that depends on the coordinated performance of multiple hardware components. In a typical PLC-3 control cabinet, the 1775-LX works alongside the Allen-Bradley 1775-ME processor module, which handles ladder logic execution and I/O scanning, while the 1775-S4B power supply module provides the regulated 5 VDC and 24 VDC rails that sustain the entire rack under load fluctuations common in heavy industrial environments. Discrete field signals are conditioned and isolated through 1771-series I/O modules — including digital input modules such as the 1771-IB and output modules such as the 1771-OB — before being passed to the processor for control decisions.

On the network side, the 1775-LX connects to DH+ segments that may also carry Allen-Bradley 1785-series PLC-5 processors, 1747-series SLC 500 controllers, and Panelview operator terminals, all sharing the same communication highway. In installations where the DH+ segment must interface with modern Ethernet-based supervisory systems, a 1761-NET-AIC or 1784-PKTX communication interface card bridges the legacy network to contemporary SCADA or MES platforms without requiring a full control system migration.

Safety-critical applications often pair the 1775-LX with dedicated safety relay modules and emergency stop monitoring circuits housed in the same control panel. Surge protection devices on the DH+ cable shield terminations, combined with proper grounding of the 1775-S4B power supply chassis, significantly reduce the risk of communication faults caused by lightning-induced transients or ground potential differences between remote I/O drops. For facilities operating in classified hazardous areas (Zone 1 / Zone 2 or Division 1 / Division 2), the control cabinet housing the PLC-3 rack and 1775-LX must meet the appropriate explosion-proof or purged-and-pressurized enclosure standards, ensuring that the communication adapter’s reliable operation does not become a liability in flammable atmosphere environments.

Application in Critical Infrastructure

Across the oil and gas sector, Allen-Bradley PLC-3 systems equipped with the 1775-LX communication adapter have been deployed in wellhead control panels, pipeline compressor stations, and offshore platform process control rooms where continuous uptime is non-negotiable. The adapter’s deterministic DH+ communication ensures that emergency shutdown (ESD) commands propagate to field devices within the required response time, even when the network is simultaneously carrying routine process data and operator HMI traffic.

In mining operations, the 1775-LX supports conveyor belt management systems, crusher control panels, and ventilation automation networks where coal dust, silica particulate, and high ambient vibration from blasting and heavy machinery create an exceptionally hostile operating environment. The module’s robust backplane connection and shielded signal architecture maintain communication integrity across long cable runs between surface control rooms and underground substations.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on PLC-3 platforms for boiler management, turbine sequencing, and auxiliary system control. The 1775-LX enables these distributed control nodes to report status and receive setpoint updates from the plant DCS or SCADA system in real time, supporting both normal operations and fault-response procedures. Water treatment and wastewater management plants similarly depend on reliable PLC-3 communication for pump station automation, chemical dosing control, and regulatory compliance monitoring, where a communication failure can result in process upsets with environmental and public health consequences.

In metals and steel production, the 1775-LX withstands the intense electromagnetic interference generated by electric arc furnaces, induction heating systems, and large DC drive systems, maintaining the network integrity that coordinates rolling mill speed references, cooling water flow control, and quality inspection systems across the production line.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 1775-LX?
The 12-month warranty covers all manufacturing defects and functional failures under normal industrial operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing to verify communication initialization, backplane interface integrity, and DH+ network handshake performance. If a covered fault is identified within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer.

Q2: How is each 1775-LX tested before shipment?
Every 1775-LX unit is bench-tested prior to dispatch using Allen-Bradley-compatible test fixtures that simulate PLC-3 backplane power and DH+ network traffic. Functional verification includes power-on self-test (POST) completion, backplane communication handshake, and DH+ node address assignment. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1775-LX compatible with both DH and DH+ networks?
Yes. The 1775-LX supports both the original Data Highway (DH) protocol and the enhanced Data Highway Plus (DH+) protocol, making it compatible with mixed-generation Allen-Bradley network architectures. It can coexist on DH+ segments shared with PLC-5, SLC 500, and Panelview devices without requiring network reconfiguration, provided that node addresses are assigned correctly and the baud rate is set consistently across all network nodes.

Q4: Can TOPNLMS support long-term or repeat supply of the 1775-LX for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of legacy Allen-Bradley PLC-3 series components, including the 1775-LX, to support planned maintenance shutdowns, emergency spare parts programs, and capital project builds. Customers with ongoing requirements are encouraged to contact our team to discuss blanket purchase agreements, reserved stock arrangements, and lead time commitments that align with their maintenance planning cycles.
