Allen-Bradley 1771-WS Replacement/Upgrade for PLC-5

Product Overview

Allen-Bradley 1771-WS Replacement/Upgrade Solution for PLC-5: Smooth Migration from Legacy Weigh Scale Systems

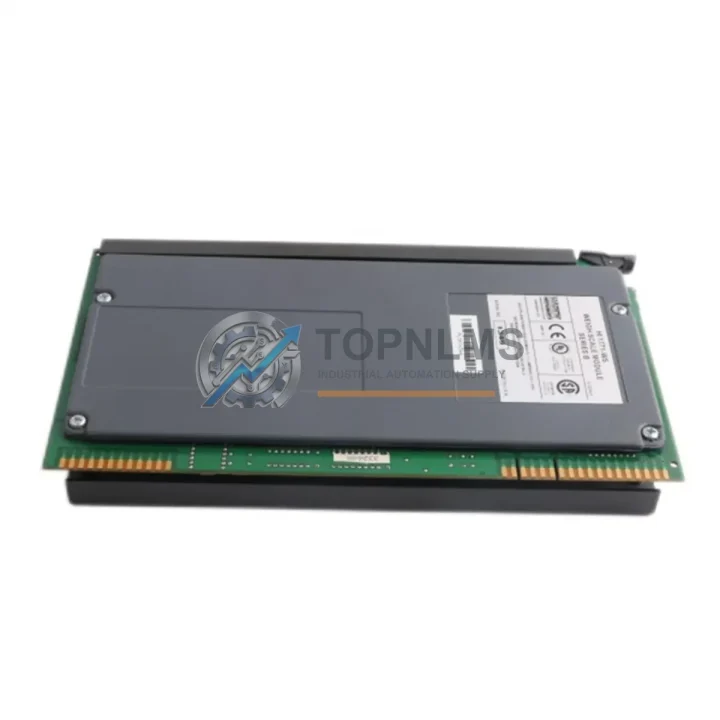

The Allen-Bradley 1771-WS Weigh Scale Module is a dedicated analog input module designed for the PLC-5 I/O chassis platform, providing precision weight measurement and process control integration for industrial weighing applications. As Rockwell Automation has discontinued the 1771-WS and its associated PLC-5 series hardware, facilities running legacy batching, filling, blending, and conveyor weighing systems now face an urgent need for a reliable replacement or upgrade path that minimizes downtime and preserves existing wiring infrastructure.

TOPNLMS supplies tested, verified 1771-WS modules sourced from authorized channels, with full functional inspection prior to shipment. Whether your objective is a direct like-for-like replacement to extend the life of your existing PLC-5 rack, or a phased migration toward a modern ControlLogix or CompactLogix platform, our technical team can support both strategies with in-stock inventory, documentation, and post-sale assistance.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1771-WS replacement or system migration rarely involves a single module in isolation. In most PLC-5 weigh scale installations, the 1771-WS operates alongside a broader set of I/O and communication infrastructure that must be evaluated as part of any upgrade plan.

For facilities performing a direct swap within an existing PLC-5 rack, the 1771-WN wiring arm and 1771-WG wiring arm are the field-side termination components that connect load cell cabling to the module. These are often worn or corroded in long-running installations and should be inspected or replaced simultaneously. The 1771-P4S power supply module that feeds the chassis should also be verified for adequate capacity, particularly if additional I/O modules such as the 1771-OAD analog output module or 1771-IFE analog input module are present in the same rack.

For facilities on a phased migration path toward a ControlLogix architecture, the 1756-DHRIO communication module is commonly used to bridge the existing DH+ network — preserving communication with remote I/O drops and SCADA systems while the new controller is commissioned in parallel. The 1756-L73 ControlLogix controller paired with a 1756-A10 chassis provides a natural landing platform for migrated weigh scale logic, with the 1756-LSC8XIB8I load cell/scale module serving as the functional equivalent of the 1771-WS in the new architecture.

In installations where the weigh scale data feeds into a batching or blending HMI, the PanelView Plus 7 (2711P series) terminal is the recommended upgrade from legacy PanelView 550 or 900 displays, maintaining FactoryTalk View compatibility and preserving operator screen layouts with minimal redesign. Where signal isolation between the load cell transmitter and the PLC analog input is required — particularly in high-noise environments near VFDs or large motor starters — a signal isolator/conditioner module inserted at the field terminal block eliminates ground loop interference without altering the module’s block transfer configuration.

All of the above components are available through TOPNLMS with verified stock, pre-shipment functional testing, and consolidated shipping to reduce logistics complexity during your maintenance window.

Retrofit Guidance FAQ

Q: Can I swap the 1771-WS without rewiring the load cell?
A: Yes. The 1771-WS uses a standard 1771-WN or 1771-WG wiring arm that connects directly to the existing field cable. As long as the wiring arm is in serviceable condition, the load cell wiring does not need to be disturbed. Verify terminal torque and insulation integrity before powering up.

Q: Do I need to modify my RSLogix 5 program after the swap?
A: For a direct module replacement, no program changes are required. The block transfer read (BTR) and block transfer write (BTW) instructions in your existing ladder logic will communicate with the replacement 1771-WS using the same data file structure. Calibration parameters stored in the module (zero, span, filter settings) will need to be re-entered after the swap.

Q: Is the 1771-WS compatible with all 1771 chassis variants?
A: The 1771-WS is a single-slot module compatible with the full range of 1771 I/O chassis, including the 1771-A1B (4-slot), 1771-A2B (8-slot), 1771-A3B (12-slot), and 1771-A4B (16-slot). Slot assignment is configurable via the module’s address selection switches.

Q: What communication protocol does the 1771-WS use?
A: The module communicates exclusively via the 1771 parallel backplane. It does not have an independent Ethernet/IP, DeviceNet, or ControlNet port. All data exchange with the PLC-5 processor occurs through block transfer instructions over the backplane. If your migration target is a ControlLogix system, a gateway or a native ControlLogix weigh module will be required.

Q: How much physical space does the replacement require in the control cabinet?
A: The 1771-WS occupies a single slot in the 1771 chassis. No additional DIN rail space, external power supply, or cabinet modification is required for a direct replacement. The module’s depth and connector profile are identical to the original, ensuring fit within existing enclosures.

Q: Can TOPNLMS support a full PLC-5 to ControlLogix migration project?
A: Yes. TOPNLMS can supply both the interim 1771-WS replacement modules to maintain production continuity and the ControlLogix destination hardware — including controllers, chassis, communication modules, and weigh scale I/O — to support a phased cutover strategy that eliminates unplanned downtime.

Warranty Assurance

Every 1771-WS module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection that includes backplane communication verification, analog input channel calibration check, and power consumption measurement. A test certificate is available upon request.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, with priority processing for customers experiencing production-critical failures. Our average response time for warranty inquiries is within one business day. Replacement units are dispatched from our Xiamen warehouse with express international shipping options including DHL, FedEx, and UPS, with typical transit times of 3–7 business days to most destinations.

For customers requiring advance replacement (ship-before-return), this service is available upon request for qualified accounts. All warranty claims are handled directly by our technical team — no third-party service centers, no automated queues.

TOPNLMS maintains stock of the 1771-WS and related PLC-5 I/O modules specifically to support legacy system maintenance and emergency replacement scenarios. Bulk purchase agreements with extended warranty terms are available for MRO and OEM customers managing large installed bases of PLC-5 equipment.
