Allen-Bradley 1771-P2 Ruggedized Power Supply Module

Product Overview

Allen-Bradley 1771-P2 Ruggedized Power Supply Module: Industrial Resilience for Harsh Environments

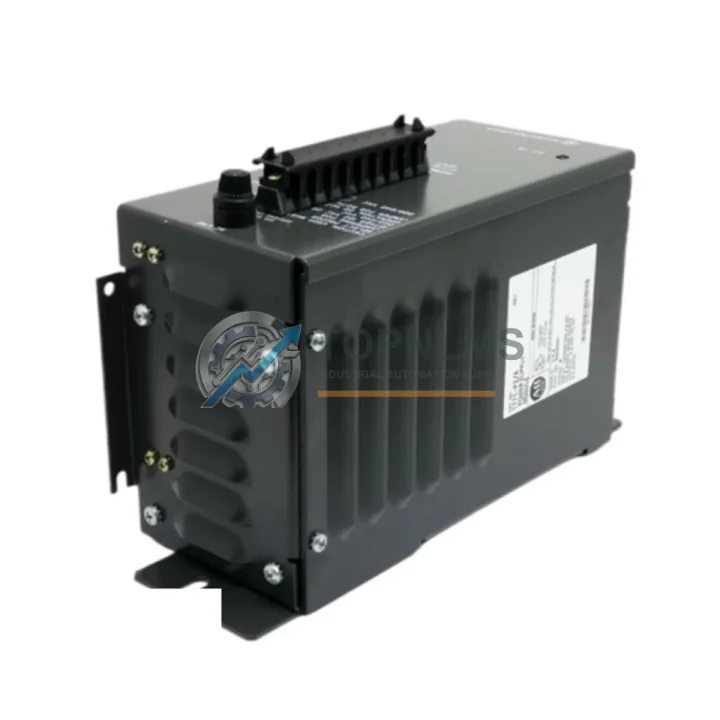

The Allen-Bradley 1771-P2 Auxiliary Power Supply Module is engineered to deliver uninterrupted, stable DC power to PLC-5 I/O chassis in the most demanding industrial environments. Designed and manufactured by Rockwell Automation under the proven 1771 Series platform, this module has earned its reputation across decades of continuous-duty deployments in oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing. Where ambient temperatures fluctuate, humidity is uncontrolled, airborne particulates are constant, and electromagnetic interference is unavoidable, the 1771-P2 continues to perform — cycle after cycle, shift after shift.

Unlike generic power supply alternatives, the 1771-P2 is purpose-built for the Allen-Bradley PLC-5 backplane architecture. It supplies auxiliary power to I/O chassis expansion racks, ensuring that every connected input and output module — from discrete digital I/O cards to analog signal conditioners — receives clean, regulated voltage without ripple or dropout. This is not a convenience component; it is a critical infrastructure element whose failure can halt an entire production line.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated PLC-5 control system, the 1771-P2 does not operate in isolation — it anchors a broader ecosystem of protection, control, and communication hardware. When specifying or replacing this module, engineers and procurement teams should consider the complete system context.

The Allen-Bradley 1771-P4 power supply module serves as the primary chassis power source in larger I/O rack configurations, and the 1771-P2 supplements it in expansion racks — together they ensure no single point of power failure can cascade across the control system. Upstream, the 1771-ASB (Adapter/Scanner Backplane) module manages communication between the PLC-5 processor and remote I/O chassis, relying on stable auxiliary power from the 1771-P2 to maintain scan integrity.

On the processor side, the Allen-Bradley 1785-L40B PLC-5/40 processor depends on correctly powered I/O racks to execute ladder logic without I/O faults. Pairing the 1771-P2 with properly rated 1771-OBD discrete output modules and 1771-IFE analog input modules ensures the entire signal chain — from field sensor to controller — remains electrically stable under load transients.

For installations where the control cabinet also houses Allen-Bradley 1492 terminal blocks and 1492-CABLE pre-wired I/O cable assemblies, the 1771-P2’s regulated output prevents ground loops and voltage sag that could corrupt analog readings or trigger spurious discrete outputs. In high-vibration environments such as mining conveyors or steel mill rolling lines, supplementing the power supply with 1771-WB wiring arm assemblies and properly torqued DIN rail mounting hardware further reduces the risk of intermittent contact failures.

Where safety-rated control is required — such as in SIL 2 or SIL 3 classified zones — the 1771-P2 is often deployed alongside Allen-Bradley GuardPLC safety controllers and 1791DS safety I/O modules, providing the auxiliary power backbone that safety-rated I/O demands. Communication modules such as the 1771-KGM (DH+/Remote I/O Gateway) also depend on stable chassis power to maintain deterministic network timing across distributed control architectures.

Application in Critical Infrastructure

The 1771-P2 has a proven deployment record across the most demanding sectors of critical infrastructure worldwide.

Oil & Gas: In upstream wellhead automation and midstream pipeline SCADA systems, the 1771-P2 powers I/O expansion racks that monitor pressure transmitters, flow meters, and emergency shutdown (ESD) valve actuators. Its ability to operate continuously in high-humidity, H₂S-rich atmospheres — when housed in appropriately rated enclosures — makes it a preferred auxiliary power source for remote RTU panels and compressor station control rooms.

Mining & Minerals Processing: Conveyor belt control systems, crusher automation, and flotation cell management in copper, gold, and coal operations rely on PLC-5 platforms that have been in continuous service for 15–25 years. The 1771-P2 is a critical spare for these long-lifecycle systems, where replacing the entire control platform is cost-prohibitive and operational continuity is paramount. High ambient dust concentrations and mechanical vibration from heavy equipment make the module’s robust construction essential.

Power Generation & Utilities: Turbine control auxiliaries, boiler management systems, and substation automation panels in coal-fired, hydroelectric, and combined-cycle power plants frequently incorporate PLC-5 I/O chassis. The 1771-P2 ensures that analog I/O modules monitoring steam temperature, generator excitation, and cooling water flow receive uninterrupted logic power — a failure here can trigger a forced outage with significant financial and grid-stability consequences.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent management systems operating 24/7 depend on reliable I/O power for pump control, chemical dosing, and SCADA telemetry. The 1771-P2’s compatibility with legacy PLC-5 architectures allows operators to extend the service life of existing control infrastructure without costly platform migrations.

Metallurgy & Heavy Industry: Electric arc furnace control, rolling mill automation, and continuous casting line management in steel and aluminum production expose control hardware to extreme thermal cycling, high electromagnetic interference from large motor drives, and airborne metallic particulates. The 1771-P2, properly installed in sealed NEMA 12 enclosures with filtered ventilation, maintains reliable I/O chassis power under these conditions.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Allen-Bradley 1771-P2?
All 1771-P2 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions. Each unit undergoes pre-shipment functional testing — including power-on verification and output voltage measurement — before dispatch. If a module fails within the warranty period, TOPNLMS will arrange replacement or credit upon return and inspection.

Q2: How is the 1771-P2 tested before shipment?
Every unit is bench-tested prior to shipment. Our quality control process includes visual inspection for physical damage, power-on functional verification, output voltage stability measurement under load, and connector integrity checks. Modules that do not meet specification are quarantined and not offered for sale. Test records are available upon request for critical infrastructure procurement.

Q3: Is the 1771-P2 compatible with all PLC-5 I/O chassis configurations?
The 1771-P2 is designed specifically for Allen-Bradley 1771-series I/O chassis used with PLC-5 processors. It is compatible with 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B chassis in expansion rack configurations. It is not interchangeable with ControlLogix (1756-series) or CompactLogix (1769-series) power supplies. If you are unsure of compatibility with your specific chassis revision, contact our technical team with your chassis catalog number and we will confirm before shipment.

Q4: Can TOPNLMS support long-term or repeat supply of the 1771-P2 for ongoing maintenance programs?
Yes. TOPNLMS maintains stock of legacy Allen-Bradley 1771-series components specifically to support long-lifecycle industrial systems where OEM availability has been discontinued or lead times are extended. We can support blanket purchase orders, scheduled releases, and consignment arrangements for facilities with ongoing spare parts programs. Contact our team to discuss volume pricing, reserved stock agreements, and documentation requirements for your maintenance management system.
