Allen-Bradley 1771-OZL Replacement/Upgrade Solution for PLC-5

Product Overview

Allen-Bradley 1771-OZL Replacement/Upgrade Solution for PLC-5: Seamless Transition from Legacy Systems

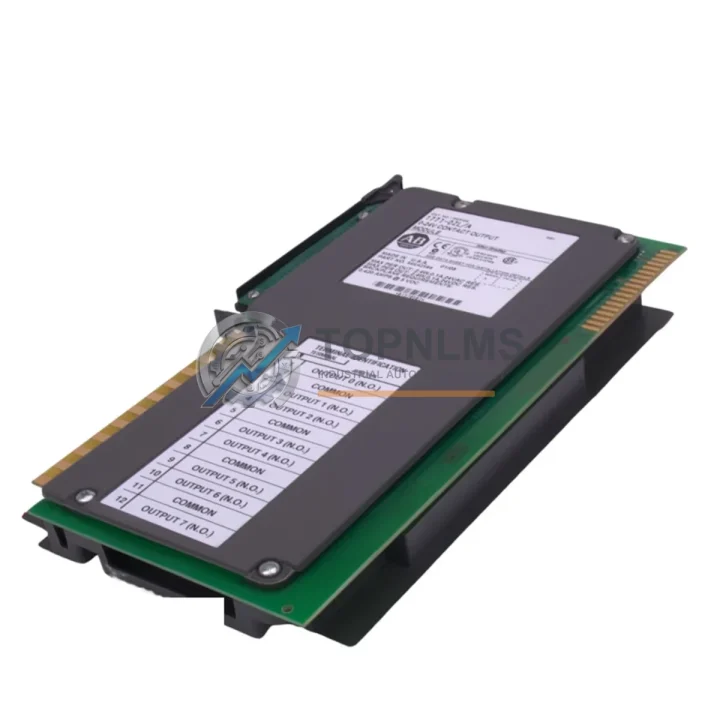

The Allen-Bradley 1771-OZL is a 16-Point 24VDC Sourcing Output Module designed for the PLC-5 platform — one of the most widely deployed programmable logic controller families in industrial automation history. As the PLC-5 series has reached end-of-life status, facilities running legacy 1771 I/O chassis are increasingly challenged by discontinued spare parts, aging field wiring, and the growing risk of unplanned downtime. TOPNLMS supplies verified replacement and upgrade-compatible units of the 1771-OZL to support your migration strategy, whether you are maintaining an existing PLC-5 installation or planning a phased transition to a modern control architecture.

Each unit shipped by TOPNLMS undergoes pre-shipment functional testing to confirm output channel integrity, backplane communication, and module identification. We maintain stock of the 1771-OZL alongside complementary 1771-series I/O modules to support complete rack-level replacements without requiring immediate system-wide migration.

Compatibility Comparison Table

Seamless Upgrade Solutions

When replacing the 1771-OZL in an active PLC-5 installation, the surrounding system components are equally critical to a successful retrofit. In most field scenarios, the 1771-OZL is installed alongside a 1771-IA input module or a 1771-IB 16-point 24VDC sinking input module within the same 1771-A2B or 1771-A4B I/O chassis. The chassis backplane and the 1771-P4 or 1771-P7 power supply must be verified for adequate current capacity before inserting a replacement output module, particularly in high-density rack configurations where multiple sourcing output modules share the same power rail.

Field wiring to the 1771-OZL is typically terminated through a 1771-WN wiring arm, which connects directly to the module’s field-side connector. When replacing the module, the wiring arm can remain in place, allowing the new 1771-OZL unit to be inserted without disturbing field wiring — a critical advantage for minimizing downtime in live production environments. If the wiring arm shows signs of wear or connector damage, a replacement 1771-WB or 1771-WN arm should be sourced simultaneously.

For facilities that have already migrated the PLC-5 processor to a ControlLogix 1756-L series controller but retained the 1771 I/O chassis for field wiring continuity, the 1756-DHRIO or 1756-RIO Remote I/O adapter module is typically used to bridge the ControlLogix backplane to the legacy 1771 I/O rack. In this architecture, the 1771-OZL continues to function as a remote I/O output module, and a direct replacement unit can be installed without any changes to the ControlLogix program or the 1756-DHRIO configuration.

Where a full platform migration is planned — moving from PLC-5 and 1771 I/O to a ControlLogix or CompactLogix architecture — the 1771-OZL’s 16-point 24VDC sourcing output function maps directly to the 1756-OB16 or 1769-OB16 output module. However, this migration requires chassis replacement, program conversion from RSLogix 5 to Studio 5000, and re-termination of field wiring to the new 1492 interface module or IFM terminal block system. TOPNLMS can supply both the legacy 1771-OZL for interim operation and the target-platform 1756-OB16 for the migration endpoint, supporting a phased approach that avoids a single high-risk cutover event.

Communication infrastructure upgrades often accompany I/O module replacements. If the existing system uses a 1785-KA5 DH+ to RS-232 interface or a 1770-KF2 communication module for programming access, these components should be evaluated as part of the overall modernization plan. Similarly, if the PLC-5 processor communicates to SCADA or HMI systems via a 1784-PKTX or 1784-U2DHP USB-to-DH+ adapter, the communication path must be preserved or re-routed during any I/O rack maintenance window.

Retrofit Guidance FAQ

Q: Can I replace the 1771-OZL without removing field wiring?
Yes. The 1771-OZL uses a removable wiring arm (1771-WN or 1771-WB). The wiring arm disconnects from the module and remains in the chassis slot. The replacement module slides in and the wiring arm reconnects — no field wire disturbance required. Always power down the I/O chassis before removing or inserting modules.

Q: Will the replacement 1771-OZL require any program changes in RSLogix 5?
No. A direct replacement 1771-OZL unit in the same chassis slot will be recognized by the PLC-5 processor with the same I/O address map. No program modifications, force tables, or I/O configuration changes are required, provided the module is installed in the identical slot position.

Q: Is the 1771-OZL compatible with both 1771-A2B and 1771-A4B chassis?
Yes. The 1771-OZL is compatible with all standard 1771 I/O chassis variants, including the 1771-A1B (4-slot), 1771-A2B (8-slot), 1771-A3B1 (12-slot), and 1771-A4B (16-slot). Slot assignment is flexible within the chassis, subject to power supply current budget constraints.

Q: What communication protocol does the 1771-OZL use?
The 1771-OZL is a passive I/O module — it does not have an independent communication protocol. It communicates via the 1771 I/O chassis backplane, which is managed by the PLC-5 processor or a remote I/O adapter such as the 1747-ASB or 1756-RIO. The module itself requires no protocol configuration.

Q: Can the 1771-OZL be used in a ControlLogix system with a 1756-RIO adapter?
Yes. When a 1756-RIO or 1756-DHRIO adapter is used to connect a ControlLogix processor to a legacy 1771 I/O chassis, the 1771-OZL functions as a remote discrete output module. The ControlLogix program addresses the module through the remote I/O rack and slot mapping configured in the 1756-RIO adapter.

Q: What is the output current rating per point for the 1771-OZL?
The 1771-OZL provides 1A per output point at 24VDC, with a maximum total module current of 8A. Verify that the connected load devices — solenoid valves, relay coils, indicator lamps, or motor starters — do not exceed the per-point or aggregate current limits.

Q: How do I verify the module is functioning correctly after installation?
After installation, use the RSLogix 5 I/O status display or the PLC-5 processor’s I/O fault table to confirm the module is recognized and reporting no faults. Force individual output bits to ON state and verify field device activation using a multimeter or indicator lamp at the wiring arm terminals.

Warranty Assurance

Every 1771-OZL unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a structured pre-shipment test protocol that includes backplane communication verification, per-channel output activation, and visual inspection for connector integrity and board condition. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Warranty claims are processed within 3 business days of receipt of the returned unit. Return shipping for confirmed defective units is covered by TOPNLMS for orders within mainland China; international return shipping terms are confirmed at the time of order.

TOPNLMS maintains a standing inventory of 1771-series I/O modules to support rapid fulfillment. Standard orders ship within 1–3 business days from our Xiamen warehouse. Express international shipping options are available for urgent plant maintenance requirements. All units are packed in anti-static packaging with individual serial number documentation for traceability.

For procurement inquiries, bulk order pricing, or technical pre-sales support, contact our industrial automation team directly.
