Allen-Bradley 1771-OW Replacement for PLC-5 Series

Product Overview

Allen-Bradley 1771-OW Replacement for PLC-5 Series: Seamless Migration & Upgrade Solution

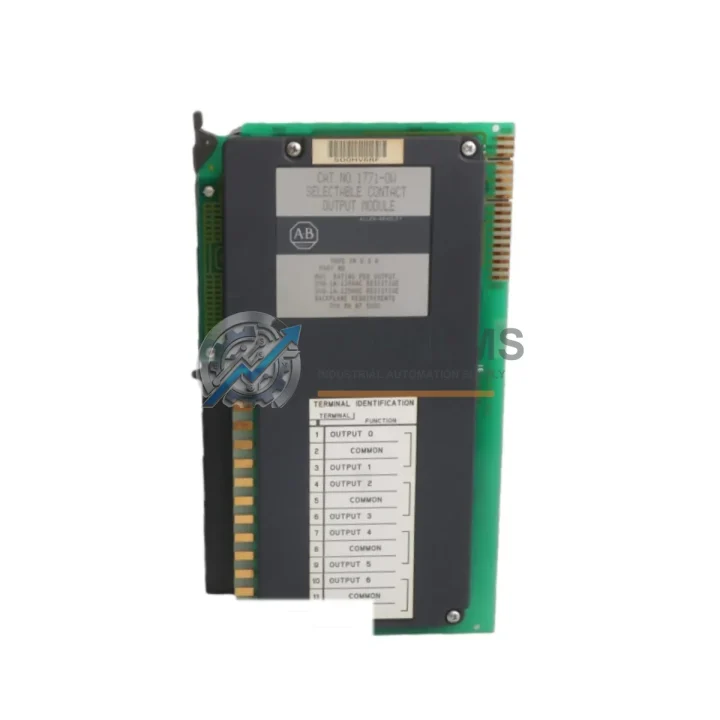

The Allen-Bradley 1771-OW is a 16-point relay output module designed for use within the 1771 I/O chassis platform, a cornerstone of Rockwell Automation’s legacy PLC-5 control architecture. As PLC-5 systems approach end-of-life and spare parts become increasingly scarce, facilities relying on 1771-series I/O modules face mounting pressure to source verified replacement units or plan structured migration paths to modern control platforms. TOPNLMS supplies tested, ready-to-ship 1771-OW modules to support both immediate breakdown recovery and phased system modernization projects.

The 1771-OW module provides 16 isolated relay output points, each capable of switching AC or DC loads. Its relay contact architecture makes it inherently compatible with a wide range of field devices — motor starters, solenoid valves, pilot lights, and alarm circuits — without requiring additional signal conditioning. This broad load compatibility is a key reason why the 1771-OW remains in active service across petrochemical, water treatment, automotive assembly, and discrete manufacturing facilities worldwide, even as the broader PLC-5 platform has been discontinued by Rockwell Automation.

When sourcing a replacement 1771-OW, the primary concern for maintenance engineers is slot-for-slot compatibility within the existing 1771 I/O chassis. The module occupies a single slot in any standard 1771 chassis — including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B backplane configurations — and communicates with the PLC-5 processor via the standard 1771 I/O bus. No rewiring of the field terminal assembly is required when replacing a failed 1771-OW with a verified unit of the same revision level, which dramatically reduces downtime during emergency maintenance windows.

For facilities undertaking a broader PLC-5 migration to ControlLogix or CompactLogix platforms, the 1771-OW is frequently retained in service during the transition period using a 1756-DHRIO or 1771-SDN DeviceNet Scanner bridge, allowing the legacy I/O chassis to remain online while the new controller is commissioned. In parallel migration projects, the 1771-OW output wiring is typically preserved intact and reconnected to a 1756-OB16 or 1756-OW16I relay output module in the new 1756 ControlLogix chassis once the cutover is complete. This approach minimizes field rewiring costs and reduces the risk of wiring errors during the transition.

Communication between the PLC-5 processor and the 1771-OW is handled entirely through the 1771 I/O backplane — there is no separate network configuration required for the output module itself. However, when migrating to a ControlLogix architecture, engineers must account for the I/O tree restructuring in Studio 5000 Logix Designer, remapping the original PLC-5 output file addresses (O:xx/yy format) to the new tag-based addressing structure. TOPNLMS can provide technical documentation to support this remapping process upon request.

Power supply compatibility is another critical consideration. The 1771-OW relay coils are powered from the 1771 chassis backplane supply, while the relay output contacts are isolated and powered by the field load circuit. This means the module is compatible with any standard 1771 chassis power supply — including the 1771-P4S, 1771-P6S, and 1771-P7 — without modification. When replacing a failed module, engineers should verify that the chassis power supply is within specification before installing the replacement unit, as an undersized or degraded power supply is a common secondary cause of module failure in aging PLC-5 systems.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PLC-5 system migration rarely involves replacing a single module in isolation. In most retrofit projects, the 1771-OW is one component within a broader I/O chassis upgrade. Engineers typically source the 1771-OW alongside complementary 1771-series modules to complete the I/O chassis population — including the 1771-IB16 16-point DC input module, the 1771-OBD 16-point DC output module, and the 1771-IA 16-point AC input module for mixed-signal applications. Where analog process signals are involved, the 1771-IF4 analog input module and 1771-OF4 analog output module are commonly required to maintain process variable monitoring and control loop integrity during the transition period.

For facilities bridging PLC-5 systems to modern networks, the 1771-SDN DeviceNet Scanner module is frequently deployed alongside the 1771-OW to extend the legacy chassis onto a DeviceNet segment, enabling communication with variable frequency drives, smart motor controllers, and distributed I/O blocks without replacing the entire control system. Similarly, the 1771-KF2 DH+ communication module is often retained in service to maintain Data Highway Plus connectivity between the PLC-5 processor and existing HMI terminals or SCADA systems during the migration window.

When the migration scope extends to the processor itself, the 1771-OW chassis can be retained as a remote I/O drop connected to a new 1756 ControlLogix processor via a 1756-DHRIO Remote I/O Scanner, preserving the existing field wiring investment while delivering the processing power and memory capacity of the modern Logix platform. This hybrid architecture is particularly cost-effective in large installations where field rewiring costs would otherwise dominate the project budget.

Retrofit Guidance FAQ

Q: Can I install a replacement 1771-OW without rewiring the field terminal assembly?
A: Yes. The 1771-OW uses a standard 1771 field wiring arm (terminal assembly) that remains in place when the module is removed. The replacement module slides into the same chassis slot and connects to the existing wiring arm, eliminating the need for any field rewiring during an emergency replacement.

Q: Do I need to make any PLC-5 program changes after replacing a 1771-OW?
A: No program changes are required for a like-for-like module replacement. The PLC-5 processor addresses the 1771-OW by chassis slot position, so as long as the replacement module is installed in the same slot, the existing ladder logic program will operate without modification.

Q: Is the 1771-OW compatible with all PLC-5 processor variants?
A: Yes. The 1771-OW is compatible with all PLC-5 processor families — including the PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, and PLC-5/80 — when installed in a standard 1771 I/O chassis. Compatibility is determined by chassis slot assignment, not by processor model.

Q: What communication protocol does the 1771-OW use?
A: The 1771-OW communicates exclusively via the 1771 I/O backplane bus. It does not have an independent network interface. When migrating to a ControlLogix system, the I/O chassis can be connected as a remote I/O drop via a 1756-DHRIO scanner, maintaining the existing I/O structure during the transition.

Q: How do I verify the physical condition of a replacement 1771-OW before installation?
A: All TOPNLMS-supplied 1771-OW modules undergo pre-shipment functional testing, including relay coil energization verification and contact continuity checks. A test report is available upon request. We recommend inspecting the module’s backplane connector pins and relay output terminal connections for corrosion or mechanical damage before installation in the field.

Q: Can the 1771-OW be used in a ControlLogix migration project?
A: Yes. During a phased ControlLogix migration, the existing 1771 I/O chassis — including the 1771-OW — can remain in service as a remote I/O drop connected to the new 1756 ControlLogix processor via a 1756-DHRIO module. This allows the migration to proceed in stages without requiring a full cutover of all field I/O simultaneously.

Warranty Assurance

Every 1771-OW module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, relay contact failures, and backplane interface faults identified under normal operating conditions. Modules that develop covered faults within the warranty period are eligible for replacement or repair at no additional cost to the buyer.

Prior to shipment, each module undergoes a documented functional test procedure that verifies relay coil operation, contact continuity across all 16 output points, and backplane connector integrity. A copy of the test record is available upon request and can be provided as part of the shipment documentation package for quality assurance purposes.

TOPNLMS maintains stock of 1771-OW modules to support both planned procurement and emergency breakdown orders. Standard lead time for in-stock units is 3–5 business days for international shipments via DHL Express or FedEx International Priority, with expedited same-day dispatch available for urgent breakdown situations. Customs documentation, including commercial invoices and packing lists with HS code classification, is prepared for all international shipments to minimize clearance delays.

For procurement inquiries, technical compatibility questions, or warranty claims, contact the TOPNLMS technical sales team directly. We support B2B buyers, MRO procurement teams, system integrators, and OEM partners with volume pricing, consolidated shipment options, and long-term supply agreements for legacy PLC-5 spare parts.
