Allen-Bradley 1771-OBD Replacement/Upgrade for PLC-5

Product Overview

Allen-Bradley 1771-OBD Replacement & Upgrade Solution for PLC-5: Smooth Migration from Legacy Output Modules

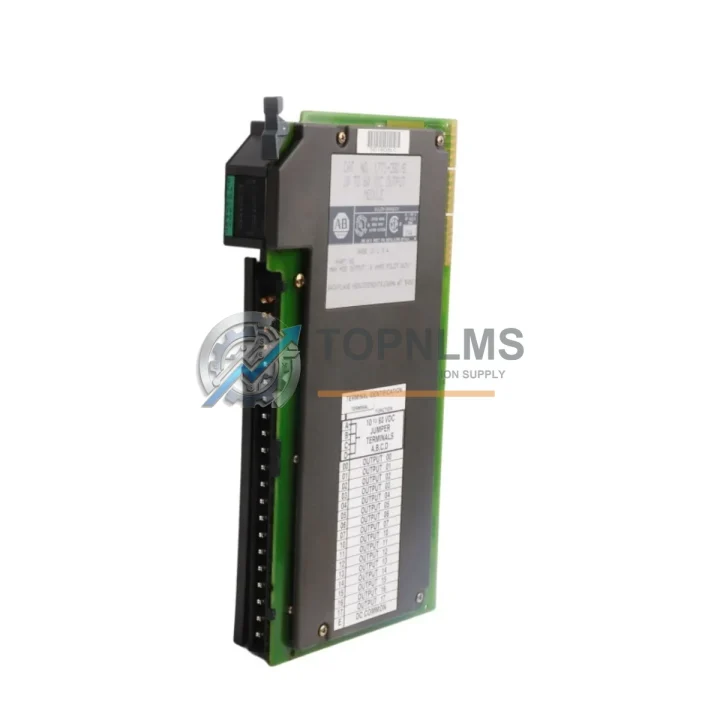

The Allen-Bradley 1771-OBD is a 16-point, 24VDC sourcing output module designed for the Allen-Bradley PLC-5 family — one of the most widely deployed programmable logic controller platforms in industrial automation history. As the PLC-5 platform reaches end-of-life and spare parts become increasingly scarce, facilities engineers and maintenance teams are actively seeking verified replacement and upgrade paths that minimize downtime, preserve existing wiring infrastructure, and maintain compatibility with established control architectures.

TOPNLMS supplies the 1771-OBD as a direct drop-in replacement for aging or failed output modules within the 1771 I/O chassis. Whether your facility is running a full PLC-5/10, PLC-5/20, PLC-5/30, PLC-5/40, or PLC-5/80 controller, this module slots into the existing 1771 I/O rack without requiring chassis modification, rewiring of field devices, or reprogramming of output rungs in your RSLogix 5 ladder logic project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy PLC-5 output module rarely involves a single component. In practice, field engineers replacing a failed 1771-OBD often discover that adjacent modules in the same 1771 I/O chassis are equally aged and at risk. A proactive approach to the upgrade involves auditing the full rack and addressing related components simultaneously to avoid repeat shutdowns.

The 1771-OBD typically shares a chassis with input modules such as the 1771-IBD (16-point 24VDC sinking input module), which handles field sensor signals feeding into the same PLC-5 program. If your input module is also showing intermittent faults or diagnostic errors in RSLogix 5, replacing both the output and input modules during the same maintenance window eliminates the need for a second planned outage.

Power distribution within the 1771 chassis is managed by the 1771-P4S or 1771-P7 power supply, depending on your chassis configuration. Before installing a replacement 1771-OBD, verifying that the chassis power supply is delivering stable 24VDC to the I/O backplane is a critical commissioning step — an undersized or aging power supply can cause the new output module to exhibit the same fault symptoms as the failed unit it replaced.

For facilities planning a longer-term migration from PLC-5 to ControlLogix or CompactLogix architecture, the 1756-OB16D (ControlLogix 16-point 24VDC sourcing output module) is the functional successor in the newer platform. This migration path typically involves installing a 1756-L73 or 1756-L83E ControlLogix controller in a 1756-A10 or 1756-A17 chassis, alongside a 1756-ENBT or 1756-EN2T EtherNet/IP communication module to replace the legacy DH+ or Remote I/O network previously used by the PLC-5 system.

Where the existing field wiring must be preserved during the platform migration, a 1771-SDN DeviceNet Scanner or a 1756-DNB DeviceNet Bridge module can serve as an interim communication bridge, allowing the new ControlLogix controller to communicate with legacy 1771 I/O racks during a phased cutover. This approach is particularly valuable in large installations where rewiring hundreds of field terminals simultaneously is not operationally feasible.

For facilities that must maintain the PLC-5 platform in the interim, ensuring an adequate stock of 1771-OBD modules — along with compatible 1771-WN wiring arms and 1771-CX cables — provides a reliable buffer against unplanned downtime while the longer-term migration project is planned and budgeted.

Retrofit Guidance FAQ

Q: Can I replace a failed 1771-OBD without modifying my RSLogix 5 program?
Yes. The 1771-OBD is a direct slot replacement. Output addressing (O:x.y bit mapping) remains identical. No rung edits, force tables, or I/O configuration changes are required in RSLogix 5.

Q: Is the wiring arm reusable from the old module?
Yes. The 1771-WN or 1771-WB wiring arm detaches from the failed module and connects directly to the replacement 1771-OBD. Field wiring does not need to be disturbed, which significantly reduces installation time and the risk of wiring errors during commissioning.

Q: What is the difference between sourcing (PNP) and sinking (NPN) output modules in the 1771 family?
The 1771-OBD is a sourcing (PNP) output module — it supplies 24VDC to the field device when the output is energized. Sinking modules (such as the 1771-OB) sink current from the field device to common. Verify your field device wiring polarity before substituting between sourcing and sinking variants.

Q: Can the 1771-OBD be used in any slot of the 1771 I/O chassis?
Yes. The 1771-OBD is compatible with all slot positions in 1771 I/O chassis of any size (4-slot, 8-slot, 12-slot, 16-slot). Slot assignment is configured in the PLC-5 I/O configuration table within RSLogix 5.

Q: What communication protocol does the 1771-OBD use?
The 1771-OBD communicates via the 1771 parallel backplane I/O protocol — a proprietary Allen-Bradley parallel bus architecture. It does not use EtherNet/IP, DeviceNet, or ControlNet. No protocol converters or gateways are required for a like-for-like replacement within the same PLC-5 system.

Q: How do I verify the module is functioning correctly after installation?
After seating the module and reconnecting the wiring arm, use the RSLogix 5 I/O status display to confirm the module is recognized by the PLC-5 processor. Force individual output bits ON/OFF and verify field device response. Check the module’s LED indicators: the green RUN LED should be steady, and no FAULT LED should be illuminated under normal operating conditions.

Warranty Assurance

Every Allen-Bradley 1771-OBD module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification testing to confirm output channel integrity, backplane communication, and LED indicator operation. Modules that do not pass outgoing inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for industrial customers experiencing production downtime. Our technical team is available to assist with installation verification, fault diagnosis, and compatibility confirmation before and after shipment.

We maintain stock of the 1771-OBD and related 1771 series components to support rapid order fulfillment. Standard orders are processed and dispatched within 1–3 business days from our Xiamen warehouse. Express shipping options are available for urgent replacement requirements.

For volume procurement, OEM partnerships, or standing purchase agreements for MRO (Maintenance, Repair & Operations) inventory programs, please contact our sales team directly to discuss pricing, lead times, and consignment stock arrangements.
