Allen-Bradley 1771-IM Replacement Solution for PLC-5

Product Overview

Allen-Bradley 1771-IM Replacement Solution for PLC-5: Smooth Migration from Legacy AC Input Systems

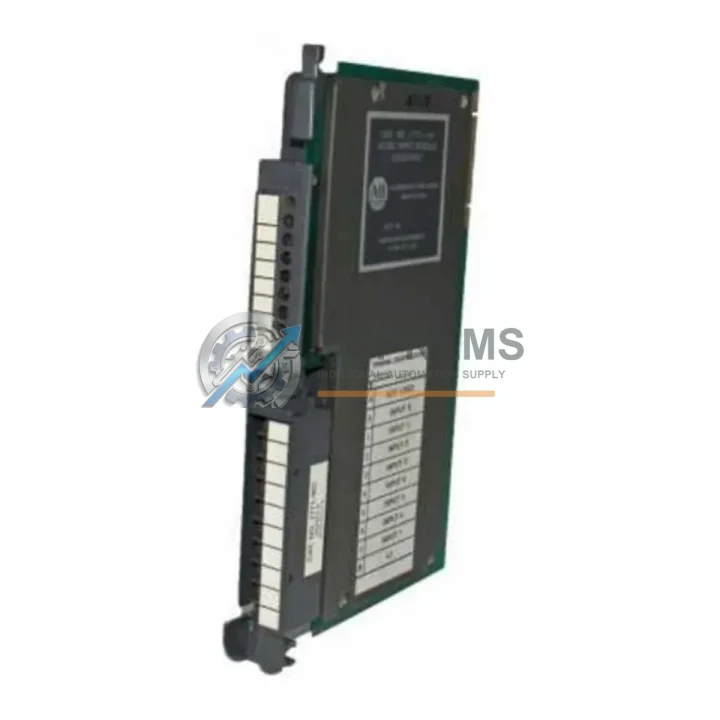

The Allen-Bradley 1771-IM is a 16-point, 220VAC AC Digital Input Module designed for the Allen-Bradley PLC-5 programmable controller platform. As the PLC-5 series has reached end-of-life and the 1771-IM has been officially discontinued by Rockwell Automation, many industrial facilities operating legacy control systems — including process lines, conveyor systems, packaging machinery, and utility infrastructure — are now facing urgent replacement and upgrade decisions.

TOPNLMS maintains verified stock of the 1771-IM and compatible PLC-5 I/O modules to support your migration, emergency replacement, or system modernization project. Each unit is pre-shipment tested, fully inspected, and backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1771-IM replacement or PLC-5 system migration typically involves more than a single module swap. Depending on your control architecture, the following components are commonly required alongside the 1771-IM to ensure a complete, stable upgrade.

If your facility is performing a like-for-like spare replacement within an existing PLC-5 rack, the 1771-IM installs directly into any open 1771 I/O chassis slot using the existing 1771-WN wiring arm. No field rewiring is needed, and the RSLogix 5 program requires no modification — making this the lowest-risk path to restoring production uptime.

For facilities planning a phased migration from PLC-5 to ControlLogix, the 1756-IA16 (16-point 120/240VAC AC input module for the 1756 ControlLogix chassis) is the functional equivalent in the modern platform. This migration typically also involves the 1756-A7 or 1756-A13 chassis, a 1756-L73 or 1756-L83E ControlLogix controller, and a 1756-PA72 or 1756-PB72 power supply module. Communication continuity from legacy DH+ networks can be maintained using a 1756-DHRIO bridge module, allowing the new ControlLogix system to communicate with existing PLC-5 or SLC 500 nodes during the transition period.

In mixed-architecture environments where the PLC-5 processor (such as the 1785-L40B or 1785-L80B) remains in service but individual I/O modules require replacement, the 1771-IM can be hot-swapped in most configurations without a full system shutdown, significantly reducing planned maintenance windows. Ensure the chassis power supply — typically a 1771-P4 or 1771-P7 — has sufficient current budget before adding or replacing modules.

Where EtherNet/IP integration is required for SCADA or MES connectivity, a 1761-NET-ENI or 1756-ENBT Ethernet bridge can be added to the existing PLC-5 system without replacing the entire control cabinet, providing a cost-effective path to modern network visibility while preserving the existing 1771 I/O investment.

For applications requiring signal conditioning between field devices and the 1771-IM input terminals — particularly in high-noise industrial environments — inline signal isolators or surge protection terminal blocks are recommended to protect the module inputs and extend service life.

Retrofit Guidance FAQ

Q: Can I replace the 1771-IM without modifying my RSLogix 5 program?
A: Yes. A direct 1771-IM replacement requires no program changes. The module occupies the same rack/slot address and the I/O map remains identical. Simply power down the chassis, remove the old module, insert the replacement, reconnect the wiring arm, and restore power.

Q: Is the 1771-IM compatible with both 1771-A1B and 1771-A4B chassis?
A: Yes. The 1771-IM is compatible with all standard 1771 I/O chassis variants (A1B through A4B) and occupies a single slot. Confirm the chassis power supply has sufficient 5VDC backplane current capacity.

Q: What communication protocol does the PLC-5 / 1771-IM system use?
A: The PLC-5 platform communicates via Data Highway Plus (DH+) or DH-485. The 1771-IM itself is a local I/O module and does not have an independent communication interface — it communicates through the PLC-5 processor backplane. For EtherNet/IP integration, a bridge module is required at the processor level.

Q: Can the 1771-IM be used in a ControlLogix or CompactLogix system?
A: No. The 1771-IM is designed exclusively for the 1771 I/O backplane and is not directly compatible with the 1756 ControlLogix or 1769 CompactLogix chassis. Migration to ControlLogix requires the 1756-IA16 or equivalent AC input module.

Q: How much physical space does the 1771-IM require in the control cabinet?
A: The 1771-IM occupies a single slot in the 1771 I/O chassis. No additional DIN rail space or external mounting is required. The wiring arm (1771-WN or 1771-WB) attaches directly to the module front.

Q: What is the input voltage range of the 1771-IM?
A: The 1771-IM accepts 100–240VAC inputs (nominally rated at 220VAC), making it suitable for both 110VAC and 220VAC field device wiring without hardware modification.

Warranty Assurance

Every Allen-Bradley 1771-IM unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional verification, visual inspection for physical damage, and confirmation of module identification markings and firmware revision where applicable.

In the event of a warranty claim, TOPNLMS provides direct replacement support — a verified replacement unit is dispatched promptly to minimize your production downtime. Our technical team is available to assist with installation confirmation, compatibility verification, and commissioning guidance via email and phone.

All units are carefully packaged in anti-static protective packaging and shipped with full tracking from our Xiamen warehouse. Standard lead time for in-stock items is 1–3 business days for domestic China shipments and 5–10 business days for international orders, subject to customs clearance.

For volume procurement, OEM replacement programs, or long-term spare parts agreements, please contact our sales team directly to discuss pricing, lead times, and consignment stock arrangements.
