Allen-Bradley 1771-IG Original Industrial Spare PLC-5 Compatible

Product Overview

Allen-Bradley 1771-IG Original Industrial Spare PLC-5 Compatible: Ensuring System Stability in Critical Automation Environments

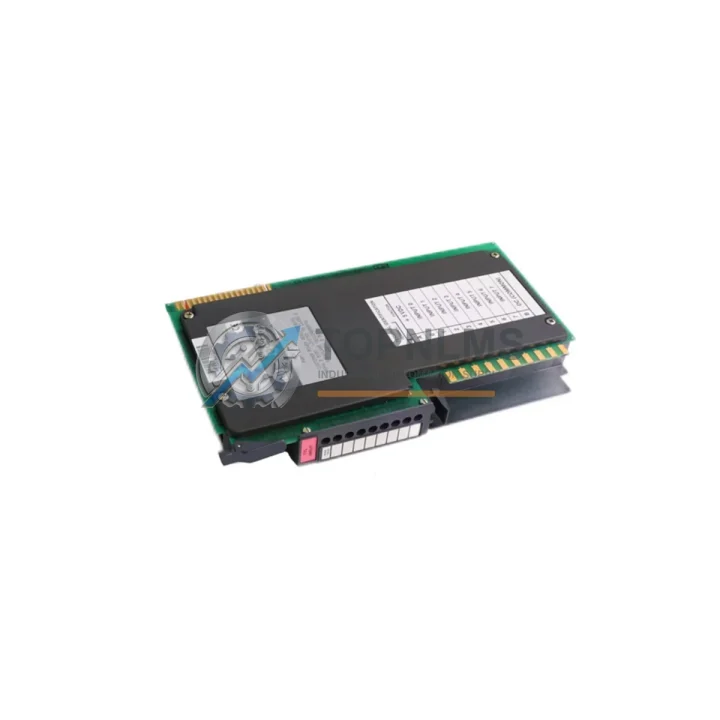

The Allen-Bradley 1771-IG is a 16-Point TTL (Transistor-Transistor Logic) Digital Input Module designed for use within the PLC-5 I/O chassis platform — one of the most widely deployed programmable logic controller architectures in heavy industry, automotive manufacturing, oil & gas processing, and utilities infrastructure. As a genuine original spare part sourced directly through authorized industrial channels, the 1771-IG represents a reliable, drop-in replacement solution for maintenance teams managing aging PLC-5 control systems that remain in active production service.

For facilities operating legacy Allen-Bradley PLC-5 systems, unplanned downtime caused by a failed digital input module can cascade into significant production losses within minutes. The 1771-IG addresses this risk directly: its 16-point TTL input architecture allows it to interface with a broad range of field devices — proximity sensors, limit switches, encoder outputs, and logic-level signals — without requiring rewiring or software reconfiguration when replacing a like-for-like module. Maintenance engineers can execute a hot-swap replacement during a scheduled maintenance window or emergency shutdown with confidence that the module will resume normal scan-cycle communication with the PLC-5 processor immediately upon reinsertion.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance approach for any PLC-5-based control system extends well beyond replacing a single input module. When a 1771-IG failure is identified — whether through a blown input indicator LED, a persistent input fault in the processor’s I/O status file, or erratic field signal behavior — experienced maintenance engineers treat it as a trigger for a broader cabinet inspection. The 1771 I/O chassis backplane that houses the 1771-IG is shared by all modules in the rack, meaning power distribution anomalies or backplane connector wear can affect adjacent modules simultaneously.

During the same maintenance window, it is advisable to inspect the 1771-P4S or 1771-P7 chassis power supply for output voltage stability, as TTL-level input modules are particularly sensitive to supply voltage deviations. A degraded power supply is a common root cause of intermittent input module faults that are misdiagnosed as module failures. Similarly, the 1771-OBD or 1771-OW16 digital output modules installed in adjacent slots should be checked for output continuity and relay contact wear, especially in high-cycle applications.

The 1771-ASB remote I/O adapter module — if present in the rack — should be verified for communication integrity, as a failing adapter can cause the entire rack’s I/O to drop offline, masking individual module faults. Alongside this, inspect the 1785-L40B or 1785-L80B PLC-5 processor module for battery backup status and memory integrity; a low processor battery can corrupt I/O configuration data and produce false input fault indications.

Field wiring connected to the 1771-IG’s terminal block should be inspected for insulation degradation, loose terminations, and ground faults — particularly in environments with high vibration or thermal cycling. This is also an appropriate time to verify the condition of the 1492-IFM series interface modules or terminal blocks used to transition field wiring to the I/O module, as corroded or loose terminals are a frequent source of intermittent input signal loss. If the system uses 1771-WB wiring arm assemblies, inspect the connector fingers for oxidation and replace if contact resistance has increased.

For facilities managing multiple PLC-5 racks across a plant floor, maintaining a minimum stock of one spare 1771-IG per active rack — alongside spares for the 1771-IB16 24VDC digital input module and 1771-OBD digital output module — is a widely adopted best practice that reduces mean time to repair (MTTR) from hours to minutes. Pairing this with a documented spare parts register and annual thermographic inspection of control cabinets forms the foundation of a sustainable preventive maintenance program for legacy PLC-5 infrastructure.

Strategic Replacement Solutions

The Allen-Bradley 1771-IG occupies a critical position in the spare parts lifecycle of any facility still operating PLC-5 control systems. While Rockwell Automation has transitioned its primary development focus to the ControlLogix and CompactLogix platforms, a substantial installed base of PLC-5 systems continues to operate in industries where the cost and complexity of a full control system migration outweighs the risk of maintaining the existing architecture with genuine spare parts.

Sourcing an original 1771-IG — rather than an uncertified aftermarket substitute — eliminates the compatibility risk associated with non-genuine modules, which may exhibit timing differences, input threshold variations, or backplane communication anomalies that are difficult to diagnose in the field. An original module maintains the exact electrical characteristics that the PLC-5 processor’s I/O scan was configured to expect, ensuring seamless reintegration without requiring processor program modifications or I/O configuration changes.

For maintenance planners evaluating a longer-term strategy, the 1771-IG can serve as a bridge component: keeping the existing PLC-5 system operational and stable while a phased migration to a ControlLogix platform is planned and budgeted. This approach — sometimes called “run-to-plan” maintenance — allows production continuity without emergency capital expenditure, while the migration project proceeds on a controlled timeline. During this period, maintaining a verified stock of 1771-series I/O modules, including the 1771-IG, is a cost-effective risk mitigation strategy that protects production uptime.

Every 1771-IG unit shipped from TOPNLMS undergoes functional testing prior to dispatch, including input point verification across all 16 channels, backplane connector inspection, and visual examination for component-level damage. Units are packaged in anti-static protective packaging suitable for long-term storage in a spare parts room environment.
