Allen-Bradley 1771-IFE/C Replacement for PLC-5 Series

Product Overview

Allen-Bradley 1771-IFE/C Replacement for PLC-5 Series: Seamless Migration & Compatibility Upgrade

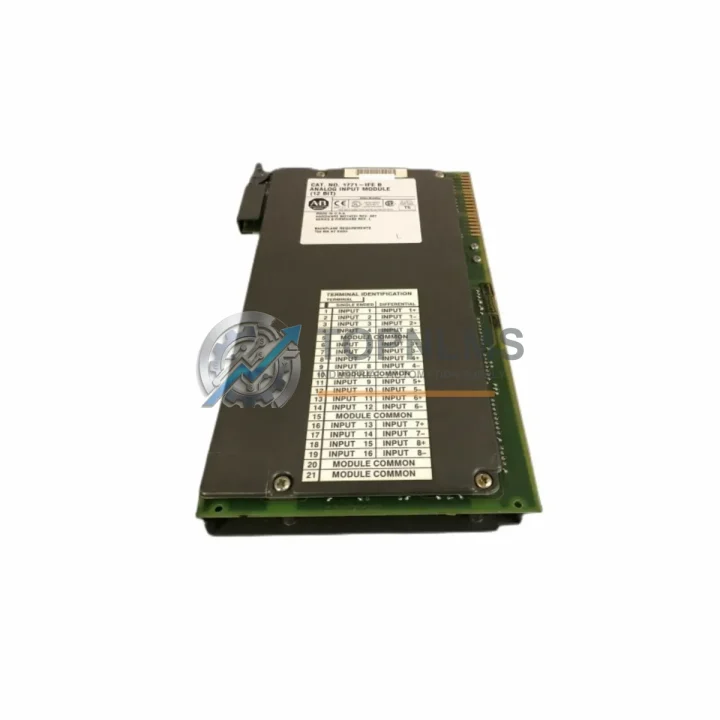

The Allen-Bradley 1771-IFE/C is an 8-channel analog input module designed for the PLC-5 chassis platform — one of Rockwell Automation’s most widely deployed legacy control architectures in process manufacturing, oil & gas, water treatment, and discrete automation. As the PLC-5 family has reached end-of-life status, facilities worldwide are actively planning migration paths to maintain production continuity, reduce unplanned downtime, and secure long-term spare parts availability. TOPNLMS supplies tested, verified 1771-IFE/C units to support both immediate emergency replacements and structured modernization programs.

Whether your plant is executing a phased migration from PLC-5 to ControlLogix, or simply needs a drop-in replacement to keep an existing system running while a broader upgrade is planned, the 1771-IFE/C fits directly into the 1771 I/O chassis without rewiring or rack modification. The module accepts 4–20 mA and 1–5 V analog signals across all 8 channels, making it directly compatible with existing field instrumentation — pressure transmitters, flow meters, temperature sensors, and level transducers — without signal conditioning changes.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PLC-5 analog input migration rarely involves a single module. In practice, engineers replacing the 1771-IFE/C are simultaneously addressing adjacent components in the same control cabinet or I/O rack. The 1771 chassis itself — typically a 1771-A1B, 1771-A2B, or 1771-A4B — must be confirmed serviceable, as chassis backplane damage is a common failure mode in aging systems. The PLC-5 processor (such as the 1785-L40B or 1785-L80B) must have compatible firmware to recognize the /C revision of the IFE module; in some cases, a processor firmware update or processor swap is part of the same maintenance window.

On the power supply side, the 1771-P4S or 1771-P7 chassis power supply should be inspected and load-tested before reinstalling a new analog module, since power supply degradation is a leading cause of intermittent analog signal errors. If the migration scope extends to communication infrastructure, the 1785-KA5 or 1785-KA5/B Data Highway Plus communication adapter may need replacement alongside the I/O module to restore reliable DH+ network performance.

For facilities transitioning to ControlLogix as part of a broader modernization, the 1756-IF8 ControlLogix analog input module is the functional successor for new rack builds, while the 1771-SDN DeviceNet Scanner or 1771-ASB Remote I/O Adapter may be retained during a phased cutover to bridge legacy field devices into the new architecture. Terminal block assemblies and wiring harnesses connected to the 1771-IFE/C’s field wiring connector should be inspected and replaced if insulation degradation is observed — a common finding in systems that have been in service for 15–25 years.

If the plant uses a SCADA or DCS overlay communicating via Remote I/O (RIO) to the PLC-5 rack, the 1771-ASB adapter module in the remote chassis must also be confirmed compatible with the updated I/O configuration after the analog module swap. Signal isolators or loop-powered barriers installed between field transmitters and the 1771-IFE/C inputs should be verified for correct output range to avoid calibration drift after module replacement.

Retrofit Guidance FAQ

Q: Can I replace a 1771-IFE/B with a 1771-IFE/C without changing the PLC-5 program?
A: In most cases, yes. The /C revision maintains the same I/O data table mapping and signal ranges as the /B revision. However, you should verify the processor firmware version supports the /C module catalog number. Consult the 1771-IFE installation manual (publication 1771-6.5.109) for revision compatibility notes.

Q: Do I need to re-calibrate field instruments after swapping the module?
A: No field instrument recalibration is required. The 1771-IFE/C uses the same 4–20 mA / 1–5 V input ranges. Module-level calibration (zero and span) should be verified using the PLC-5 block transfer write (BTW) instruction after installation.

Q: Is the 1771 chassis backplane wiring affected?
A: No. The module slides into the existing 1771 slot. Field wiring connects to the same 1771-WB wiring arm or equivalent terminal block. No cabinet rewiring is required for a like-for-like replacement.

Q: What communication protocols does this module support?
A: The 1771-IFE/C communicates via the 1771 backplane and is fully compatible with PLC-5 systems using Data Highway Plus (DH+) and Remote I/O (RIO) network topologies. It does not natively support EtherNet/IP — for EtherNet/IP-based systems, a ControlLogix migration with the 1756-IF8 is recommended.

Q: Can this module be used in a ControlLogix chassis?
A: No. The 1771-IFE/C is a 1771-series module and is not physically or electrically compatible with the 1756 ControlLogix chassis. For ControlLogix, use the 1756-IF8 or 1756-IF16 analog input modules.

Q: What is the physical installation space requirement?
A: The module occupies a single slot in any 1771 I/O chassis (A1B, A2B, A3B, A4B). No additional panel space or DIN rail mounting is required.

Warranty Assurance

Every 1771-IFE/C unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, channel signal integrity check, and backplane communication validation. Units that do not pass inspection are not shipped.

In the event of a confirmed module defect within the warranty period, TOPNLMS provides direct replacement support with priority processing. Our technical team is available to assist with installation verification, compatibility questions, and post-installation commissioning guidance. We understand that analog input module failures in live production environments are time-critical — our standard lead time for stocked units is 1–3 business days for international express shipment from Xiamen, China.

For procurement teams managing MRO inventory or executing planned shutdowns, we offer pre-shipment inspection reports and can coordinate with freight forwarders for DDP (Delivered Duty Paid) terms to simplify customs clearance. Volume pricing is available for multi-unit orders supporting plant-wide PLC-5 spare parts programs.

Contact our team to confirm stock availability, request a quotation, or discuss your specific migration requirements before placing an order.
