Allen-Bradley 1771-IBDK Ruggedized Input Module for Harsh Environments

Product Overview

Allen-Bradley 1771-IBDK Ruggedized Input Module for Harsh Environments

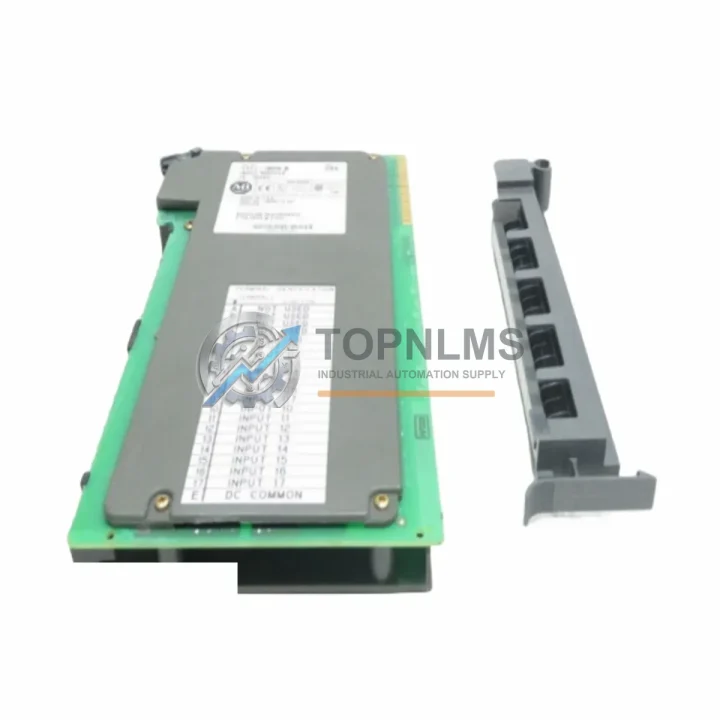

The Allen-Bradley 1771-IBDK is a 16-point, 24V DC discrete input module engineered for the Rockwell Automation PLC-5 platform and the 1771 I/O chassis system. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — the 1771-IBDK delivers the signal integrity and electrical isolation that mission-critical control systems require.

In continuous production environments where unplanned downtime translates directly into lost revenue and safety risk, the 1771-IBDK provides the deterministic input scanning and noise immunity that plant engineers depend on. Its optically isolated input circuitry suppresses transient spikes and electromagnetic interference (EMI) generated by variable frequency drives (VFDs), large motor starters, and high-current switching loads operating in the same control cabinet. This makes it an ideal companion to Allen-Bradley 1336 PLUS II and PowerFlex 700 series drives commonly deployed alongside PLC-5 systems in steel mills, petrochemical plants, and water treatment facilities.

The module slots directly into the 1771 I/O chassis — including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B chassis variants — and communicates with the PLC-5 processor over the 1771 backplane without requiring additional configuration hardware. Field wiring connects through the 1771-WB wiring arm, maintaining a clean, serviceable installation even in confined control cabinet environments. The 1771-IBDK is fully compatible with Allen-Bradley 1771-P4S, 1771-P6S, and 1771-P7 power supplies, ensuring stable 24V DC logic power delivery across the I/O rack.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1771-IBDK does not operate in isolation — it is one component within a tightly integrated control architecture. In a typical PLC-5 control cabinet serving a continuous casting line or a chemical dosing system, the 1771-IBDK works in concert with the Allen-Bradley 1771-OBD 16-point 24V DC output module to form a complete discrete I/O pair, handling field device status inputs while the output module drives solenoids, contactors, and indicator lamps. Analog process variables — pressure, temperature, and flow — are handled by the 1771-IFE analog input module, which shares the same 1771 chassis and communicates over the same backplane.

For applications requiring functional safety compliance, the 1771-IBDK is frequently deployed alongside Allen-Bradley GuardPLC safety controllers and 1791DS CompactBlock Guard I/O safety modules, which handle SIL-rated emergency stop and safety gate interlock circuits while the 1771-IBDK manages standard process status inputs. Communication between the PLC-5 system and supervisory SCADA or DCS layers is typically handled through the 1771-KGM Data Highway Plus communication module or the 1784-PCMK/B interface card, both of which integrate seamlessly into the 1771 chassis architecture.

Power integrity across the control cabinet is maintained by the Allen-Bradley 1606-XLP series industrial power supplies, which provide regulated 24V DC to field devices and I/O modules alike. Surge protection at the terminal level is achieved through Phoenix Contact TRABTECH surge protection terminal blocks, which are commonly specified alongside 1771 I/O installations in lightning-prone or high-surge industrial environments. For relay output isolation and load switching, Allen-Bradley 700-HLT series relay modules are frequently paired with the 1771-IBDK in the same panel, providing dry-contact outputs for alarm annunciation and motor control interlock circuits.

Application in Critical Infrastructure

The Allen-Bradley 1771-IBDK has a proven service record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream operations, it monitors wellhead valve position feedback, separator level switches, and emergency shutdown (ESD) system status inputs — environments where ambient temperatures can exceed 50°C and where explosive atmosphere classifications demand robust electrical isolation between field and logic circuits. The module’s optical isolation architecture ensures that field-side ground faults do not propagate into the PLC-5 processor backplane, protecting the integrity of the entire control system.

In underground and open-cut mining operations, the 1771-IBDK is deployed on conveyor control panels, crusher monitoring systems, and ventilation fan status circuits. These environments subject control hardware to continuous mechanical vibration, coal dust ingress, and wide temperature swings between surface and underground installations. The module’s conformal-coated PCB construction and sealed connector interface provide the environmental resilience required for multi-year service intervals without module replacement.

At power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 1771-IBDK monitors turbine auxiliary system status, cooling water flow switches, and generator protection relay trip signals. The high EMI environment generated by large generator step-up transformers and bus protection systems makes the module’s noise immunity characteristics particularly valuable. Similarly, in municipal water and wastewater treatment plants, the 1771-IBDK monitors pump run/fail status, valve open/close confirmation, and high-level float switch inputs across multiple pump stations, often operating continuously for years without intervention.

In metals and primary processing — including aluminum smelters, steel rolling mills, and copper refineries — the 1771-IBDK handles discrete status inputs from high-temperature process equipment operating at ambient temperatures near the module’s rated ceiling. Its ability to maintain signal integrity in the presence of large rectifier banks, arc furnace interference, and high-current bus systems makes it a preferred choice for process control engineers specifying replacement I/O for aging PLC-5 installations.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Allen-Bradley 1771-IBDK?
All 1771-IBDK modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Rockwell Automation’s published specifications. Warranty claims are supported by our technical team at [email protected], and replacement or repair is coordinated promptly to minimize your downtime exposure.

Q2: How is each module tested before shipment?
Every 1771-IBDK unit undergoes a pre-shipment functional verification process that includes power-on testing, input channel continuity checks, and optical isolation integrity verification. Modules supplied as Surplus New are inspected for physical condition and confirmed against Rockwell Automation’s catalog specifications. Refurbished units are additionally subjected to burn-in testing to screen for early-life failures before dispatch.

Q3: Is the 1771-IBDK compatible with all PLC-5 processor variants and 1771 chassis configurations?
Yes. The 1771-IBDK is compatible with all PLC-5 processor families — including PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, and PLC-5/80 — and installs in any standard 1771 I/O chassis (A1B through A4B). It requires the 1771-WB wiring arm for field termination. No firmware configuration is required beyond standard I/O rack addressing within RSLogix 5 or the legacy 6200 programming software.

Q4: Can TOPNLMS support long-term supply of the 1771-IBDK for ongoing maintenance programs?
Yes. TOPNLMS maintains stock of the 1771-IBDK and related 1771 I/O series modules to support planned maintenance, emergency replacement, and capital spares programs. We understand that PLC-5 systems in critical infrastructure often have extended service lives well beyond Rockwell Automation’s standard product lifecycle, and we are positioned to provide reliable supply continuity for these legacy platforms. Contact us at [email protected] or +86 18359293191 to discuss volume pricing and reserved stock arrangements.
