Allen-Bradley 1771-IAN Replacement for PLC-5 1771 I/O

Product Overview

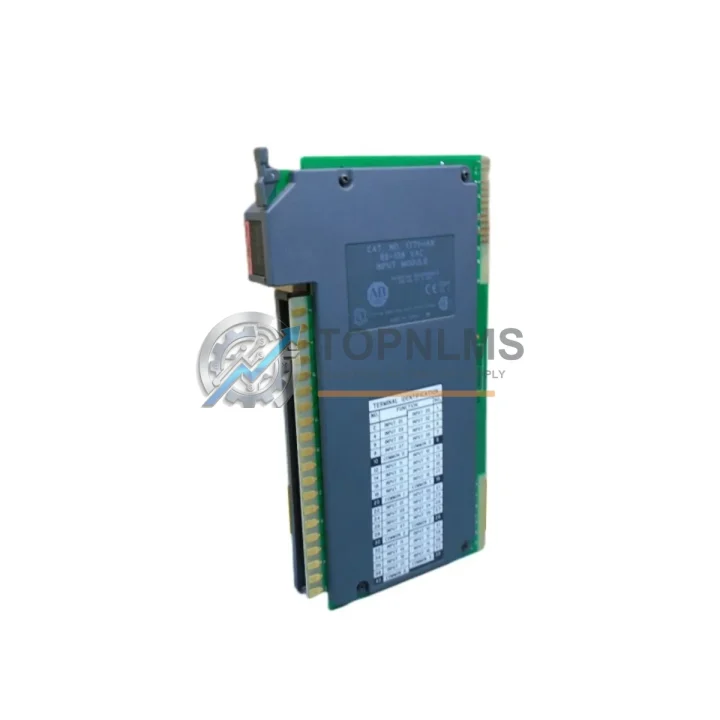

Allen-Bradley 1771-IAN Replacement for PLC-5 1771 I/O: Seamless Migration & Compatibility Upgrade

The Allen-Bradley 1771-IAN is a 16-point, 100–120V AC digital input module designed for the PLC-5 family and the 1771 I/O chassis platform. As Rockwell Automation has progressively discontinued the PLC-5 product line, facilities running legacy 1771-series racks face increasing pressure to source verified replacement modules that maintain electrical, mechanical, and software compatibility with their existing control architecture. TOPNLMS supplies tested, ready-to-ship 1771-IAN units with a 12-month warranty, enabling maintenance teams to restore production with minimal downtime and without committing to a full system migration.

Whether your plant is executing a phased migration from PLC-5 to ControlLogix, or simply needs a like-for-like spare to keep an aging line running, the 1771-IAN fits directly into any 1771 I/O chassis — including the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B rack configurations — without modification to the backplane wiring or chassis keying. The module occupies a single slot and draws power from the 1771 I/O chassis power supply, so no additional power infrastructure is required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A 1771-IAN replacement is rarely a standalone action. In most PLC-5 maintenance or migration scenarios, the input module is one component within a broader 1771 I/O subsystem that may also require attention. When the 1771-IAN is being replaced as part of a planned upgrade, engineers commonly address adjacent components in the same chassis pass to reduce future downtime risk.

The 1771-OAN (16-point 100–120V AC digital output module) is the natural output-side counterpart to the 1771-IAN and is frequently replaced in the same maintenance window, since both modules share the same voltage class and wiring arm family. Similarly, the 1771-IB (16-point 24V DC input module) is often evaluated when a facility is simultaneously migrating some field devices from AC to DC sensing, allowing a mixed-voltage I/O strategy within the same 1771 chassis.

For sites running Remote I/O (RIO) drops, the 1771-ASB (Remote I/O Adapter Module) is the backplane interface that connects the 1771 chassis to the PLC-5 processor over the RIO cable. If the ASB is aging or showing communication faults alongside the input module failure, replacing both in the same service visit eliminates a common source of intermittent I/O dropouts. The 1771-ACN15 (ControlNet Adapter) is relevant for sites that have already partially migrated their network layer to ControlNet while retaining 1771 I/O hardware.

Power infrastructure is another critical consideration. The 1771-P4S and 1771-P7 chassis power supplies are the most common power sources for 1771 I/O racks, and a failing power supply can cause symptoms that mimic I/O module faults. Verifying power supply health before or alongside a module replacement prevents misdiagnosis and repeat service calls. For installations where the control cabinet also houses an HMI, the PanelView 550 or PanelView 600 terminals connected to the PLC-5 via DH+ are often flagged for upgrade during the same project scope, since Rockwell has discontinued firmware support for these panels.

Finally, for engineers performing online diagnostics or uploading/downloading programs during the replacement process, the 1784-U2DHP USB-to-DH+ programming cable remains the standard interface between a modern laptop and the PLC-5 processor. Having this cable on-site before the service window begins eliminates a common delay in field commissioning.

Retrofit Guidance FAQ

Q: Can I reuse the existing field wiring when replacing the 1771-IAN?
Yes. The 1771-IAN uses a removable wiring arm (typically the 1771-WN). The wiring arm with all field terminations can be unplugged from the old module and plugged directly into the replacement unit. No rewiring is required, which significantly reduces installation time and eliminates the risk of miswiring during the swap.

Q: Do I need to modify my RSLogix 5 program after installing the replacement module?
No. The 1771-IAN replacement uses the same I/O addressing structure (I:x.xx) as the original module. As long as the replacement is installed in the same chassis slot, the PLC-5 processor will recognize it without any program changes. A processor memory clear or re-download is not required.

Q: Is the 1771-IAN compatible with ControlLogix or CompactLogix systems?
Not directly. The 1771-IAN is a parallel backplane module designed for the 1771 I/O chassis and PLC-5 processors. To use 1771 I/O with a ControlLogix system, a 1756-DHRIO or 1771-ACN15 adapter is required to bridge the architectures. For a full migration to ControlLogix, the 1771 I/O would typically be replaced with 1756 ControlLogix I/O modules.

Q: What is the physical installation space requirement?
The 1771-IAN occupies a single slot in any 1771 I/O chassis. No additional mounting hardware, DIN rail, or cabinet modification is required. The module slides into the chassis slot and is secured by the standard 1771 module locking mechanism.

Q: How do I verify the module is functioning correctly after installation?
After installation, power up the chassis and observe the module’s LED status indicators. Use RSLogix 5 or RSLogix 500 (via the 1784-U2DHP cable) to go online with the PLC-5 processor and verify that input bit states in the I: file reflect the actual field device states. Force testing individual input points is recommended before returning the system to automatic operation.

Q: What communication protocols does the 1771-IAN support?
The 1771-IAN itself communicates via the 1771 parallel backplane. The PLC-5 processor handles higher-level network protocols such as Data Highway Plus (DH+), Remote I/O (RIO), and ControlNet (on compatible processor variants). No protocol configuration is required on the input module itself.

Warranty Assurance

Every 1771-IAN unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional bench test to verify input channel operation, backplane interface integrity, and LED indicator function. A test report is available on request for quality-critical procurement processes.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. We support procurement teams with documentation including packing lists, commercial invoices, and certificates of conformity for customs and internal audit requirements.

Stock is maintained in Xiamen, China, with express shipping options available to most global destinations. Standard lead time for in-stock units is 3–5 business days to major industrial hubs in Southeast Asia, the Middle East, and Europe. Expedited shipping is available for urgent breakdown situations.

For volume orders, blanket purchase agreements, or consignment stock arrangements, contact our sales team directly to discuss pricing and logistics terms.
