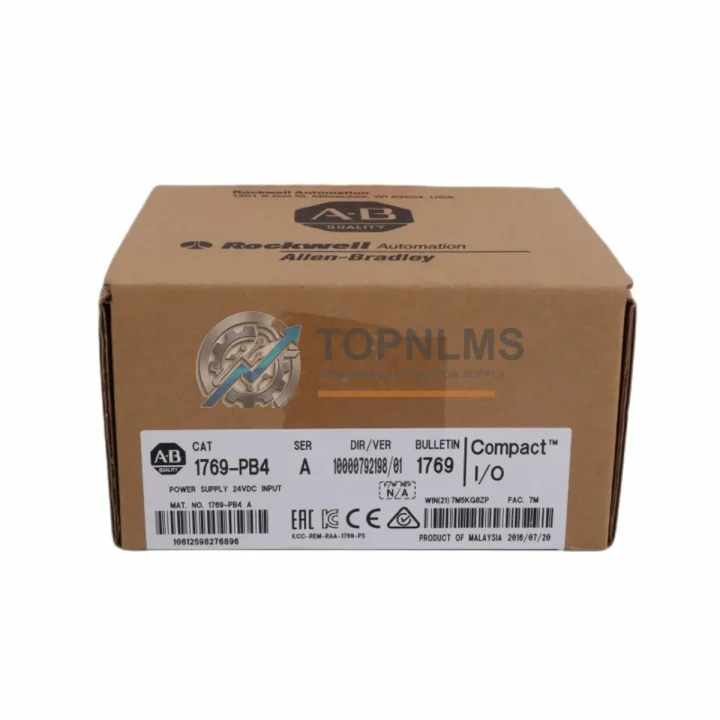

Allen-Bradley 1769-PB4 Ruggedized 24VDC Bus Power Supply Module

Product Overview

Allen-Bradley 1769-PB4 Ruggedized 24VDC Bus Power Supply Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-PB4 is a 24VDC bus power supply module engineered for the CompactLogix 1769 platform, delivering stable, regulated power to I/O expansion banks in the most demanding industrial environments. Designed to Rockwell Automation’s rigorous standards for electromagnetic compatibility, thermal endurance, and mechanical robustness, the 1769-PB4 sustains continuous operation across high-temperature foundries, dust-laden mining galleries, moisture-saturated water treatment facilities, and vibration-intensive heavy manufacturing lines. Where power quality directly determines system uptime, this module provides the electrical backbone that keeps your entire control architecture running without interruption.

In modern industrial automation, a power supply module is far more than a passive component — it is the foundation upon which every downstream device depends. The 1769-PB4 supplies regulated 24VDC bus power to CompactLogix 1769-series I/O modules, ensuring that digital input modules, analog output modules, and specialty function modules all receive clean, stable voltage regardless of load fluctuations or upstream grid disturbances. Its compact DIN-rail form factor integrates seamlessly into the 1769 backplane architecture, eliminating the need for external power conditioning in most standard control cabinet configurations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-PB4 is most effective when deployed as part of a fully integrated CompactLogix control architecture. In a typical control cabinet, the module works in concert with the 1769-L30ER or 1769-L33ER CompactLogix processor, which handles the primary PLC logic execution, while the 1769-PB4 independently powers the right-side I/O expansion bank — decoupling the I/O bus load from the processor’s onboard power budget. This separation is critical in high-channel-count applications where analog I/O modules such as the 1769-IF8 (8-channel analog input) or 1769-OF4 (4-channel analog output) draw significant bus current during simultaneous sampling cycles.

For digital I/O-intensive applications, the 1769-PB4 reliably powers banks of 1769-IQ16 (16-point 24VDC digital input) and 1769-OB16 (16-point 24VDC digital output) modules without voltage sag, even under full-load switching conditions. In safety-critical installations, the module is commonly paired with a 1791DS-IB12 GuardLogix safety I/O module or a 1769-SM2 serial communication module, ensuring that both safety and communication functions receive uninterrupted bus power. Where Ethernet/IP connectivity is required, the 1769-L30ERMS or associated 1783-ETAP Ethernet tap modules depend on stable backplane power to maintain deterministic network communication with SCADA and DCS systems.

In control cabinets where power redundancy is a design requirement — common in continuous process industries — the 1769-PB4 is often supplemented by an Allen-Bradley 1606-XLP power supply providing the 24VDC input feed, with surge protection devices and line filters upstream to guard against grid transients. This layered power architecture ensures that even in environments with frequent voltage spikes, brownouts, or harmonic distortion from variable frequency drives (VFDs) and motor starters, the 1769 I/O bus remains stable and the PLC scan cycle is never interrupted.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1769-PB4 is deployed in wellhead control panels and pipeline SCADA remote terminal units (RTUs), where it powers 1769-series I/O modules monitoring pressure transmitters, flow meters, and emergency shutdown (ESD) valve actuators. The module’s wide input voltage tolerance (18–32VDC) accommodates the voltage fluctuations common in field-powered panels supplied by solar arrays or battery-backed UPS systems in remote locations.

In underground mining environments, where vibration from blasting and heavy equipment is constant and ambient dust concentrations can be extreme, the 1769-PB4’s robust backplane connector and conformal-coated PCB construction maintain reliable electrical contact and prevent corrosion-induced failures. Mining automation systems using CompactLogix PLCs for conveyor control, ventilation management, and ore processing rely on the 1769-PB4 to sustain I/O module operation through multi-week continuous production runs without scheduled maintenance windows.

In power generation and electrical substation automation, the module supports 1769-series I/O banks that interface with protection relays, circuit breaker status inputs, and transformer monitoring systems. The EMC compliance of the 1769-PB4 is particularly valuable in these environments, where high-voltage switching events generate intense electromagnetic interference that can corrupt data acquisition in lesser-grade modules.

Water and wastewater treatment plants operating 24/7 depend on CompactLogix systems for pump sequencing, chemical dosing control, and SCADA integration. The 1769-PB4 ensures that I/O modules monitoring level sensors, flow transmitters, and actuator feedback signals remain powered through the high-humidity, chemically aggressive atmospheres typical of treatment facilities. In metallurgical and smelting operations, where ambient temperatures near furnaces can approach the upper limits of industrial equipment ratings, the module’s 60°C operating ceiling and thermal design provide the margin needed for reliable continuous service.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1769-PB4?
Every 1769-PB4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. If the module fails under normal operating conditions within this period, we provide a replacement or full refund. Our warranty process is straightforward — contact [email protected] with your order reference and a brief fault description, and our technical team will respond within one business day.

Q2: How is each unit tested before shipment?
All 1769-PB4 modules undergo pre-shipment functional verification, including input voltage range testing, output bus current load testing, and visual inspection for connector integrity and PCB condition. Units sourced from authorized distribution channels are cross-referenced against Rockwell Automation’s genuine part identification markings. We do not ship untested or cosmetically damaged units.

Q3: Is the 1769-PB4 compatible with all CompactLogix 1769 I/O modules?
Yes. The 1769-PB4 is designed to power any right-side 1769-series I/O expansion bank, including digital input, digital output, analog input, analog output, and specialty modules. It is not compatible with left-side (processor-side) bus connections or with MicroLogix 1100/1400 I/O banks. If you are unsure about compatibility with a specific 1769 module variant, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1769-PB4?
Yes. TOPNLMS maintains standing inventory of high-demand CompactLogix components including the 1769-PB4, and we support blanket purchase orders and scheduled delivery agreements for MRO and project procurement teams. For OEMs and system integrators requiring consistent supply across multiple project phases, we offer priority allocation and lead-time commitments. Contact [email protected] or call +86 18359293191 to discuss your procurement requirements.
