Allen-Bradley 1769-OW8I Replacement for CompactLogix 1769

Product Overview

Allen-Bradley 1769-OW8I Replacement for CompactLogix 1769: Smooth Migration & Legacy System Upgrade

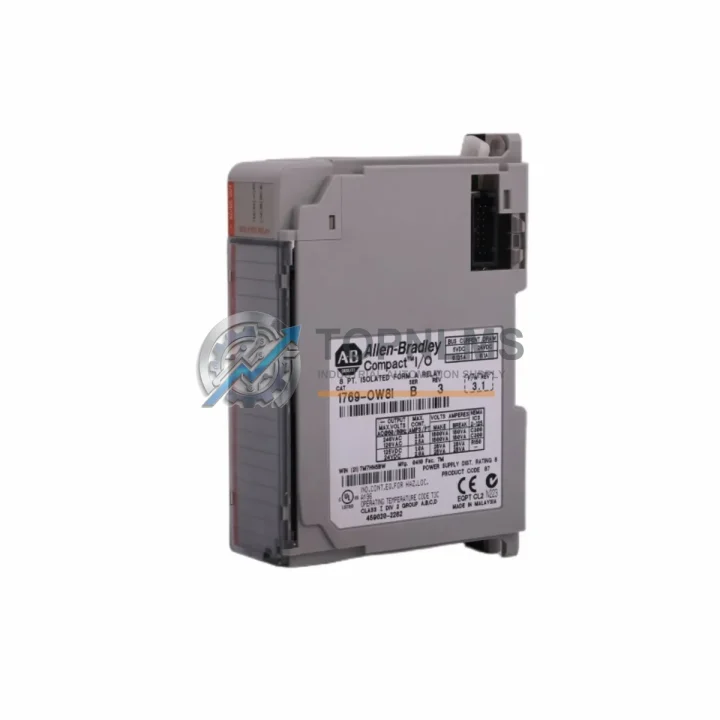

The Allen-Bradley 1769-OW8I is an 8-point isolated relay output module designed for the CompactLogix 1769 Series platform. As legacy control systems age and original modules reach end-of-life or become increasingly difficult to source, facilities running older CompactLogix L32E, L35E, or L43 controllers face mounting pressure to maintain uptime without committing to a full system overhaul. The 1769-OW8I provides a direct, drop-in replacement path that preserves existing wiring infrastructure, retains compatibility with current Studio 5000 / RSLogix 5000 programming environments, and fits within the same 1769 backplane slot footprint — making it the preferred choice for maintenance engineers executing a targeted module swap rather than a full migration.

Each relay output point on the 1769-OW8I is individually isolated, supporting mixed-voltage field devices across a single module without cross-circuit interference. Output contacts are rated for both AC and DC loads, which is critical in retrofit scenarios where legacy field wiring may include a mix of 24 VDC solenoids, 120 VAC motor starters, and 240 VAC control relays — all common in older panel designs. The module draws power directly from the 1769 bus, eliminating the need for external relay interposing hardware in most standard replacement scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1769-OW8I retrofit rarely involves a single module in isolation. In practice, maintenance teams executing a CompactLogix upgrade or emergency replacement will often address adjacent components in the same control cabinet during the same maintenance window to avoid repeat downtime events.

On the input side, the 1769-IQ16 16-point 24 VDC sink/source digital input module is the most common companion module replaced alongside the 1769-OW8I, particularly in mixed I/O racks where both input and output modules have reached the same service age. For analog signal conditioning, the 1769-IF4 4-channel analog input module and 1769-OF2 2-channel analog output module are frequently part of the same rack assembly and should be inspected during any 1769-OW8I swap.

Power integrity is a critical consideration in any relay output module replacement. The 1769-PA2 and 1769-PB2 power supply modules — AC and DC input variants respectively — should be verified for adequate current budget when the 1769-OW8I is installed, especially in fully populated racks. In aging systems, the power supply is often the silent failure point that accelerates output module degradation.

For systems where the CompactLogix controller itself is approaching obsolescence, the 1769-L33ER or 1769-L36ERM controller modules offer a forward-compatible upgrade path that retains the existing 1769 I/O rack, preserving the 1769-OW8I and all associated field wiring. Communication continuity is maintained through the integrated EtherNet/IP port, and existing Studio 5000 programs can be migrated with minimal modification using Rockwell’s migration tools.

In installations where the 1769-OW8I interfaces with third-party SCADA systems or distributed I/O networks, the 1769-SDN DeviceNet scanner module or 1769-ASCII serial communication module may also be present in the same rack. These should be documented and verified for firmware compatibility before the replacement module is commissioned. For panel-level signal isolation between the 1769 rack and field devices operating at different voltage levels, DIN-rail mounted signal isolators and terminal relay modules are commonly used alongside the 1769-OW8I to protect the module’s relay contacts from inductive load spikes.

Finally, for programming and commissioning support during the replacement, a 1784-U2DHP USB-to-DH+ interface cable or a standard Ethernet crossover connection to the controller’s EtherNet/IP port is required to upload, verify, and force-test output logic before returning the system to production.

Retrofit Guidance FAQ

Q: Do I need to modify existing field wiring when replacing with the 1769-OW8I?
A: No. The 1769-OW8I uses the same removable terminal block layout as other 1769 relay output modules. In standard installations, existing field wiring can be transferred directly to the replacement module without modification. Verify terminal torque specifications per the installation manual before re-energizing.

Q: Will my existing RSLogix 5000 / Studio 5000 program require changes?
A: No program changes are required for a like-for-like slot replacement. The 1769-OW8I presents the same I/O data structure to the controller. If replacing a non-isolated variant (e.g., 1769-OW8) with the isolated 1769-OW8I, verify that the module profile in the I/O tree matches — a profile update in Studio 5000 may be required, but no ladder logic changes are needed.

Q: Is the 1769-OW8I compatible with EtherNet/IP-based SCADA and DCS integration?
A: Yes. The module communicates via the 1769 backplane to the CompactLogix controller, which exposes all I/O data over EtherNet/IP. Any SCADA, DCS, or HMI system currently polling the controller via EtherNet/IP will continue to receive output status data without reconfiguration.

Q: What is the physical installation space requirement?
A: The 1769-OW8I occupies a single 1769 expansion slot. It is compatible with all standard 1769 bus expansion cables and end caps. No additional DIN rail space or panel modification is required for a direct slot replacement.

Q: How do I verify the replacement module before returning the system to production?
A: Use Studio 5000 online mode to force each output point individually and verify field device response. Confirm relay contact closure with a multimeter at the terminal block before energizing field loads. Document the test results per your site’s MOC (Management of Change) procedure.

Q: Can the 1769-OW8I be used in a mixed-voltage field wiring scenario?
A: Yes. Because each output point is individually isolated, different field circuits can operate at different voltages (e.g., 24 VDC and 120 VAC) on the same module without a shared common return. This is a key advantage over non-isolated relay output modules in legacy panel retrofits.

Warranty Assurance

Every 1769-OW8I unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including backplane communication check, relay contact continuity test, and visual inspection for physical damage. Units that fail to perform as specified within the warranty period are eligible for replacement or full refund — no restocking fees, no dispute process.

Stock is maintained in Xiamen, China, with standard lead times of 1–3 business days for in-stock items. Express international shipping via DHL, FedEx, and UPS is available for urgent replacement requirements. A commercial invoice and packing list are provided with every shipment to support customs clearance. For bulk procurement, OEM integrators, and MRO stocking programs, volume pricing and reserved inventory arrangements are available upon request.

For technical pre-sales questions, compatibility verification, or post-sale support, contact the TOPNLMS technical team directly. Response time is within 24 hours on business days.
