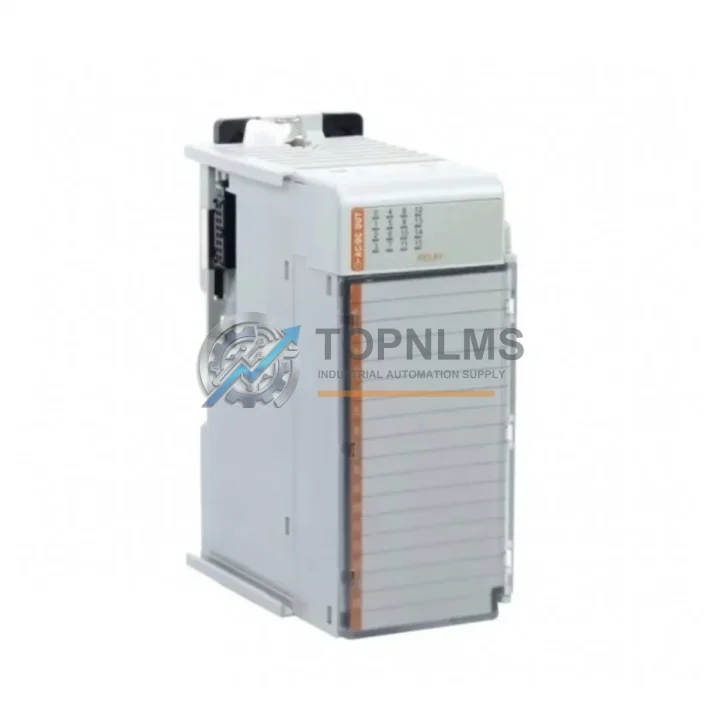

Allen-Bradley 1769-OW16 Ruggedized Relay Output Module

Product Overview

Allen-Bradley 1769-OW16 Ruggedized Relay Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-OW16 is a 16-point relay output module engineered for the CompactLogix 1769 Compact I/O platform — one of the most widely deployed programmable logic controller (PLC) architectures in global industrial automation. Designed to deliver reliable discrete output switching in environments where electrical noise, mechanical vibration, thermal stress, and airborne contaminants are constant operational realities, the 1769-OW16 stands as a mission-critical component for engineers and procurement teams who cannot afford unplanned downtime.

At TOPNLMS, every 1769-OW16 unit is sourced through verified supply channels, individually inspected prior to dispatch, and backed by a 12-month quality warranty — giving maintenance engineers and MRO buyers the confidence to specify this module for both new installations and emergency spare-parts replacement.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-OW16 does not operate in isolation — it is the output backbone of a tightly integrated control architecture. In a typical CompactLogix panel, it works in concert with the 1769-IQ16 16-point DC input module to form a complete discrete I/O layer, while the 1769-IF4 analog input module handles process variable feedback from field transmitters. The 1769-L30ER CompactLogix controller coordinates all module communication over the 1769 backplane, ensuring deterministic scan-cycle performance even under heavy I/O load.

For applications requiring functional safety, the 1769-OW16 is commonly paired with Allen-Bradley GuardLogix safety controllers and 1791DS safety I/O modules, where the relay outputs serve as final control elements for safety-rated shutdown circuits. In power distribution panels, the module interfaces with Allen-Bradley 1492 series interface modules and terminal blocks, simplifying field wiring and reducing installation errors in high-density cabinets.

Communication integrity across the control network is maintained by the 1769-L19ER-BB1B EtherNet/IP adapter, enabling seamless integration with SCADA systems and remote HMI panels. Where legacy serial communication is required, the 1769-ASCII serial communication module bridges older field devices to the modern CompactLogix backbone. In variable-speed drive applications, the relay outputs of the 1769-OW16 are frequently used to issue run/stop commands to Allen-Bradley PowerFlex 525 and PowerFlex 755 variable frequency drives (VFDs), providing hardwired interlock capability independent of network communication.

For power supply redundancy — a critical requirement in continuous-process industries — the 1769-OW16 panel is typically powered by Allen-Bradley 1769-PB4 or 1769-PA4 power supply modules, which provide regulated 24 V DC bus power with built-in short-circuit protection. This layered architecture ensures that even in the event of a partial power fault, the relay output module maintains its last commanded state, protecting downstream actuators and preventing unsafe process transitions.

Application in Critical Infrastructure

The Allen-Bradley 1769-OW16 has earned its place in some of the world’s most demanding industrial environments precisely because relay output technology offers galvanic isolation between the control circuit and the load — a property that is non-negotiable in safety-critical applications.

In oil and gas upstream operations, the module controls wellhead valve actuators and emergency shutdown (ESD) solenoids in classified hazardous areas, where the relay’s inherent isolation prevents ground loops and eliminates the risk of ignition from control-circuit faults. Offshore platforms and onshore gas compression stations rely on CompactLogix systems equipped with 1769-OW16 modules to manage compressor start/stop sequences, flare control, and high-pressure relief valve interlocks.

In mining and mineral processing, where conveyor systems, crushers, and ball mills generate extreme vibration and airborne silica dust, the 1769-OW16’s IEC 68-2-6 vibration compliance and sealed relay contacts ensure consistent switching performance over multi-year service intervals without contact degradation. The module’s wide operating temperature range accommodates both underground mine environments and open-pit surface operations in extreme climates.

In electric power generation and substation automation, the relay outputs drive protection relay trip coils, circuit breaker control circuits, and alarm annunciator panels. The module’s 265 V AC switching capability allows direct interface with utility-grade control circuits without intermediate signal conditioning. Water and wastewater treatment plants deploy the 1769-OW16 to control pump motor starters, chemical dosing systems, and UV disinfection equipment — applications where continuous 24/7 operation and fail-safe behavior are regulatory requirements.

In steel mills and aluminum smelters, the module manages furnace burner management systems, ladle transfer car controls, and rolling mill interlock circuits, where ambient temperatures regularly exceed 50 °C and electromagnetic interference from large motor drives and arc furnaces would compromise less robust output technologies. The relay output’s inherent noise immunity makes it the preferred choice over solid-state alternatives in these high-EMI environments.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1769-OW16?
Every Allen-Bradley 1769-OW16 supplied by TOPNLMS carries a 12-month warranty from the date of shipment. If the module exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we will arrange replacement or repair at no additional cost. Our warranty process is straightforward: contact us with the order reference and a brief fault description, and our technical team will initiate the resolution within one business day.

Q2: How is each unit tested and verified before shipment?
All 1769-OW16 modules undergo a pre-shipment inspection protocol that includes visual examination for physical damage, label and firmware revision verification, and functional continuity testing of relay contacts. Units sourced from our primary supply channels are cross-referenced against Allen-Bradley’s published revision history to confirm authenticity. We do not ship modules that show signs of refurbishment, re-marking, or counterfeit indicators. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1769-OW16 compatible with my existing CompactLogix system and RSLogix 5000 / Studio 5000 project?
Yes. The 1769-OW16 is fully compatible with all 1769 Compact I/O backplane configurations and is natively supported in RSLogix 5000 and Studio 5000 Logix Designer without requiring additional add-on profiles (AOPs). It is backward-compatible with CompactLogix L1x through L3x controllers and MicroLogix 1500 systems. If you are replacing an existing 1769-OW16 in a running system, the module is hot-swappable on supported controller firmware revisions, minimizing process interruption during maintenance.

Q4: Can TOPNLMS support long-term or repeat procurement for MRO and spare-parts programs?
Absolutely. TOPNLMS maintains standing inventory of high-demand CompactLogix I/O modules, including the 1769-OW16, to support both emergency replacement orders and scheduled MRO procurement programs. We can provide lead-time commitments, volume pricing, and consolidated shipment arrangements for multi-site industrial customers. For facilities with critical uptime requirements, we recommend establishing a consignment or blanket-order agreement to ensure immediate availability when a field replacement is needed. Contact our team at [email protected] or +86 18359293191 to discuss your supply continuity requirements.
