Allen-Bradley 1769-OV32T Replacement for CompactLogix: Smooth Migration from Legacy DC Output Modules

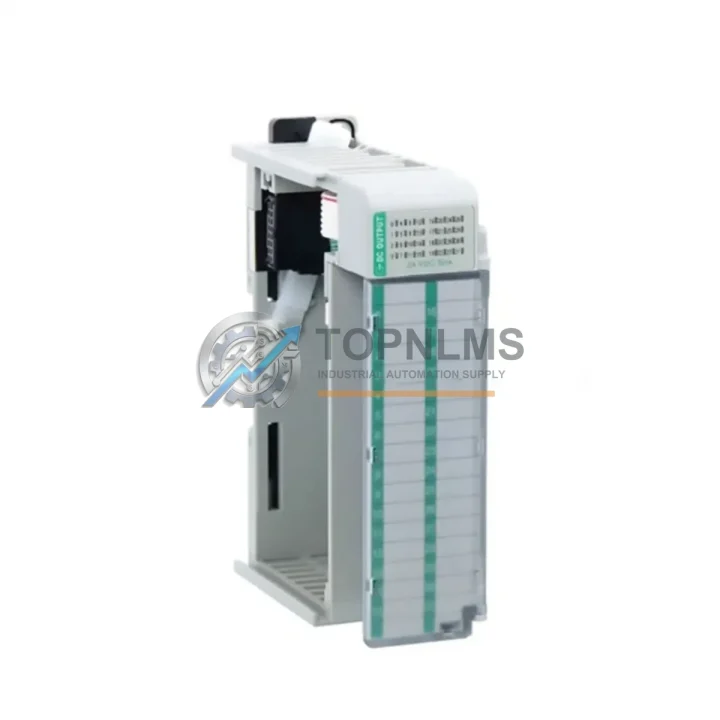

The Allen-Bradley 1769-OV32T is a 32-point, 24 VDC sourcing output module designed for the CompactLogix platform. Whether you are replacing a failed unit on an active production line, retiring an end-of-life 1769-series rack, or consolidating a legacy SLC 500 or MicroLogix control cabinet into a modern CompactLogix architecture, the 1769-OV32T delivers a verified drop-in upgrade path with minimal engineering rework.

TOPNLMS maintains ready stock of the 1769-OV32T sourced from authorized distribution channels. Every unit undergoes pre-shipment functional verification before dispatch from our Xiamen warehouse, and is covered by a 12-month replacement warranty. Orders placed before the daily cut-off are processed same day, with DHL Express, FedEx International Priority, and sea-freight consolidation available to match your project timeline and budget.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1769-OV32T rarely involves a single module swap. In practice, field engineers upgrading from SLC 500 or legacy CompactLogix configurations typically address several interconnected components in the same service window to avoid repeat downtime.

On the input side, the 1769-IQ32 32-point DC input module is the natural companion to the 1769-OV32T, sharing the same 1769 backplane slot and removable terminal block wiring standard. Migrating both I/O modules simultaneously ensures that the entire discrete I/O layer is standardized on the CompactLogix platform, eliminating mixed-generation wiring harnesses in the control cabinet.

For applications that previously relied on the 1769-OW8 relay output module for high-current or AC-load switching, the 1769-OV32T handles the 24 VDC solid-state output channels while the OW8 continues to serve relay-switched circuits — a common split-architecture approach in hybrid retrofit projects where not all field devices have been converted to DC control.

Communication modernization is often the primary driver behind CompactLogix migrations. Systems previously running on Data Highway Plus (DH+) or DH-485 networks require a 1769-L30ER or 1769-L33ER CompactLogix controller with an integrated EtherNet/IP port to replace the legacy 1747-L553 SLC 5/05 processor. The controller upgrade unlocks PROFINET bridging, CIP Safety, and high-speed motion coordination that legacy platforms cannot support.

Power supply compatibility is a critical checkpoint in any 1769 rack build. The 1769-PA4 or 1769-PB4 CompactLogix power supply must be sized to support the combined current draw of all installed 1769 modules, including the 1769-OV32T. Undersized power supplies are a leading cause of intermittent faults during commissioning of migrated systems.

For installations that previously used a 1747-SN Remote I/O scanner or a 1769-ADN DeviceNet adapter to connect distributed I/O, the migration to EtherNet/IP-based distributed I/O using a 1734 POINT I/O adapter (such as the 1734-AENT) provides a direct architectural upgrade path. The 1769-OV32T integrates natively into this architecture when hosted in a local 1769 rack connected to the CompactLogix controller.

Analog I/O channels that previously resided on 1746-NI4 or 1746-NO4I SLC analog modules are typically migrated to the 1769-IF4 or 1769-OF4 CompactLogix analog modules, which share the same 1769 backplane as the 1769-OV32T and are configured within the same Studio 5000 project file.

Finally, for sites that require a programming connection during commissioning or field troubleshooting, the 1784-U2DHP USB-to-DH+ adapter or the 1761-CBL-PM02 RS-232 programming cable may still be needed to access legacy nodes on the same network segment during a phased migration, before the legacy controllers are fully decommissioned.

Retrofit Guidance FAQ

Q: Can I install the 1769-OV32T directly into an existing 1769 CompactLogix rack without rewiring?
A: Yes. The 1769-OV32T uses the standard 1769 removable terminal block (RTB). If you are replacing a 1769-OV32 or 1769-OV16 in the same rack, the RTB wiring is compatible and can be transferred directly. No rewiring of field devices is required for same-series replacements.

Q: What programming changes are needed when replacing a 1769-OV16 with a 1769-OV32T?
A: The module tag structure in Studio 5000 will reflect the expanded 32-point I/O map. Existing ladder logic referencing the original module’s output tags (O:x.Data) must be reviewed to confirm bit addressing is correct for the new 32-point layout. No changes to the controller’s EtherNet/IP configuration are required if the module occupies the same slot.

Q: Is the 1769-OV32T compatible with EtherNet/IP and CIP communication?
A: The 1769-OV32T is a local I/O module and communicates via the 1769 backplane to the CompactLogix controller. EtherNet/IP is the controller’s network protocol; the module itself does not require a separate network connection. CIP implicit messaging is handled automatically by the controller.

Q: Will the 1769-OV32T fit in the same physical cabinet space as the module it replaces?
A: The 1769-OV32T occupies a single 1769 backplane slot. If you are replacing a 1769-OV16 (also single-slot), the physical footprint is identical. If migrating from a 1746 SLC rack, a new 1769 rack and power supply must be installed, which requires cabinet space planning.

Q: How do I verify the 1769-OV32T is functioning correctly after installation?
A: Use Studio 5000 Logix Designer to go online with the controller and monitor the module’s output status bits in real time. Force individual output bits to verify field device response. Check the module’s LED indicators: the green RUN LED should be solid, and the red FLT LED should be off under normal operating conditions.

Warranty Assurance

Every 1769-OV32T shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes functional power-on testing, visual inspection of the backplane connector and terminal block interface, and verification of module firmware revision against the current Rockwell Automation product bulletin.

In the event of a warranty claim, TOPNLMS provides advance replacement dispatch within 2 business days of fault confirmation, minimizing production downtime. Our technical support team is available via email and phone to assist with installation verification, fault diagnosis, and compatibility confirmation before and after purchase.

Procurement documentation including commercial invoice, packing list, certificate of conformance, and country-of-origin declaration is provided with every shipment to support customs clearance and internal purchasing records.

For volume orders, blanket purchase agreements, and project-based procurement with staged delivery schedules, please contact our sales team directly to discuss lead times, pricing, and consignment stock arrangements.
